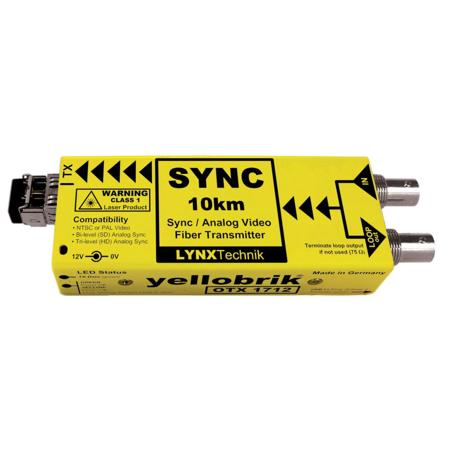

Lynx Technik AG yellobrik OTX 1712 Analog Sync/Video Fiber Optic Transmitter, Single Mode LC Connection

SKU: LTOTX1712LC MFR: OTX 1712-2 LC
Earn VIP Reward Points

Key Features

  • Transmit analog sync/video signals up to 10km with this fiber optic transmitter.
  • Ensure reliable video transmission with SMPTE 297M standards compliance.
  • This video transmitter features automatic multi-standard operation & auto-detect.
  • Enjoy easy setup with the yellobrik OTX 1712, supporting 8-24VDC input range.
  • Maintain high-quality video signals with low return loss up to 10MHz.
  • This affordable video transmitter supports NTSC, PAL, & tri-level sync signals.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OTX 1712 Specifications

  • Analog Input

    Sync: Analog black burst / SDTV bi-level / HDTV tri-level
    Video: NTSC / PAL composite video
    1x passive loop output (terminate if not used)
    75Ohms BNC connectors
    NTSC SMPTE 170M, PAL CCIR624
    Analog tri-level sync SMPTE ST 274, ST 276
    Multi-standard operation, auto-detect
    Return loss: 31dB to 10MHz

  • Fiber Out Single mode

    1x Fiber optic singlemode output LC connection
    SMPTE 297M - 2006
    Wavelength: 1310nm, Optical power -5dBm
    TX active LED on side of module
    Maximum distance: 10km (6.2 miles - approx.)

  • Power

    +12VDC at 3.4W nominal - ( supports 8 - 24VDC input range )

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F, 90% Humidity (non condensing)

  • Dimensions

    140 x 42 x 22mm / 5.51 x 1.65 x 0.87" including connectors

  • Weight

    125g / 4.41oz

  • UPC Code

    4250479323209

About Lynx Technik AG OTX 1712

Experience the precision and stability of the yellobrik OTX 1712 Analog Sync/Video Fiber Optic Transmitter, a state-of-the-art solution for professionals in the broadcast industry. This durable and high-quality device is engineered by Lynx Technik AG, a leader in audio and video equipment, to overcome the challenges of transmitting broadcast-grade analog reference and composite video signals over extensive distances.

The OTX 1712 stands out with its compact design and innovative technology that ensures the highest degree of sync and burst phase stability. This is crucial for maintaining impeccable synchronization between remote installations, making it an indispensable tool for reference sync distribution. Unlike basic analog to fiber converters, the OTX 1712 employs advanced mechanisms to preserve signal integrity during conversion and fiber transmission.

This reliable transmitter is adept at converting NTSC/PAL video signals into an SDI signal, inclusive of reference and other pertinent data, before the final conversion to fiber. When utilized with NTSC or PAL video sources, the OTX 1712 allows for the fiber signal to be directly converted to SDI using an appropriate SDI receiver, such as the ORX 1802, if needed. This feature provides flexibility and ease of integration into existing workflows.

Moreover, the OTX 1712 offers a passive loop output and supports a variety of single mode fiber connections including LC, ST, or SC. For versatility in application, an LC version compatible with multimode fiber is also available. This transmitter is the perfect choice for professionals seeking a reliable, high-bandwidth, and low-attenuation solution for long-distance video signal transmission. With the yellobrik OTX 1712, you can trust in a seamless, high-quality transmission experience that upholds the integrity of your video content.

Lynx Technik AG OTX 1712 Features

  • Supports analog black burst, bi-level, tri-level sync signals and NTSC and PAL composite video
  • Passive loop output
  • Broadcast quality performance
  • Error free optical transmission
  • Versions for LC, ST or SC fiber connections
  • Multimode version available
  • Up to 10km (6.2 miles) singlemode
  • Up to 300m (984 feet) multimode
  • Supports hot swapping and hot plugging
  • yelloGUI compatible to access additional internal settings

Product Documents

User Manual

Key Features

  • Transmit analog sync/video signals up to 10km with this fiber optic transmitter.
  • Ensure reliable video transmission with SMPTE 297M standards compliance.
  • This video transmitter features automatic multi-standard operation & auto-detect.
  • Enjoy easy setup with the yellobrik OTX 1712, supporting 8-24VDC input range.
  • Maintain high-quality video signals with low return loss up to 10MHz.
  • This affordable video transmitter supports NTSC, PAL, & tri-level sync signals.

What's in the box:

  • Lynx Technik AG yellobrik OTX 1712 Analog Sync/Video Fiber Optic Transmitter
  • 12V DC Power Supply
  • Lynx Technik AG 3 Year Warranty
