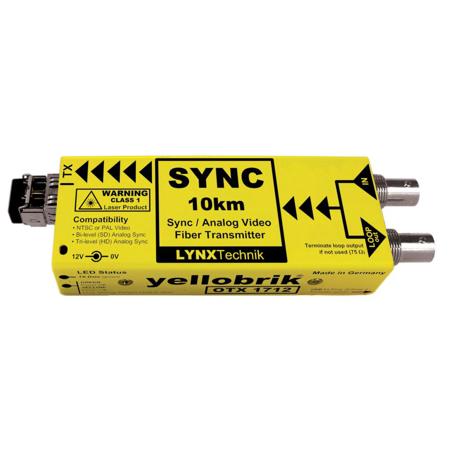

Lynx Technik AG yellobrik OTX 1712 Analog Sync/Video Fiber Optic Transmitter, Single Mode ST Connection

SKU: LTOTX1712ST MFR: OTX 1712-2 ST
Earn VIP Reward Points

Key Features

  • Transmit analog sync & video signals up to 10km with this fiber optic transmitter.
  • Ensure reliable video transmission with SMPTE 297M standards & ST connections.
  • This broadcast equipment auto-detects NTSC/PAL, simplifying multi-standard setups.
  • Get superior image quality with low latency, ideal for live streaming applications.
  • Compact yellobrik transmitter offers easy integration; perfect for OB vans & studios.
  • Enjoy peace of mind with our 3-year warranty on this durable video transmitter.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lynx Technik AG OTX 1712 Specifications

  • Analog Input

    Sync: Analog black burst / SDTV bi-level / HDTV tri-level
    Video: NTSC / PAL composite video
    1x passive loop output (terminate if not used)
    75Ohms BNC connectors
    NTSC SMPTE 170M, PAL CCIR624
    Analog tri-level sync SMPTE ST 274, ST 276
    Multi-standard operation, auto-detect
    Return loss: 31dB to 10MHz

  • Fiber Out Single mode

    1x Fiber optic singlemode output ST connection
    SMPTE 297M - 2006
    Wavelength: 1310nm, Optical power -5dBm
    TX active LED on side of module
    Maximum distance: 10km (6.2 miles - approx.)

  • Power

    +12VDC at 3.4W nominal - ( supports 8 - 24VDC input range )

  • Ambient Temperature

    5 to 40 deg. C / 41 to 104 deg. F, 90% Humidity (non condensing)

  • Dimensions

    140 x 42 x 22mm / 5.51 x 1.65 x 0.87" including connectors

  • Weight

    125g / 4.41oz

  • UPC Code

    4250479324152

About Lynx Technik AG OTX 1712

From professional studios to remote broadcast locations, the yellobrik OTX 1712 Analog Sync/Video Fiber Optic Transmitter stands as an advanced and reliable solution for high-quality, long-distance analog video signal transmission. This innovative device is engineered to overcome the challenges associated with distributing broadcast-grade analog reference and composite video signals over extensive distances, ensuring that your content maintains its integrity every step of the way.

Crafted with durability in mind, the OTX 1712 is a testament to Lynx Technik AG's commitment to producing cutting-edge audio and video equipment. Its compact design belies a powerful capability to preserve sync and burst phase stability, a feature that sets it apart from more basic analog to fiber conversion solutions. This meticulous attention to detail ensures that synchronization between remote installations remains precise and unaltered, a critical factor for professional video applications.

The OTX 1712 not only transmits standard NTSC/PAL composite video signals but also converts them into a digital SDI signal, inclusive of reference and other pertinent data, before the fiber optic transmission. This conversion process is pivotal for maintaining the high fidelity of the video signal over single-mode fiber connections. When used in conjunction with an SDI receiver, such as the ORX 1802, the system offers the flexibility to convert the fiber signal back to SDI if necessary, further enhancing its utility in a variety of professional settings.

Moreover, the OTX 1712 is equipped with a passive loop output and supports a single-mode ST connection, compatible with a broad spectrum of fiber optic cables. This versatility ensures seamless integration into existing setups and facilitates long-distance transmissions without signal degradation. An LC version is also available for those requiring compatibility with multimode fiber, broadening the range of potential applications.

In summary, the yellobrik OTX 1712 is the transmitter of choice for industry professionals who demand the utmost in signal stability and quality. Its advanced technology and compatibility with various fiber optic standards make it an indispensable tool for maintaining synchronization across vast distances, solidifying its position as a superior alternative in the realm of analog video transmission.

Lynx Technik AG OTX 1712 Features

  • Supports analog black burst, bi-level, tri-level sync signals and NTSC and PAL composite video
  • Passive loop output
  • Broadcast quality performance
  • Error free optical transmission

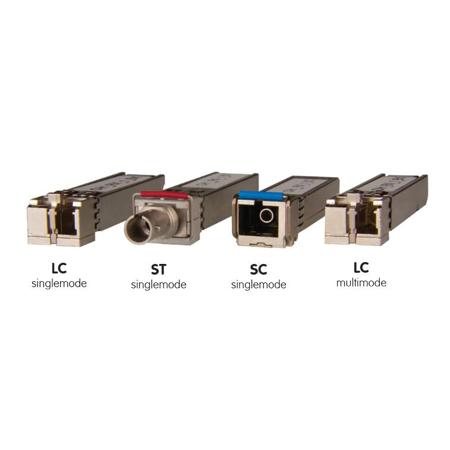

  • Versions for LC, ST or SC fiber connections
  • Multimode version available
  • Up to 10km (6.2 miles) singlemode
  • Up to 300m (984 feet) multimode
  • Supports hot swapping and hot plugging
  • yelloGUI compatible to access additional internal settings

Product Documents

User Manual

Key Features

  • Transmit analog sync & video signals up to 10km with this fiber optic transmitter.
  • Ensure reliable video transmission with SMPTE 297M standards & ST connections.
  • This broadcast equipment auto-detects NTSC/PAL, simplifying multi-standard setups.
  • Get superior image quality with low latency, ideal for live streaming applications.
  • Compact yellobrik transmitter offers easy integration; perfect for OB vans & studios.
  • Enjoy peace of mind with our 3-year warranty on this durable video transmitter.

What's in the box:

  • Lynx Technik AG yellobrik OTX 1712 Analog Sync/Video Fiber Optic Transmitter
  • 12V DC Power Supply
  • Plastic Transport Case
  • Lynx Technik AG 3 Year Warranty
