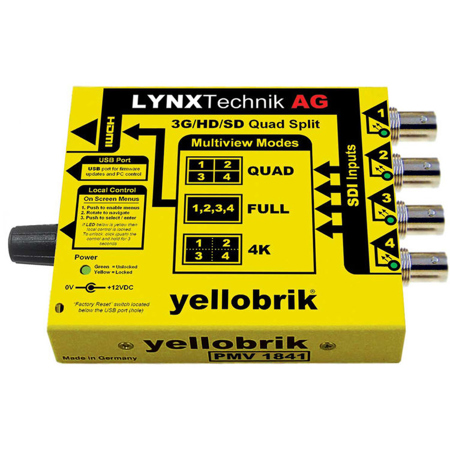

Lynx Technik AG PMV 1841 3G SDI to HDMI Quad-Split Multiviewer with 4K Monitoring

The PMV 1841 is a compact quad split multiviewer ideal for applications needing basic quad split multiview capability into an HDMI monitor. Four SDI inputs are supported with a single HDMI output.

• 4 x SDI inputs and 1 x HDMI output
• Support for 3G/HD/SD -SDI formats (auto-detect)
• Full Screen, Quad Split and 4K (12G) monitoring modes
• Integrated local control and on screen menus
• Input present LEDs for each SDI input
• 4K (12G) monitoring mode (down converted HD HDMI output)
• yelloGUI compatible for PC/MAC control

The module has three basic modes of operation:
Quad Split
All four inputs are arranged into a fixed quad display. Each input can have the monitoring tools (or on screen overlays) individually configured.

Full Screen
One of the four inputs is displayed full screen with the user configured monitoring tools. In this mode 2 channels embedded audio from the selected SDI input is embedded into the HDMI output.

4K Monitoring
The module can be used to monitor 4K (12G) signals. The four SDI inputs are "stitched" together to make a full frame for monitoring. The 4K image is down converted to HD for display (4K monitor not required). The module is simple to setup and configure using the integrated local control and on screen menu system. All settings are automatically stored in flash RAM. USB is port is provided for firmware updates and also PC/MAC control using the yelloGUI application.

On Screen Monitoring Tools
The extensive on screen monitoring tools are what really sets the PMV 1841 apart from the rest. Despite the very compact size and low price they have included many high end monitoring tools typically only found in larger multiviewer systems. These include:

• Waveform Monitor
• Vectorscope
• Auto Level Meters (Up to 16 Channels)
• IMD - In Monitor Display (text ID)
• Safe Area Markers
• 4:3 Extraction Markers
• Center Cross Marker
• Video Standard
• Time Code
• Audio and Video Alarms

Each of the four inputs can be individually configured to meet specific monitoring requirements for the application and all of the on screen tools are easily controlled using the integrated menu system and rotary push encoder. The on screen menu system is intuitive and simple to use and all settings are automatically stored in flash RAM. The module is also fully compatible with the yelloGUI software and the module can also be fully controlled and configured via the USB port using a PC or MAC.
