This item is no longer available.

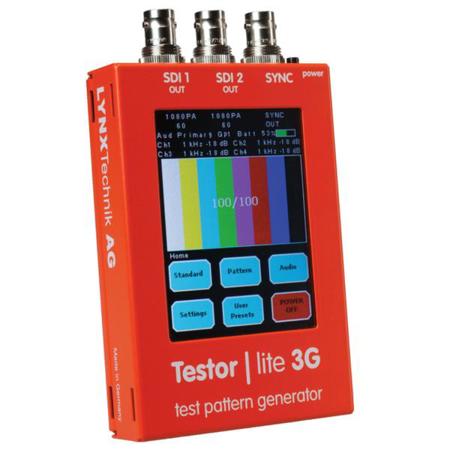

Testor lite 3G is a compact SDI video and audio test generator designed to address a multitude of test and verification needs in modern digital infrastructures. The large color touch-screen provides a simple, intuitive user interface and the integrated rechargeable battery will provide for up to 4 hours of continuous use. External power / charge is provided via the USB port.
When connected to a standard USB 2.0 port the Testor lite 3G will draw 500mA (max) to charge battery. (if the unit is powered while connected to a USB 2.0 port then it will use the internal battery and is not charging) Charge time 360 minutes approx. (from empty) when connected to standard USB 2.0 port (i.e. computer) with Testor lite 3G switched off
If connected to the USB-DCP power supply (included) then the unit can be powered and charged simultaneously. (1.5A).Charge times (from empty):
• 100 minutes approx. with unit switched off
• 180 minutes approx. with unit switched on
EBU A/V Sync Pattern
This dynamic pattern is unique to the Testor and can be used to verify a number of video and audio performance issues within a modern digital broadcast infrastructure. Click for an animated demo and more information on this pattern.
