Lumantek Bat-Series Analogue to HD/SD/SDI Mini-Converter
Lumantek Converter: Picture 1 thumbnail
Lumantek Converter: Picture 2 thumbnail
Lumantek Converter: Picture 3 thumbnail
Lumantek Converter: Picture 4 thumbnail
Lumantek Converter: Picture 5 thumbnail
Lumantek Converter: Picture 6 thumbnail
Lumantek Converter: Picture 7 thumbnail
Lumantek Converter: Picture 8 thumbnail
Lumantek Converter: Picture 9 thumbnail
See all Lumantek items

Lumantek BAT-Series Analogue to HD/SD/SDI Mini-Converter

SKU: LUMBATAS MFR: BAT-AS
Be the first to review this itemAsk a Question
$189.00
Earn VIP Reward Points

Key Features

  • Easily convert analog video to HD/SD-SDI with this format converter for reliable streaming.
  • Achieve high-resolution video output with 12-bit video ADC for superior image quality today.
  • Supports multiple video formats, including 1080p, ensuring format support for your needs.
  • Enjoy easy setup with this mini-converter, perfect for on-the-go video production setups now.
  • Experience low latency video conversion, ideal for live streaming and broadcasting events today.
  • Rely on this SDI converter for seamless integration with professional video equipment today.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$17.99

3 Year

$27.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Lumantek Converter Specifications

  • Supported Video Formats

    720(1440) x 480i at 59.94/60, 720(1440) x 576i at 50
    1280 x 720p at 50, 1280 x 720p at 59.94/60
    1920 x 1080i at 50, 1920 x 1080i at 59.94/60
    1920 x 1080p at 23.94/24, 1920 x 1080p at 25, 1920 x 1080p at 29.97/30

  • Video Inputs

    HD Component (YPbPr) or SD Component/Composite/S-Video, 3x BNC

  • Video Outputs

    SMPTE-259/272/274/292/296/299 HD/SD-SDI with embedded audio outputs, 1 x BNC

  • Audio Outputs

    2 channels unbalanced, 2x RCA

  • Video ADC

    12-Bits

  • Audio ADC

    24-Bits, 48kHz

  • Power Adapter

    Input : 100V - 240V, 50/60Hz / Output : +12V DC, 2.0A

  • Input Power Range

    7-15V

  • Power Consumption

    3W Max

About Lumantek Converter

Our innovative BAT Series line of mini converters offer superior signal quality with the lowest SDI jitter. The BAT Series is a versatile and feature-packed solution for your project and budget requirements. Based on your conversion needs, there are four models to choose from supporting a full range of SDI (3G/HD/SD), HDMI and Analog Composite/Component options.

• Auto detection mode (HD/SD)
• Component (YPbPr) or Composite (CVBS or S-Video) input
• HD/SD-SDI output x1 [BNC 75Ohms]
• Supports analog stereo audio output (Left RCA : White, Right RCA : Red)
• Selectable luminance range(0-255/16-235) by DIP switch
• Selectable HD/SD color space conversion by DIP switch

Long Signal Strength
Deliver HD SDI signals up-to 200m.

Wide Range Power Input (7-18V)
HD Professional HD cameras utilize various types of power inputs and BAT-Mini-converter can support power input from 7V to 18V.

Compatibility
Smoothly working together with other brand mini-converters.

Audio Sampling
Audio sampling rate conversions ( 16-192KHz to 48KHz )

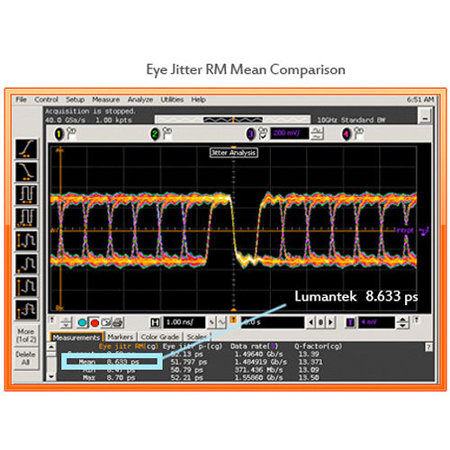

Superior Signal Quality with Low-Jitter
Lumantek Bat Mini-Converters offer superior quality signal with the lowest SDI jitter, which enables users to enjoy long SDI Cable lengths with internal power supplies for extremely low noise broadcast analogue video and audio signal. Cable lengths with internal power supplies for extremely low noise broadcast analogue video and audio signal

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Easily convert analog video to HD/SD-SDI with this format converter for reliable streaming.
  • Achieve high-resolution video output with 12-bit video ADC for superior image quality today.
  • Supports multiple video formats, including 1080p, ensuring format support for your needs.
  • Enjoy easy setup with this mini-converter, perfect for on-the-go video production setups now.
  • Experience low latency video conversion, ideal for live streaming and broadcasting events today.
  • Rely on this SDI converter for seamless integration with professional video equipment today.

What's in the box:

  • Lumantek Bat-Series Analogue to HD/SD/SDI Mini-Converter
  • Power Cable
  • Lumantek 3 Year Warranty
