Lumantek ez-Pro VM6 6-Channel 6x4 Seamless Matrix Switcher with Fill/Key Support and Black Console

SKU: LUMEZPROVM6 MFR: EZ-PRO VM6
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 6 SD/HD-SDI video inputs with this matrix switcher.
  • Achieve professional broadcasts with fill/key support for dynamic graphics.
  • Enjoy reliable video distribution to 5 SDI outputs, plus HDMI multiview.
  • Easily manage your video matrix via front panel controls or USB GUI app.
  • Experience low latency switching for live events and critical applications.
  • This affordable video switcher supports resolutions up to 1080i for crisp visuals.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$99.99

3 Year

$119.99

4 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lumantek ez-Pro VM6 Specifications

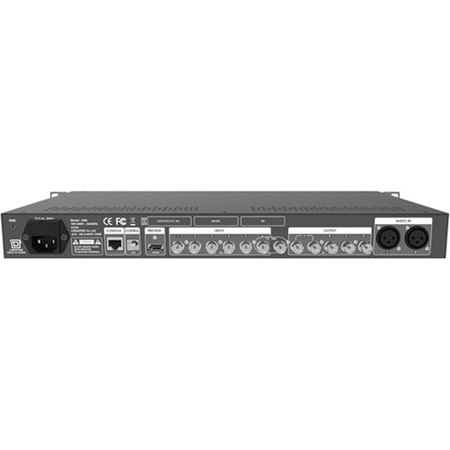

  • Video Input

    6x SD/HD-SDI(BNC 75Ohms)

  • Fill Input

    1x SD/HD-SDI(BNC 75Ohms)

  • Key Input

    1x SD/HD-SDI(BNC 75Ohms)

  • Audio Input

    2x Stereo XLR

  • Video Output

    5x SD/HD-SDI(BNC 75Ohms) (Ax2, Bx1, Cx1, Dx1)

  • Multiview Output

    1x HDMI, (1080P at 60/50, 720p at 60/50, 576P at 50, 480P at 60)

  • Internal Processing

    4:2:2 10bit

  • Resolution supported

    1920 x 1080i at 59.94/60/50
    1280 x 720p at 59.94/60/50
    720 x 576i at 50 (625i)
    720 x 480i at 59.94 (525i)

  • Management

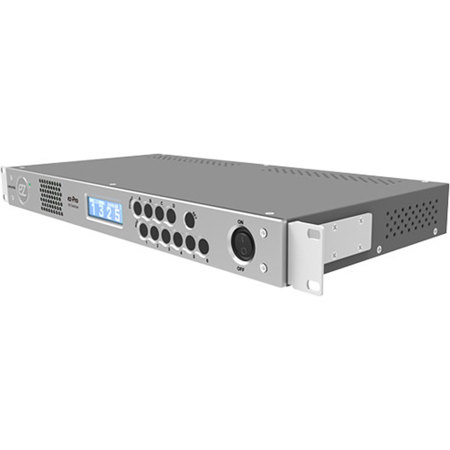

    Control Buttons at Front: 6x Input select, 4x Output select, 1x Menu select
    LCD at Front: Status & Control
    LED at Front: Easy to Identify Device Status
    USB at Rear: Easy to use GUI application, Firmware Update

  • Power Input

    115-240VAC at 50/60Hz

  • Power Consumption

    30W(max.)

  • Operation Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions(HxWxD)

    Excluding Connectors: 44x483x240

  • Weight

    3.1kg (6.83 lbs)

About Lumantek ez-Pro VM6

Discover the power and versatility of the ez-Pro VM6 6-Channel 6x4 Seamless Matrix Switcher, a game-changer in live production technology. This high-definition SDI Video Switcher is designed to enhance your live events, from concerts and conferences to worship services, with its seamless video switching capabilities.

The ez-Pro VM6 stands out for its user-friendly interface, requiring just 10 minutes to master. This makes it an ideal choice for users of all skill levels, from novices to seasoned professionals.

One of the key features of this 6x4 Matrix Switcher is its Fill/Key Support, which provides a cost-effective solution for applying Computer Graphics (CG) in live settings. This feature, combined with its seamless video switching, allows for smooth transitions and high-quality visuals, elevating the viewer's experience.

The ez-Pro VM6 also comes with a sleek black console, which is not only compact but also adds a touch of sophistication to your setup. This HD-SDI Video Switcher is not just about functionality, but also about style and convenience.

In summary, the ez-Pro VM6 6-Channel 6x4 Seamless Matrix Switcher with Fill/Key Support and Black Console offers a blend of simplicity, efficiency, and quality, making it an excellent value for your investment in live production equipment.

Lumantek ez-Pro VM6 Features

  • HD-SDI 6Ch Input / 4Ch Matrix Output
  • Extra HDMI Multiview Output (Preview is available)
  • Seamless Channel Switching
  • Synchronization of input Signal and then Output the Signal
  • External Audio Muxing (XLR, L/R support)
  • Various effects
  • Fill / Key (CG) Support
  • Remote Controller
  • Intuitive Controller Interface
  • T-bar (Support Fader Effect )
  • Power & Control Support using RJ45 connector
  • Various Effects (CUT. MIX, WIPE)
  • External Audio Application Key
  • Instant External CG Application

Key Features

  • Seamlessly switch between 6 SD/HD-SDI video inputs with this matrix switcher.
  • Achieve professional broadcasts with fill/key support for dynamic graphics.
  • Enjoy reliable video distribution to 5 SDI outputs, plus HDMI multiview.
  • Easily manage your video matrix via front panel controls or USB GUI app.
  • Experience low latency switching for live events and critical applications.
  • This affordable video switcher supports resolutions up to 1080i for crisp visuals.

What's in the box:

  • Lumantek ez-Pro VM6 6x4 Seamless Matrix Switcher with Fill/Key Support
  • Console
  • Lumantek 1 Year Limited Warranty
