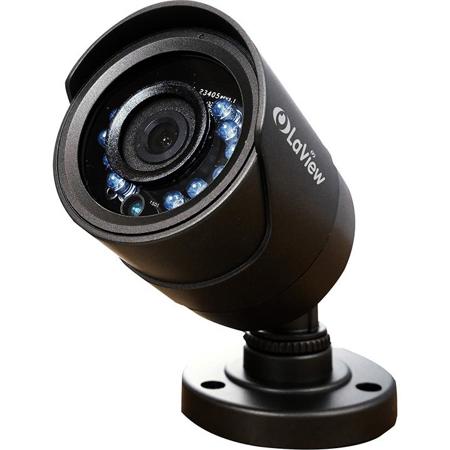

LaView LV-KDV1804B6BP 8 Channel 960H DVR and 4 x 600TVL Day/Night Indoor/Outdoor Cameras Security System, 500GB HDD, 65' IR Range

SKU: LVKDV1804B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Richard J : It similar to my LaView system 4 station in my home that works perfect for years.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

LaView LV-KDV1404B6BP Specifications

  • Camera: Image Sensor

    1/3" sensor

  • Camera: Signal System

    NTSC/PAL

  • Camera: Effective Pixels

    720 (H) x 480 (V)

  • Camera: Min. Illumination

    0.1 Lux at (F1.2,AGC ON),0 Lux with IR

  • Camera: Shutter speed

    PAL: 1/25 s to 1/15,000s
    NTSC: 1/30s to 1/15,000s

  • Camera: Lens

    3.6mm
    Angle of view: 68.4deg.

  • Camera: Lens Mount

    M12

  • Camera: Angle Adjustment

    Pan: 0 - 360deg., Tilt: 0 - 90deg., Rotation: 0 - 360deg.

  • Camera: Day & Night

    IR cut filter with auto switch

  • Camera: Horizontal Resolution

    600 TVL

  • Camera: Synchronization

    Internal synchronization

  • Camera: Video Output

    1Vp-p composite output (75Ohm/BNC)

  • Camera: S/N Ratio

    More than 52 dB

  • Camera: Working Temperature/Humidity

    -40 deg.C - 60 deg.C (-40 deg.F - 140 deg.F)Humidity 90% or less (non-condensing)

  • Camera: Power Supply

    12 V DC

  • Camera: Power Consumption

    Max. 2 W(Max. 5 W with IR cut filter on)

  • Camera: Ingress Protection

    IP66

  • Camera: IR Range

    65'(19.81m)

  • DVR-Video/Audio Input: Video compression

    H.264

  • DVR-Video/Audio input: Video input

    8-ch

  • DVR-Video/Audio I/P: Video I/P interface

    BNC (1.0 Vp-p, 75 Ohm), PAL / NTSC self-adaptive

  • DVR-Video/Audio input: Audio compression

    G.711u

  • DVR-Video/Audio input: Audio input

    1-ch, RCA (2.0 Vp-p, 1 kOhm)

  • DVR-Video/Audio input: Two-way audio I/P

    1-ch, RCA (2.0 Vp-p, 1 kOhm) (using the audio input)

  • DVR-Video/Audio output: HDMI/VGA output

    1-ch, resolution: 1080P: 1920x1080/60Hz; SXGA: 1280x1024/60Hz; 720P: 1280x720/60Hz; XGA: 1024x768/60Hz

  • DVR-Video/Audio output: CVBS output

    1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: NTSC: 704 x 480, PAL: 704 x 576,

  • DVR-Video/Audio O/P: Encoding resolution

    WD1 / 4CIF / 2CIF / CIF / QCIF

  • DVR-Video/Audio output: Frame rate

    WD1 / 4CIF / 2CIF at 15 fps;CIF / QCIF at 30 fps (N)

  • DVR-Video/Audio output: Video bit rate

    32Kbps-3072Kbps,or use defined(Max.3072Kbps)

  • DVR-Video/Audio output: Audio output

    1-ch, RCA (Linear, 1 kOhm)

  • DVR-Video/Audio output: Audio bit rate

    64 Kbps

  • DVR-Video/Audio output: Dual-stream

    Support;Sub-stream at CIF / QCIF

  • DVR-Video/Audio output: Stream type

    Video, Video & Audio

  • DVR-Video/Audio o/p: playback

    Synchronous: 4-ch

  • DVR-Hard disk: SATA

    1 SATA interface

  • DVR-Hard disk: Capacity

    500GB

  • DVR-External Interface: Network

    1, RJ45 10M / 100M Ethernet interface

  • DVR-External Interface: Serial

    1 RS-485 interface, half-duplex

  • DVR-External Interface: USB

    2, USB2.0

  • DVR: Power supply

    12 VDC

  • DVR: Consumption

    = 10 W

  • DVR: Working temperature

    -10 deg.C - +55 deg.C

  • DVR: Working humidity

    10% - 90%

  • DVR: Chassis

    Standalone 1U chassis

  • Dimensions

    DVR: 315 x 230 x 45mm / 12.40 x 9.05 x 1.77"
    Camera: 70 x 149.5mm / 2.75 x 5.88"

  • Weight

    DVR: 2kg / 4.40 lbs (without hard disk or DVD-R/W)
    Camera: 300 g (10.58 oz)

  • UPC Code

    849897001901

About LaView LV-KDV1404B6BP

The LaView LV-KDV1804B6BP 8 Channel 960H DVR and 4 x 600TVL Day/Night Indoor/Outdoor Cameras Security System offers the ultimate durability to effectively operate in any temperature ranging from -40deg.F to 140deg.F indoors or outdoors. Its strong housing and fully integrated technology allows it to properly function whether it's mounted in the snow, rain, or under the scorching sun. 960H provides 34% higher resolution than D1 and offers high definition quality video both in real-time recording, viewing and playback. Output 2 independent bit streams: Main and Sub Stream. The resolution, frame rate, bit rate and other parameters of output bit stream can be set independently and meet different demands simultaneously.

1080P HDMI/VGA
DVR features both a VGA and 1080P HDMI outputs for high definition viewing.

960H Advancement
960H is the new analog technology. It provides the highest resolution video images using advanced image sensors. Security cameras and DVRs capable of 960H produce images sizes at 960x576, which are 34% larger than D1 resolution and over 450% larger than CIF resolution.

Simultaneously View and Record All Cameras
With 4 high resolution 600TVL cameras included, you can receive optimal coverage of your business or home all at once. This system offers 960H high resolution displaying larger images than D1. With greater viewing area and playback resolution, it's the better solution in protecting your business or home.

Infrared Cut Auto Switch
IR cut filters are great for blocking unwanted side effects caused by infrared lights during the day while still providing clear night vision images.

Control at your Fingertip
Simply connect to the internet, then use the free LaView SkyView Cam app for 3G Smartphones to view live video anytime, anywhere. Its user-friendly interface and functions have been designed to help you feel secure wherever life takes you. For moments you don't want to miss, custom set email alerts when motion is detected. With each device you can view one or two cameras at the same time.

Easy Set Up
Set up your surveillance system easily with Quick Start Guide. The intuitive interface is designed to help you easily custom set your system. It's easy to install with a user-friendly menu. Feel safe and secure that footage will be readily available for you to view, record and playback anytime, anywhere.

Day and Night Protection with Infrared LED Vision
Automatic infrared LED technology allows you to monitor your business or home 24/7. The infrared LEDs activates when it's dark or low light to display black and white night vision capability up to 90 feet. High resolution 600 TVL sensors provide clear images, even in the dark.

Easy Back Up Option
This DVR allows you to customize the resolution and frame rate with options including D1 real time recording with optimal resolution playback at 30 frames per second. Easily transfer back up data onto any USB flash drive and transfer to a PC.

What's in the box:

  • LaView 960H H.264 Digital Video Recorder
  • 4 x High Resolution 600TVL Cameras
  • USB Mouse
  • 4 x Premade 60' Siamese Cable to Connect Cameras to DVR
  • Power Adaptor
  • 1-5 Splitter Cable
  • Remote Control (Batteries not Included)
  • User Manual
  • CD Software
  • 2 x Security Sticker
  • LaView 1 Year Limited Warranty
