LaView LV-KDV2804W1 Security System, Includes 960H DVR, Cameras, White
See all LaView items

LaView LV-KDV2804W1 Compact Security System, Includes 960H 8-Channel H.264 Digital Video Recorder, 4x 1.3MP Cameras, Mouse, Cables, Adaptor, White

SKU: LVKDV2804

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

LaView LV-KDV2804W1 Specifications

  • Camera (LV-CBA3213): Image Sensor

    1/3" sensor

  • Camera (LV-CBA3213): Signal System

    NTSC/PAL

  • Camera (LV-CBA3213): Effective Pixels

    1280 (H) x 960 (V )

  • Camera (LV-CBA3213): Min. Illumination

    0.1 Lux at (F1.2,AGC ON),0 Lux with IR

  • Camera (LV-CBA3213): Shutter speed

    PAL: 1/25 s to 1/15,000 s
    NTSC: 1/30 s to 1/15,000 s

  • Camera (LV-CBA3213): Lens

    3.6mm at F2.3
    Angle of view: 73.1 deg.

  • Camera (LV-CBA3213): Lens Mount

    M24

  • Camera (LV-CBA3213): Angle Adjustment

    Pan: 0 - 360 deg. , Tilt: 0 - 90 deg. , Rotation: 0 - 360 deg.

  • Camera (LV-CBA3213): Day & Night

    IR cut filter with auto switch

  • Camera(LVCBA3213): Horizontal Resolution

    1.3MP

  • Camera (LV-CBA3213): Synchronization

    Internal synchronization

  • Camera (LV-CBA3213): Video Output

    1Vp-p composite output (75 Ohms/BNC)

  • Camera (LV-CBA3213): S/N Ratio

    More than 52dB

  • Camera(LVCBA3213): Working Temp/Humidity

    -40 deg. C to 60 deg. C (-40 deg. F to 140 deg. F)Humidity 90% or less (non-condensing)

  • Camera (LV-CBA3213): Power Supply

    12V DC

  • Camera (LV-CBA3213): Power Consumption

    Max. 1.5W(Max. 5W with IR cut filter on)

  • Camera (LV-CBA3213): Ingress Protection

    IP66

  • Camera (LV-CBA3213): IR Range

    100' / 30.48m

  • DVR (LV-D1104CW): Video Compression

    H.264

  • DVR (LV-D1104CW): Video Input

    8-channel

  • DVR (LV-D1104CW): Video Input Interface

    BNC (1.0 Vp-p, 75 Ohms), PAL / NTSC self-adaptive

  • DVR (LV-D1104CW): Audio Compression

    G.711u

  • DVR (LV-D1104CW): Audio Input

    1-ch, RCA (2.0 Vp-p, 1 kOhms)

  • DVR (LV-D1104CW): Two-Way Audio Input

    1-ch, RCA (2.0 Vp-p, 1 kOhms) (using the audio input)

  • DVR (LV-D1104CW): HDMI / VGA Output

    1-ch, resolution: 1080P: 1920x1080/60Hz; SXGA: 1280x1024/60Hz; 720P: 1280x720/60Hz; XGA: 1024x768/60Hz

  • DVR (LV-D1104CW): CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ohms), resolution: NTSC: 704 x 480, PAL: 704 x 576,

  • DVR (LV-D1104CW): Encoding Resolution

    WD1 / 4CIF / 2CIF / CIF / QCIF

  • DVR (LV-D1104CW): Frame Rate

    25 FPS (P) / 30 FPS (N)

  • DVR (LV-D1104CW): Audio Output

    1-ch, RCA (Linear, 1 kOhms)

  • DVR (LV-D1104CW): Audio Bit Rate

    64Kbps

  • DVR (LV-D1104CW): Dual-Stream

    Support;Sub-stream at CIF / QCIF

  • DVR (LV-D1104CW): Stream Type

    Video, Video & Audio

  • DVR (LV-D1104CW): Synchronous Playback

    8-channel

  • DVR (LV-D1104CW): Sata

    1 SATA interface

  • DVR (LV-D1104CW): Capacity

    Up to 4TB capacity

  • DVR (LV-D1104CW): Network Interface

    1, RJ45 10M / 100M Ethernet interface

  • DVR (LV-D1104CW): Usb Interface

    2, USB2.0

  • DVR (LV-D1104CW): Power Supply

    12VDC

  • DVR (LV-D1104CW): Consumption

    = 5W

  • DVR (LV-D1104CW): Working Temperature

    -10 deg. C to +55 deg. C / 14 deg. F to 131 deg. F

  • DVR (LV-D1104CW): Working Humidity

    10% - 90%

  • DVR (LV-D1104CW): Chassis

    Standalone 1U chassis

  • Dimensions

    Camera (LV-CBA3213): 2.76 x 5.89" / 7.01 x 14.96cm
    DVR (LV-D1104CW): 7.87 x 7.87 x 1.77" / 200 x 200 x 45mm

  • Weight

    Camera (LV-CBA3213): 0.66lbs / 0.29kg
    DVR (LV-D1104CW): 1.76lbs / 0.8kg (without hard disk or DVD-R/W)

  • UPC Code

    849897001949

About LaView LV-KDV2804W1

The LaView LV-KDV2804W1 Compact Security System includes 960H H.264 Digital Video Recorder, 4x High Resolution 1.3MP Cameras, USB Mouse, 4x Premade Siamese cable to connect cameras to DVR, Power adaptor, 1-8 Splitter Cable, User Manual, CD Software and Security Stickers.

High Definition Viewing
View your cameras in high definition 1080p resolution. This 960H DVR offers higher resolution in both realtime recording, viewing and playback.

Superior 1.3 Image Quality
The highest resolution in analog, 1.3MP gives you superior life like resolution with up to 100' of night vision.

960H Advancement
960H displays image size at 960x480 wide screen viewing. It provides the highest resolution video images, which is 34% larger than D1 resolution and over 450% larger than CIF resolution.

Super Quiet
SHHH? with innovation that secures, this unit uses advanced technology to keep the system cool with no fan needed allowing the system to run 24/7 quietly. Have a peace of mind and quiet, with this stylish compact DVR.

Best Overall Coverage
This camera offers day and night protection with analog's highest 1.3MP superior resolution. It also sees up to 100' in the dark with best overall coverage and clarity.

Speak and Be Heard
Connecting your DVR to an HDMI cable will not only offer 1080p high definition viewing, but will also allow audio out so your voice can be heard when connected remotely through your mobile device.

Infrared Cut Auto Switch
IR cut filters are great for blocking unwanted side effects caused by infrared lights during the day while still providing clear night vision images.

Save Time, Save Space, Record Longer
LaView offers a pre-installed 1TB surveillance hard drive that is more efficient and more reliable. Surveillance HDD produces lower heat and can run 24/7. With 960H H.264 compression, it allows more storage space for long term protection without compromising the picture quality.

SkyView Cam
Simply download SkyView Cam or SkyView Cam HD to view live video anytime, anywhere. Its user-friendly interface and functions have been designed to help you feel secure wherever life takes you. For moments you don't want to miss, custom set email alerts when motion is detected and view up to 16 cameras remotely!

Easy Set Up
Set up your surveillance system easily with the Quick Start Guide. The intuitive interface is designed to help you easily custom set your system. It's easy to install with a user-friendly menu. Feel safe and secure that footage will be readily available for you to view, record and playback anytime, anywhere.

Cables and More
Everything you need to set up your system including four pre-made Siamese cables that helps you connect up to 60' of extended distance.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

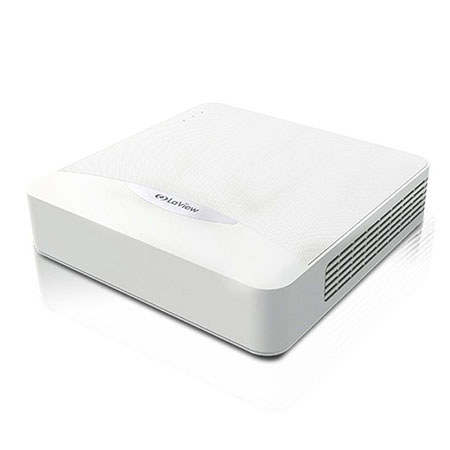

  • LaView 960H H.264 Digital Video Recorder
  • 4x High Resolution 1.3MP Cameras
  • USB Mouse
  • 4x Premade 60' Siamese Cable to Connect Cameras to DVR
  • Power Adaptor
  • 1-8 Splitter Cable
  • User Manual
  • CD Software
  • 2x Security Sticker
  • LaView 1 Year Limited Warranty
