Lowell Manufacturing IM12P-TS100-3SW Speaker System, Includes 12P150 12" 150W Driver, TLS-10070 70V Transformer, 3 Cubic Foot Square Enclosure

Under the umbrella of high-performance audio equipment, the IM12P-TS100-3SW Speaker System stands out as a superior choice for suspended installations. This ready-to-install loudspeaker system is designed with a 12" 150W driver, a TLS-10070 70V transformer, and a 3 cubic foot acoustic enclosure, all encased in a stylish white grille.

This system is perfectly tailored for high-ceiling, high-energy environments such as clubs and bars, sports facilities, concourses, hotel ballrooms, and exhibit halls. The 12P150 driver, an 8-ohm, 150W component, boasts a robust motor structure, a hefty 38 oz. magnet, and a 2" voice coil. It also features a coaxially mounted high-frequency compression driver, ensuring high power handling with exceptional efficiency.

The driver is protected by a steel plate during shipping and installation, which can be removed to mount the grille. The TLS-10070 transformer, a 70V 100W component, ensures superior music fidelity in 70V distributed applications. This transformer, part of the Lowell 20/20 AudioVision series, offers true 20Hz-20kHz performance.

The speaker system also includes a screwdriver-adjustable tap selector switch, accessible behind the grille. Lowell's 20/20 AudioVision transformers are known for their full frequency response and high power handling, allowing the speaker to operate at full potential while providing a stable load to the amplifier.

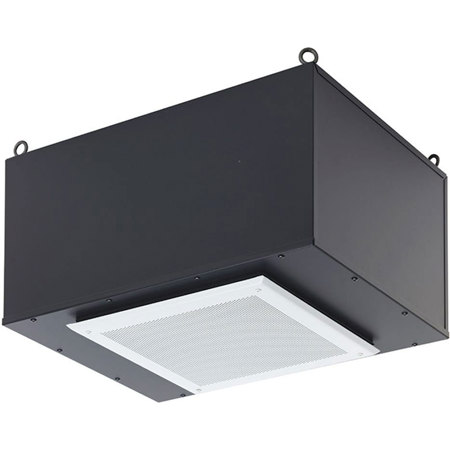

The system's square perforated steel grille, finished in white powder epoxy, is ideal for installations where the speaker is suspended in a tile, sheetrock, or plaster ceiling. The 3 cubic foot precision-formed steel enclosure features anti-vibration ribs, a sound-stop board, and a 1-1/2" thick premium acoustic lining.

For secure suspended installation, the system includes forged 1/4"-20 eyebolts screwed into mounting nuts. Externally accessible connections are terminated through a 4" x 4" flush cover plate, finished in black powder epoxy.

For plenum spaces with limited height, a 2 cubic foot enclosure option is also available. The IM12P-TS100-3SW Speaker System, with its high-quality components and efficient design, is a reliable choice for those seeking superior sound distribution.
