Lowell Manufacturing UPS6-350LI Ultra-Slim & Lightweight UPS with Lithium Battery, Includes 2x Mounting Brackets

SKU: LW6350LI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the UPS6-350LI Ultra-Slim & Lightweight UPS with Lithium Battery unique?

The UPS6-350LI stands out with its ultra-slim and lightweight design, lithium battery technology, and high operating efficiency. It's ideal for spaces where traditional UPS systems don't fit, and it's designed for a variety of applications including video walls, PoE switches, PLCs, kiosks, gaming machines, and POS equipment.

What is the function of the Battery Management System in the UPS6-350LI?

The Battery Management System in the UPS6-350LI ensures cell voltage balancing and parallel current sharing. It also provides protection from overcharge and discharge, ensuring the longevity and reliability of the battery.

What does the plug-and-play functionality of the UPS6-350LI mean?

The plug-and-play functionality means that the UPS6-350LI is user-friendly and ready to start backing up your equipment as soon as it's fully charged. It does not require complex setup or configuration.

What happens when the UPS6-350LI discharges fully?

In the event of a full battery discharge, the UPS6-350LI automatically restarts when utility power returns. This ensures a seamless operation and continuous power supply.

What does the package of the UPS6-350LI include?

The UPS6-350LI package includes the UPS unit, a detachable power cord, and two mounting brackets. An optional offset cord is also available.

Reviews about this item

Review Summary

Lowell Manufacturing UPS6-350LI Specifications

Capacity

Capacity

Jump to...
  • Power rating

    350VA (200W)

  • Voltage

    120VAC

  • Frequency

    50/60Hz

  • Voltage

    Sine wave (normal), simulated sine wave (battery mode)

  • Frequency

    50/60Hz

  • Surge suppression

    312 joules

  • Efficiency

    Up to 98%

  • Transfer time

    2-6ms (typical)

Battery

Jump to...
  • Battery type

    Lithium Iron Phosphate (LiFePo4)

  • Battery quantity/size

    (8) 18650 cells, 2400mAh

  • Battery runtime (est)

    6 min. at 100% load; 13 min. at 50% load

Environment

Jump to...
  • Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Humidity

    0-90%

  • Altitude

    11500' (3505.24m) above sea level

General

Jump to...
  • Approvals

    UL-1778, cTUVus, FCC, RoHS

  • Communications Interface

    USB

  • Dimensions (WxDxH)

    6.9 x 8.5 x 1.25" (175.26 x 215.90 x 31.75mm)

  • Weight

    3.4 lbs (1.54kg)

About Lowell Manufacturing UPS6-350LI

When safeguarding your AV and automation systems from power surges and outages, the UPS6-350LI Ultra-Slim & Lightweight UPS with Lithium Battery is an optimal choice. This compact UPS, with a sleek 1.25" form factor, is designed to provide continuous power in spaces where traditional UPS systems may not fit. It's an ideal solution for a range of applications, including video walls, PoE switches, programmable logic controllers (PLC), kiosks, gaming machines, and point-of-sale (POS) equipment.

The UPS6-350LI leverages the advantages of Lithium Battery Technology, capable of operating continuously at temperatures up to 104 degrees Fahrenheit (40 degrees Celsius) without any reduction in battery life. The LiFePo4 batteries offer robust protection for up to 8-10 years or 2000 discharges, ensuring long-term reliability.

This UPS features a sophisticated Battery Management System that ensures cell voltage balancing and parallel current sharing while providing protection from overcharge and discharge scenarios. With a power rating of 350VA (200W) and an input voltage of 120VAC, this UPS is designed for efficiency and performance.

The plug-and-play functionality of the UPS6-350LI makes it user-friendly and ready to start backing up your equipment as soon as it's fully charged, which takes approximately 8 hours. In the event of a full battery discharge, the UPS automatically restarts when utility power returns, providing seamless operation.

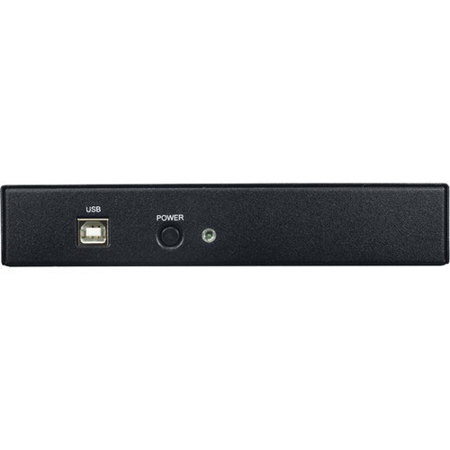

The UPS6-350LI stands out for its high efficiency, operating at up to 98%, which helps save on utility costs and reduces heat output. The input connector, output receptacles, and USB are strategically located on the sides for flat installations. The slim (1.25") and lightweight (3.4 lbs.) chassis make it easy to install and move around.

The package includes a detachable power cord, with an optional offset cord available. For added convenience, the UPS comes with two mounting brackets, allowing you to mount it on walls, under counters, or inside enclosures, making it a versatile addition to any setup.

Lowell Manufacturing UPS6-350LI Features

  • Ultra-slim and lightweight UPS with lithium battery technology for continuous power supply
  • Ideal for video walls, PoE switches, PLCs, kiosks, gaming machines, and POS equipment
  • Battery Management System for cell voltage balancing and overcharge/discharge protection
  • High operating efficiency of up to 98%, reducing utility costs and heat output
  • User-friendly with plug-and-play functionality and automatic restart after full discharge
  • Includes mounting brackets for versatile installation options on walls, under counters, or inside enclosures

Key Features

  • Ultra-slim and lightweight UPS with lithium battery technology for continuous power supply
  • Ideal for video walls, PoE switches, PLCs, kiosks, gaming machines, and POS equipment
  • Battery Management System for cell voltage balancing and overcharge/discharge protection
  • High operating efficiency of up to 98%, reducing utility costs and heat output
  • User-friendly with plug-and-play functionality and automatic restart after full discharge

What's in the box:

  • Lowell Manufacturing UPS6-350LI Ultra-Slim & Lightweight UPS with Lithium Battery
  • 2x Mounting Brackets
  • 5-15P to C13 Line Cord
  • Lowell Manufacturing 1 Year Limited Warranty
