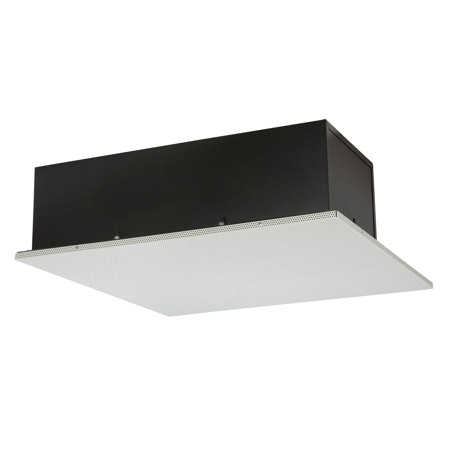

Lowell Manufacturing LT2-8A-T870-VB 2x2 Speaker System, TLM-870 Transformer
See all Lowell Manufacturing items

Lowell Manufacturing LT2-8A-T870-VB 2x2 Speaker System for Tile Ceilings, Includes 8A50 8" Driver, TLM-870 Transformer, 2x2 Grille/Subplate & Volume Backbox

SKU: LW8AT870VB
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Lowell Manufacturing LT2-830-TM16-VB 2x2 Speaker System for Tile Ceilings
$421.00
$370.48
undefined undefined: Picture 1 regular
Lowell Manufacturing IM12P-TS100-3SW Speaker System
$1,450.80
$1,276.70
undefined undefined: Picture 1 regular
Lowell Manufacturing IM12Q-TS100-3SW Speaker System
$1,882.20
$1,656.34
undefined undefined: Picture 1 regular
Lowell Manufacturing WB4T-4A30-T870 Speaker/Grille Assembly, Torsion Grille
$142.20
$125.14
undefined undefined: Picture 1 regular
Lowell Manufacturing WB4-4A30-T870 Speaker/Grille Assembly, 4" Driver
$105.60
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Lowell Manufacturing LT2-8A-T870-VB Specifications

Driver

Driver

Jump to...

  • Size

    8"

  • Power Rating

    50W

  • Type

    Coaxial

  • Ceramic Magnet

    20 oz. LF
    2 oz. HF

  • Frequency Response

    40Hz-19.4kHz (+6dB
    40Hz-20kHz (+7.3dB)

  • Dispersion

    At 2000Hz -6dB:
    90 degrees Conical

  • Voice Coil Impedance

    8 ohms

  • Voice Coil Diameter

    1.4" LF
    0.53" HF

  • Sensitivity 1W / 1M

    90.6dB Avg

  • Max SPL

    107.6dB

  • Depth

    3.85" (9.78cm)

Transformer

Jump to...

  • Primary Voltage

    70V

  • Power Rating

    8W

  • Primary Taps

    1, 2, 4, 8W

  • Secondary Impedance

    8, 4 ohms

  • Frequency Response

    50Hz-15kHz (+/-1dB)

  • Lead Length

    8"

  • Leads

    Color-coded

General

Jump to...

  • Compliance & Certification

    UL1480A General Signaling (Indoor Dry)
    UL2043 suitable for use in an air handling space
    CSA C22.2 No. 205-12 General Signaling for use in Canada

  • Dimensions

    Transformer: 2.38 x 2.88 x 1.68" (6.05 x 7.32 x 4.27cm)

  • Weight

    Driver: 3.5 lbs (1.59kg)

About Lowell Manufacturing LT2-8A-T870-VB

Quick install pro speaker for suspended tile ceilings features premium 8 in. 50W coaxial driver, 70V transformer, fine perforation grille and .8 cu.ft. enclosure in a 2x2 assembly to quickly replace a non-tegular (2x2) ceiling tile.

Performance
Pro Sound.

Assembly Includes

Driver (8A50)
8 in. 50W coaxial driver with 20 oz. LF ceramic magnet and 2 oz. HF ceramic magnet has frequency response of 40Hz-19.4kHz (+/-6dB) and 40Hz-20kHz (+/-7.3dB) and average sensitivity of 90.6dB (1W/1M). Excellent power handling and smooth sound reproduction.

Transformer
70V transformer with primary taps at 1.1, 2, 4 and 8W.

Grille with Subplate (2 x 2 )
Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.

Enclosure (.8 cu.ft.)
Steel backbox with 1.5 in. thick acoustic lining. Removable dual knockout wiring compartment cover plate with combination knockouts. Driver leads exit through metal clamp. Backbox is offset to fit around plenum obstructions.

Mounting Aids
Restraint tabs.

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience exceptional audio clarity with this 8" coaxial commercial speaker.
  • Achieve optimal sound dispersion in any room with its 90-degree conical design.
  • This durable speaker system is UL certified for safe air handling spaces.
  • Easily install in tile ceilings with the included 2x2' grille and backbox.
  • Customize your sound with selectable 1, 2, 4, and 8W transformer taps.
  • Enjoy wide frequency response (40Hz-19.4kHz) for full, rich sound quality.

What's in the box:

  • Lowell Manufacturing 8A50 8 " 50W Coaxial Driver
  • TLM-870 70V Transformer
  • 2x2' Grille/Subplate
  • Volume Backbox
  • Mounting Aids
  • Lowell Manufacturing 1 Year Limited Warranty
