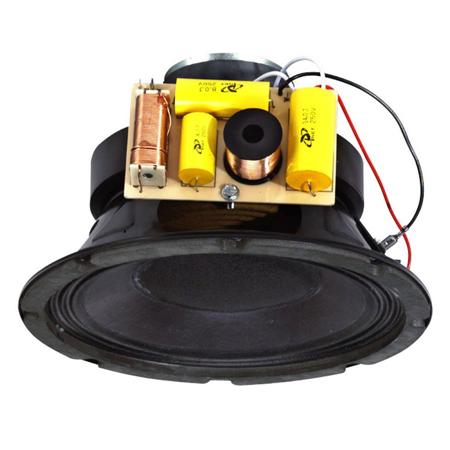

Lowell Manufacturing 8P100 8" 100W Coaxial Compression Driver

SKU: LW8P100 MFR: 8P100
Earn VIP Reward Points

Key Features

  • Experience exceptional sound accuracy with this 8" coaxial compression driver.
  • Achieve professional audio quality with a wide 45Hz-20kHz frequency response.
  • Enjoy reliable performance with a robust build quality and durable steel basket.
  • Get flexible connectivity options with quick disconnect spade lug terminals.
  • Deliver powerful sound with a 100W RMS power rating for clear audio output.
  • Minimize distortion for pristine sound with premium components and design.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing 8P100 Specifications

Performance

Performance

Jump to...
  • Power Rating

    100 watts RMS measured per EIA Standard RS-426B

  • Sensitivity

    92.6dB Average SPL (measured 2.83V at 1m)
    112.6dB Maximum SPL (calculated based on power rating and measured sensitivity)

  • Impedance

    Driver Nominal Impedance: 8 ohms
    Driver Minimum Impedance: 5.3 ohms at 1650Hz
    Driver Measured Impedance: 10.0 ohms at 1kHz

  • Frequency Response

    45Hz-20kHz (+6dB)

  • Crossover Frequency

    2400Hz, second order high-pass filter, second order low-pass filter

  • Dispersion Angle

    105 degrees conical at 2kHz octave (-6dB)

  • Cone

    Treated paper with cloth surround

  • Magnet

    38 oz (1077g), strontium ferrite ceramic

  • Voice Coil

    2" (5.08cm), copper wire over Kapton former

  • Terminals

    Quick disconnect type, spade lugs

High Frequency Driver

Jump to...
  • Type

    Compression driver

  • Magnet

    7.7 oz (217g), ferrite ceramic

  • Voice Coil

    1" (2.54cm), copper wire

  • Ferrofuid

    Yes

  • Diaphragm

    Phenolic

Mechanical

Jump to...
  • Basket

    18-gauge stamped steel with black electrocoat

  • Outside Diameter

    8.25" (20.96cm)

  • Mounting Bolt Circle

    7.75" (19.69cm) with 8 holes equally spaced at 45 degrees

  • Cutout Diameter

    7.13" (18.11cm)

  • Mounting Depth

    5.4" (13.72cm)

General

Jump to...
  • Compliance & Certification

    Made in U.S.A. with global components
    Meets or exceeds industry standards

  • Weight

    8.7 lbs (3.95kg)

About Lowell Manufacturing 8P100

From the renowned Lowell Manufacturing brand comes the 8P100 8" 100W Coaxial Compression Driver, a testament to high-quality and innovative audio engineering. This powerful and durable driver is meticulously designed for high-energy environments with high ceilings, making it an impeccable choice for a wide array of venues including nightclubs, bars, hotel ballrooms, multi-purpose areas, convention centers, sporting facilities, concourses, and transportation terminals.

The robust motor structure of the 8P100 features a substantial 38 oz. magnet coupled with a 2-inch voice coil expertly wound on a heat-resistant Kapton former, ensuring reliable performance even under demanding conditions. The high-frequency compression driver is strategically coaxially mounted behind the woofer, a design choice that not only enhances power handling but also significantly improves efficiency compared to conventional dome tweeters.

Equipped with a built-in crossover network that includes a second-order high-pass and second-order low-pass filter, the 8P100 achieves precise frequency division between the woofer and the compression driver. This results in a seamless audio experience with clear, accurate sound reproduction across a wide frequency range, suitable for both professional and consumer audio applications.

Whether you're outfitting a venue with top-tier sound equipment or seeking a reliable coaxial compression driver for high-quality audio projects, the 8P100 stands out as a superior choice. Its combination of high output, innovative coaxial design, and exceptional sound fidelity makes it a standout product in the professional audio equipment market.

Lowell Manufacturing 8P100 Features

  • High-quality 8" 100W Coaxial Compression Driver from Lowell Manufacturing
  • Ideal for high-energy, high-ceiling applications like clubs, bars, and convention centers
  • Robust motor structure featuring a 38 oz. magnet and a 2-inch voice coil wound on a Kapton former
  • High-frequency compression driver coaxially mounted behind the woofer for increased power handling and efficiency
  • Built-in crossover network with second-order high-pass and second-order low-pass filter for precise frequency division
  • Delivers clear, accurate sound reproduction across a wide frequency range for both professional and consumer audio applications

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience exceptional sound accuracy with this 8" coaxial compression driver.
  • Achieve professional audio quality with a wide 45Hz-20kHz frequency response.
  • Enjoy reliable performance with a robust build quality and durable steel basket.
  • Get flexible connectivity options with quick disconnect spade lug terminals.
  • Deliver powerful sound with a 100W RMS power rating for clear audio output.
  • Minimize distortion for pristine sound with premium components and design.

What's in the box:

  • Lowell Manufacturing 8P100 8 " 100W Coaxial Compression Driver
  • Lowell Manufacturing 1 Year Limited Warranty
