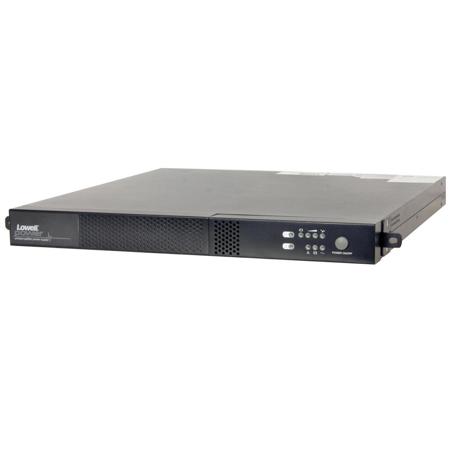

Lowell Manufacturing UPS9C-1000 800W 1U True Online UPS with 4-Point Rail Kit

SKU: LW9C1000

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the function of the Auto Restart feature in the UPS9C-1000 800W 1U True Online UPS?

The Auto Restart function automatically reboots the UPS after a full battery discharge, once the utility power returns. This ensures that your equipment is always powered and protected.

How efficient is the UPS9C-1000 800W 1U True Online UPS in ECO mode?

The UPS9C-1000 operates with a high efficiency of 98% in ECO mode, significantly lowering energy consumption.

What does the Frequency Converter feature in the UPS9C-1000 800W 1U True Online UPS do?

The Frequency Converter can be programmed to convert from 50Hz to 60Hz or from 60Hz to 50Hz, providing flexibility for different power requirements.

What is the Load Shedding capability in the UPS9C-1000 800W 1U True Online UPS?

The Load Shedding capability allows you to maximize uptime for critical loads and equipment by shedding less critical loads when necessary.

How easy is it to replace the battery in the UPS9C-1000 800W 1U True Online UPS?

The UPS system features a Hot Swappable Battery, which is easy to replace without interrupting the load, ensuring continuous power supply during battery replacement.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lowell Manufacturing UPS9C-1000 Specifications

Capacity

Capacity

Jump to...
  • Power rating

    1000VA (800W)

  • Voltage/frequency

    50-150VAC
    50/60Hz auto-sensing

  • Voltage

    120VAC

  • Waveform

    Pure sine wave, < 2% at full load

  • Frequency

    50/60Hz +/-0.5Hz

  • Efficiency

    Up to 98% ECO mode, 90% online mode

  • Overload capacity

    <= 130% for 2 min
    <= 200% for 10 sec
    >200% for 1 sec

Battery

Jump to...
  • Battery type

    Sealed, maintenance-free lead acid

  • Battery quantity & size

    (4) 6V 290W

  • Battery run time

    18.5 minutes (50% load); 6.5 minutes (100% load)

  • Typical recharge

    < 6 hours to 90%

Physical

Jump to...
  • Line cord

    5', 5-15P

  • Receptacles

    (3) NEMA 5-15R

Environment

Jump to...
  • Operating temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Altitude

    11,500' above sea level

General

Jump to...
  • Approvals

    UL, cUL, RoHS

  • Communications Interface

    RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact)

  • Included Software

    ViewPower software

  • Dimensions (WxDxH)

    17.2 x 17.8 x 1.7" (43.69 x 45.21 x 4.32cm)

  • Weight

    28 lbs (12.70kg)

  • UPC Code

    811859035125

About Lowell Manufacturing UPS9C-1000

Explore the UPS9C-1000 800W 1U True Online UPS with 4-Point Rail Kit, a reliable power solution designed to deliver uninterrupted, high-quality AC power to your AV electronics, servers, and network equipment. This true online UPS ensures there's no break when transferring to battery power, providing robust protection for your equipment against blackouts, brownouts, sags, surges, and noise interference.

This UPS system comes complete with a 4-point rail kit, making rack installation a breeze. It features an Auto Restart function, which automatically reboots the UPS after a full battery discharge, once the utility power returns, ensuring your equipment is always powered and protected.

Experience the benefits of its highly efficient operation, boasting a 98% efficiency in ECO mode, which significantly lowers energy consumption. This makes the UPS9C-1000 not only a reliable power solution but also an energy-efficient choice for your equipment.

The UPS9C-1000 also functions as a Frequency Converter, which can be programmed to convert from 50Hz to 60Hz or 60Hz to 50Hz, providing flexibility for various power requirements. It also offers Load Shedding capabilities, allowing you to maximize uptime for critical loads and equipment by shedding less critical loads.

The UPS system features a Hot Swappable Battery, which is easy to replace without interrupting the load, ensuring continuous power supply during battery replacement. The package includes a 4-point Rackmount Rail Kit with horizontal brackets, providing various mounting formats for your convenience.

In summary, the UPS9C-1000 800W 1U True Online UPS with 4-Point Rail Kit is a comprehensive power solution, offering continuous, high-quality power, efficient operation, and flexible features for your AV electronics, servers, and network equipment.

Lowell Manufacturing UPS9C-1000 Features

  • Pure sine wave output
  • Load shedding capabilities
  • Hot swappable battery
  • Auto restart after full battery discharge
  • Includes 4-point rail kit with brackets for rackmount installation (requires Lowell floor rack min. depth 22")

Key Features

  • Uninterrupted, high-quality AC power delivery to AV electronics, servers, and network equipment
  • Includes 4-point rail kit for easy rack installation
  • Auto Restart function for automatic reboot after full battery discharge
  • Highly efficient operation with 98% efficiency in ECO mode for lower energy consumption
  • Functions as a Frequency Converter, programmable to convert from 50Hz to 60Hz or vice versa
  • Load Shedding capabilities for maximizing uptime for critical loads and equipment

What's in the box:

  • Lowell Manufacturing UPS9C-1000 800W 1U True Online UPS
  • 4-Point Rackmount Rail Kit
  • Lowell Manufacturing 3 Year Warranty on Electronics and Battery
