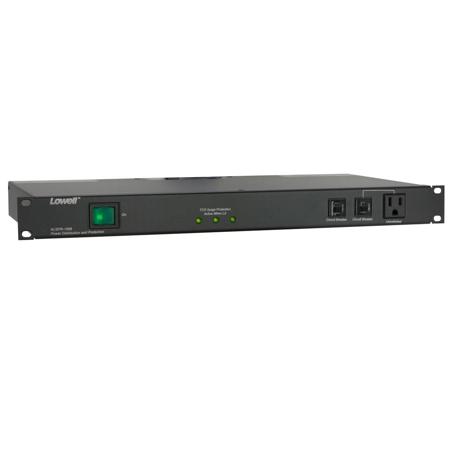

Lowell Manufacturing ACSPR-1509 1U 15A Rackmount Power Panel, 5-Switched and 4-Unswitched Outlets, Advanced Surge Protection

SKU: LWACSPR1509 MFR: ACSPR-1509
Earn VIP Reward Points

Key Features

  • Maximize space with this 1U rackmount power panel, perfect for any standard 19-inch rack.
  • Ensure reliable power distribution with a 15A circuit breaker and surge protection.
  • Easily manage your equipment with 5 switched outlets and 4 unswitched outlets on the panel.
  • Enjoy peace of mind with advanced surge protection, safeguarding your valuable equipment.
  • Simplify setup with the included 9-foot cord and NEMA 5-15P plug for quick installation.
  • Monitor protection status at a glance with diagnostic LEDs for each surge protection stage.
See More Product Details
Special Order?Estimated to Ship: 09/28/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lowell Manufacturing ACSPR-1509 Specifications

  • Power Rating

    120VAC, 60Hz, 15A (NEC Art.210.21 [B] [2] rating 12A) 15A circuit breaker

  • Front outlet

    1 unswitched outlet independently protected by 5A circuit breaker

  • Rear outlets

    5 switched, 3 unswitched

  • Termination

    9' attached cord with NEMA 5-15P plug

  • On/off Switch

    Rocker switch controls 5 rear outlets (other outlets are un-switched-always on when power is supplied)

  • Chassis

    Steel

  • Surge Protection: Maximum Surge Current

    72,000A (exceeds UL1449-4 6000V, 3000A)

  • Surge Protection: Initial Clamping Volt

    205V, UL rating 400V

  • Surge Protection: Endurance

    IEEE C62.41-1991, B3 (C1), Pulses (lifetime): 1kv>=1,000,000; 3kv>=100,000; 6kv>=5000

  • Surge Protection: Noise Reduction

    Transient Noise Reduction: 25dB at 100kHz; 50dB at 1MHz

  • Surge Protection: Response Time

    Less than 5 nanoseconds

  • Surge Protection: Protection Mode

    Line to neutral, zero ground leakage

  • Surge Protection: Adjunct Results

    UL1449-2: 1000 surges, 6000 volts, 3000A, C1 and B3 waveforms (IEEE C62.41), No failures

  • Surge Protection: Diagnostic LEDs

    One green LED for each stage. All stages active when all lit

  • Surge Protection: Applicable Standards

    IEEE standard 587-80 A & B, IEEE standard C62.41-1991, IEC 1000-4-5-1995 (IEC 801-5)

  • Surge Protection: EMI/RFI Filter

    19dB at 500kHz, 42dB at 30MHz

  • Compliance & Certification

    EIA/TIA Compliant
    RoHS Compliant
    ETL Listed (U.S. and Canada)
    Made in the U.S.A. with global components

  • Dimensions (WxD)

    1U
    19 x 9" (48.26 x 22.86cm)

About Lowell Manufacturing ACSPR-1509

Make your electronic equipment safer and more organized with the ACSPR-1509 1U 15A Rackmount Power Panel. Designed for standard 19-inch E.I.A. racks, this high-quality power panel features a total of nine outlets - five switched and four unswitched - to accommodate a variety of devices.

Engineered with advanced surge protection, this durable power panel can shield your devices from power surges up to a staggering 72,000A, providing an extra layer of security for your valuable electronics. This reliable feature is crucial for those who want to safeguard their equipment from potential electrical disturbances.

The rackmount design of this power panel not only ensures easy installation but also promotes efficient organization within your rack or cabinet. This design allows for easy access to the outlets and switches, making it convenient for users to plug in and manage their devices.

Whether you're setting up a professional audio/video system, a server room, or any other application that requires multiple electronic devices, the ACSPR-1509 1U 15A Rackmount Power Panel with advanced surge protection is an excellent choice. It combines protective features with a space-saving design, making it an essential tool for managing and protecting your electronic equipment.

Lowell Manufacturing ACSPR-1509 Features

  • Lighted rocker activation switch on front
  • 9-ft. attached cord with NEMA 5-15P plug
  • Three-Stage Surge Protection
  • Multiple LED status indicators on front
  • ETL Listed in the US and Canada (UL Standard 60065)
  • Made in the USA with global components

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize space with this 1U rackmount power panel, perfect for any standard 19-inch rack.
  • Ensure reliable power distribution with a 15A circuit breaker and surge protection.
  • Easily manage your equipment with 5 switched outlets and 4 unswitched outlets on the panel.
  • Enjoy peace of mind with advanced surge protection, safeguarding your valuable equipment.
  • Simplify setup with the included 9-foot cord and NEMA 5-15P plug for quick installation.
  • Monitor protection status at a glance with diagnostic LEDs for each surge protection stage.

What's in the box:

  • Lowell Manufacturing ACSPR-1509 1U 15A Rackmount Power Panel
  • Lowell Manufacturing 1 Year Limited Warranty
