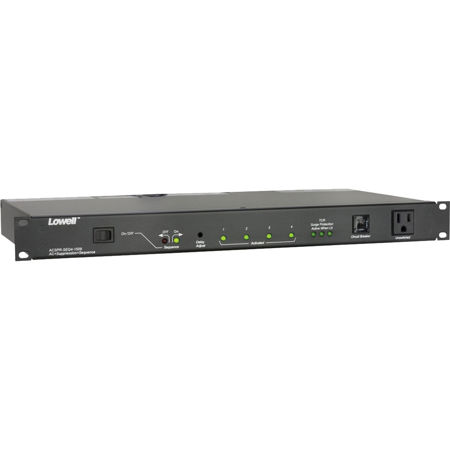

Lowell Manufacturing ACSPR-SEQ4-1509 1U 15A Rackmount Power Panel with 9' Attached Cord, Nine Total Outlets, 3-Stage Surge Suppression, 4-Step Sequencer

SKU: LWARSEQ41509 MFR: ACSPR-SEQ4-1509
Earn VIP Reward Points

Key Features

  • Safeguard equipment with this rackmount power panel's robust 3-stage surge protection.
  • Manage power efficiently using the 4-step sequencer with adjustable delay for each step.
  • Enjoy peace of mind with surge protector that's ETL Listed in the US and Canada.
  • Optimize space with the 1U design, perfect for any standard 19-inch rack setup.
  • Connect multiple devices using nine total outlets, including front and rear access.
  • Easily integrate with alarm systems via lock on/off and switch lock alarm interface.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$99.99

2 Year

$169.00

3 Year

$259.00

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing ACSPR-SEQ4-1509 Specifications

  • Power Rating

    120VAC, 60Hz, 15A 1800W

  • Actuation Switch

    Front rocker switch with momentary contacts (normally open SPST) plus rear barrier strip termination blocks for momentary (normally open) remote switches

  • Alarm Interface

    Lock on, lock off and switch lock for alarm system or master control panel applications

  • External Control Connections

    Plug-in barrier strip terminal blocks

  • Termination

    9' (2.74m) attached cord with NEMA 5-15P plug

  • EMI/RFI Filter

    19dB at 500kHz, 42dB at 30MHz

  • Front Receptacle

    One single unswitched (always on)

  • Rear Receptacles

    Two single unswitched (always on)
    One single switched (step 1)
    One single switched (step 2)
    One duplex switched (step 3)
    One duplex switched (step 4)

  • Step Delay

    0.5-10 seconds between steps. Screwdriver adjustable

  • Finish

    Steel with black powder epoxy finish

  • Agency Approvals

    ETL Listed in US and Canada to UL Standard 60065 "Audio, Video and Similar Electronic Apparatus"

  • Surge Suppressor

    Maximum Surge Current: 72,000A (exceeds UL1449-4 6000V, 3000A)
    Initial Clamping Voltage: 205V, UL rating 400V
    Endurance: IEEE C62.41-1991, B3 (C1), Pulses (lifetime): 1kv>=1,000,000; 3kv>=100,000; 6kv>=5,000
    Transient Noise Reduction: 25dB at 100kHz, 50dB at 1MHz
    Response Time: Less than 5 nanoseconds
    Protection Mode: Line to neutral, zero ground leakage

  • Surge Suppressor (Cont.)

    UL1449-2 Adjunct Results: 1000 surges, 6000 volts, 3000A, C1 and B3 waveforms (IEEE C62.41), No failures
    Diagnostic LEDs: One green LED for each stage; All stages active when all lit
    Applicable Standards: IEEE standard 587-80 A & B, IEEE standard C62.41-1991, IEC 1000-4-5-1995 (IEC 801-5)

  • Compliance & Certification

    ETL Listed (U.S., Canada)
    Made in U.S.A. with global components
    Surge Protector: UL 1449 4th edition and ANSI C62.41 compliant

  • Dimensions (WxDxH)

    Chassis: 19 x 9 x 1.75" (48.26 x 22.86 x 4.45cm)

  • Weight

    12 lbs (5.44kg)

About Lowell Manufacturing ACSPR-SEQ4-1509

Because the ACSPR-SEQ4-1509 1U 15A Rackmount Power Panel is designed with precision and efficiency, it offers a reliable solution for your power distribution needs. This high-quality power panel features a 4-step sequencer that provides time-delayed activation and deactivation of equipment. This unique feature allows for controlled power supply, reducing the risk of power surges and ensuring the longevity of your electronic devices.

Equipped with a total of nine power outlets, this rackmount power panel is designed to handle a variety of electronic equipment. Six of these outlets are controlled by an on/off switch, providing you with the flexibility to manage power distribution as per your needs. The remaining three outlets are un-switched, offering continuous power supply for devices that require constant operation.

Adding to its functionality, this durable power panel comes with a 3-stage surge suppression system. This protective feature safeguards your valuable equipment from potential power surges, providing an additional layer of security. Moreover, the panel includes an alarm interface, keeping you informed about the power status and any potential issues.

The ACSPR-SEQ4-1509 1U 15A Rackmount Power Panel also comes with a 9-foot attached cord, providing ample length for easy installation and setup. Its 1U rackmount design ensures it can be conveniently installed in a rack or cabinet, making it an ideal choice for both professional and home use.

In summary, the ACSPR-SEQ4-1509 1U 15A Rackmount Power Panel is a reliable, high-quality, and efficient power distribution solution, designed to offer superior protection and control for your electronic devices.

Lowell Manufacturing ACSPR-SEQ4-1509 Features

  • Power rating 120VAC 60Hz/15A with EMI/RFI filtering
  • Terminates with 9 ft. cord and NEMA 5-15P plug
  • Front rocker switch (on/off)
  • One front and two rear unswitched outlets (always on); six rear switched outlets (activated by on/off switch)
  • Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
  • Color coded LED status indicators
  • Rear terminal block for connection to optional remote switches (momentary)
  • Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface
  • Surge protector - UL1449 fourth edition and ANSI C62.41 compliant. Defeats surges up to 72,000A
  • ETL Listed in the US and Canada UL Standard 60065
  • Made in the U.S.A.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Safeguard equipment with this rackmount power panel's robust 3-stage surge protection.
  • Manage power efficiently using the 4-step sequencer with adjustable delay for each step.
  • Enjoy peace of mind with surge protector that's ETL Listed in the US and Canada.
  • Optimize space with the 1U design, perfect for any standard 19-inch rack setup.
  • Connect multiple devices using nine total outlets, including front and rear access.
  • Easily integrate with alarm systems via lock on/off and switch lock alarm interface.

What's in the box:

  • Lowell Manufacturing ACSPR-SEQ4-1509 1U 15A Rackmount Power Panel with 9' Attached Cord
  • Lowell Manufacturing 1 Year Limited Warranty
