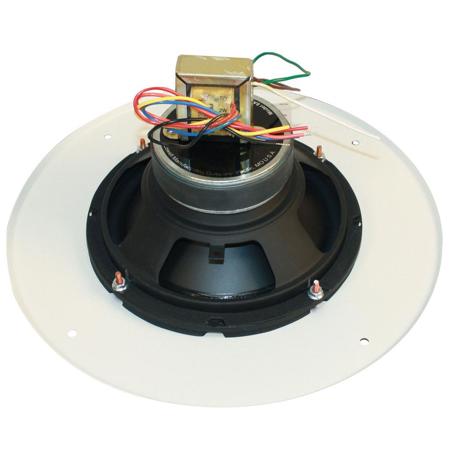

Lowell Manufacturing WB8-8A50-T870 Speaker/Grille Assembly, Includes 8" 50W Coaxial Compression Driver, 8W Transformer and White Screw-Mount Grille

The assembly includes an 8 inch 50W coaxial driver, transformer and grille. The driver is engineered as a step up in sound quality and performance over standard commercial coaxial drivers, with improved power handling, lower distortion and smoother musical sound. It's ideal for upscale restaurants, lounges, hotel lobbies, department stores and similar venues.

Performance
General signaling.

Driver (8A50)
8 in. 50W coaxial driver has a capacity to deliver a wide angle of sound distribution (90 degrees) over a large area with uniform response and voice clarity to ensure complete coverage with minimum units. Features 20 oz. magnet, 1.4 in. copper voice coil, polypropylene cone with half-roll rubber surround for long cone travel and good edge damping. Post-mounted tweeter is a 1 in. balanced drive dome protected by Ferrofluid and first order high pass filter. Stamped 20-gauge steel frame with black enamel finish and zinc plated backplate.

Transformer (TLM-870)
Transformer has primary taps at 8, 4, 2, 1 watt and frequency response of 50Hz-15kHz (+1dB). Line-matching transformer for high quality audio systems and general purpose paging applications where wide frequency response, low insertion loss and high power handling are critical considerations. The TLM series features the industry standard open-housing design and color-coded leads for fast installation.

Contoured Grille (WB-8)
Contoured speaker grille with white finish is for use with an 8 inch driver. This style is a popular choice for offices, hotels, schools, medical, retail and commercial facilities. One piece perforated steel screw-mount grille. 12.875 in. diameter.
