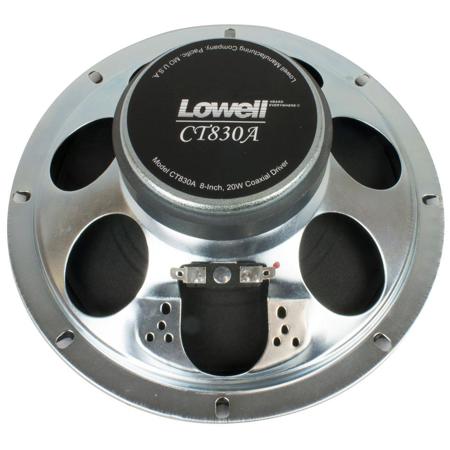

Lowell Manufacturing CT830A 8" 20W Speaker Coaxial Driver, 12 oz Magnet

SKU: LWCT830A MFR: CT830A
$63.54
Earn VIP Reward Points

Key Features

  • Achieve sound accuracy with this 8" coaxial driver, perfect for studio monitor upgrades.
  • Experience a wide frequency response (57Hz-14kHz) for detailed audio in your studio setup.
  • Enjoy robust build quality with a 20-gauge steel basket and zinc plating for lasting use.
  • This 8-ohm speaker offers versatile connectivity options for various audio setups.
  • Handle up to 20W RMS power rating, ideal for clear audio and reliable studio performance.
  • Minimize distortion and maximize clarity for professional studio monitor applications.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing CT830A Specifications

Performance

Performance

Jump to...
  • Power Rating

    20W RMS (nominal) measured per EIA Standard RS-426B

  • Sensitivity

    97.0dB Avg. SPL (measured 2.83V at 1m)
    110.0dB Maximum SPL

  • Impedance

    8 ohms nominal, minimum 5.7 ohms at 11,338Hz

  • Frequency Response

    57Hz-14kHz (+/-6dB); 44Hz-20kHz (+/-7.6dB)

  • Dispersion Angle

    80 degrees at 2000Hz octave (-6dB)

Physical - Woofer

Jump to...
  • Cone

    Damped paper with self edge surround

  • Driver Size

    8" (20.32cm)

  • Magnet

    12 oz (340.19g), strontium ferrite ceramic

  • Voice Coil

    1" (2.54cm), copper wire over aluminum former

  • Terminals

    Quick disconnect type - spade lugs

Compliance & Certification

Jump to...
  • Compliance & Certification

    Made in U.S.A. with global components
    Meets or exceeds industry standards

Mechanical

Jump to...
  • Basket

    20-gauge stamped steel with zinc plating

  • Outside Diameter

    8.06" (20.47cm)

  • Mounting Bolt Circle

    7.62" (19.35cm) with 8 obround holes equally spaced at 45 degrees

  • Cutout Diameter

    7.15" (18.16cm)

  • Mounting Depth

    3.2" (8.13cm)

  • Weight

    2.4 lbs (1.09kg)

About Lowell Manufacturing CT830A

For superior audio performance, consider the CT830A 8" 20W Speaker Coaxial Driver with a hefty 12 oz magnet. This high-quality, durable speaker is designed by Lowell Manufacturing, a trusted name in the audio equipment industry. With its powerful and efficient design, this speaker is an outstanding choice for delivering clear, high-quality sound for paging, public address systems, and background music.

Unlike traditional full-range (dual cone) speakers, this model boasts a post-mounted, coaxially positioned tweeter, which significantly enhances performance. The separate woofer and tweeter in this coaxial driver ensure a more balanced and detailed sound output, providing an immersive audio experience.

The 3-inch tweeter in this reliable speaker ensures wide dispersion in the high-frequency range. This feature greatly enhances speech and music intelligibility, especially in the area between speakers, making it an ideal choice for any setting that requires clear and precise sound reproduction.

In conclusion, the CT830A 8" 20W Speaker Coaxial Driver with a 12 oz magnet is a powerful, efficient, and reliable choice for anyone seeking superior audio performance. Whether you're setting up a public address system, installing a paging system, or simply want to enjoy high-quality background music, this speaker from Lowell Manufacturing is designed to meet your needs.

Lowell Manufacturing CT830A Features

  • 8" 20W coaxial speaker
  • High frequency driver with first order high pass filter to protect it from harmful bass energy
  • Precision ground, highly efficient ceramic magnets (12 oz. LF, 2.1 oz. HF) and permanently aligned voice coils (1" LF; 0.563" HF) to achieve outstanding smoothness and intelligibility
  • 20-ga. stamped steel frame with zinc plated finish to prevent corrosion and punched holes (to mount a transformer)
  • Provides optimum low end performance when teamed with Lowell's acoustic DX Series backbox (1-3 cu.ft.) or protective backbox with acoustic fiberglass batting
  • Made in the USA with domestic and imported components
  • Meets or exceeds all applicable EIA standards
  • Compatible with Lowell 8" grilles
  • Performance: Background music and paging

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve sound accuracy with this 8" coaxial driver, perfect for studio monitor upgrades.
  • Experience a wide frequency response (57Hz-14kHz) for detailed audio in your studio setup.
  • Enjoy robust build quality with a 20-gauge steel basket and zinc plating for lasting use.
  • This 8-ohm speaker offers versatile connectivity options for various audio setups.
  • Handle up to 20W RMS power rating, ideal for clear audio and reliable studio performance.
  • Minimize distortion and maximize clarity for professional studio monitor applications.

What's in the box:

  • Lowell Manufacturing CT830A 8 " 20W Speaker Coaxial Driver
  • Lowell Manufacturing 1 Year Limited Warranty
