What is the purpose of the steel plate mounted over the driver?

The steel plate is designed to protect the driver during shipping and installation. It can be removed when you are ready to mount the grille.

What environments is the IM8P-2SW Speaker System ideal for?

This speaker system is perfect for high energy, high ceiling applications such as clubs, bars, sports facilities, hotel ballrooms, transportation terminals, convention centers, and exhibit halls.

What are the features of the enclosure?

The 2 cu.ft. precision-formed steel enclosure features anti-vibration ribs, a sound-stop board, and a 1-1/2" thick premium acoustic lining. It also has forged 1/4"-20 eyebolts for secure suspended installation.

What is the finish of the grille and the enclosure?

The grille has a white powder epoxy finish, while the enclosure is finished with a black powder epoxy.

What is the power handling capability of the driver?

The 8P100 8" (8ohm) 100W driver has high power handling capabilities with excellent efficiency, thanks to its robust motor structure and coaxially mounted high-frequency compression driver.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Lowell Manufacturing IM8P-2SW Specifications

  • Driver Rating

    100W (8 Ohms)

  • Driver Size

    8" (203.20mm)

  • Driver Type

    Direct radiator LF
    Coaxial compression HF

  • LF Magnet

    38 oz (1077.28g)

  • Voice Coil

    2" (50.80mm)

  • Enclosure Volume

    2 Cubic Foot

  • System Response

    48Hz-20kHz (+/-6dB)

  • System Dispersion

    80 degrees conical at 2kHz octave (-6dB)

  • System Sensitivity

    92.4dB Avg at 1W/1M
    112.4dB Max at 100W/1M

  • Performance

    Pro Sound

  • Certification & Compliance

    Certified U.S. steel (grille, enclosure)
    Made in U.S.A. with global components

  • Dimensions

    Enclosure: 23.937 x 18.19 x 8.19" (608.00 x 462.03 x 208.03mm)

About Lowell Manufacturing IM8P-2SW

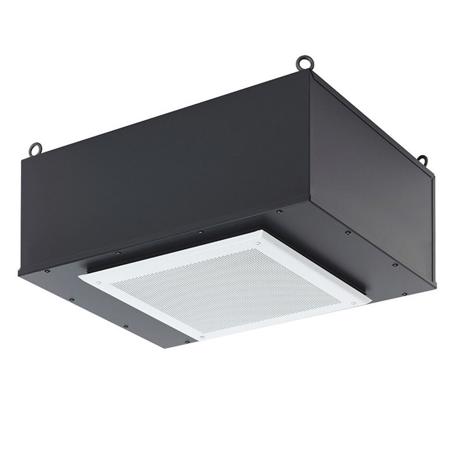

Let the IM8P-2SW Speaker System transform your audio experience with its high-performance capabilities, designed specifically for suspended installations. This durable and efficient loudspeaker system, crafted by the reputable Lowell Manufacturing, is perfect for environments that demand high energy and high ceiling applications, such as clubs, bars, sports facilities, hotel ballrooms, transportation terminals, convention centers, and exhibit halls.

The heart of this system is the 8P100 8" (8ohm) 100W driver, boasting a robust motor structure, a hefty 38 oz. magnet, and a 2" voice coil. It also features a coaxially mounted high-frequency compression driver, ensuring high power handling with excellent efficiency. For added protection during shipping and installation, a steel plate is mounted over the driver, which can be removed to mount the stylish white square grille.

The grille itself is a square perforated steel design with a white powder epoxy finish, making it an ideal choice for applications where the speaker is suspended in a tile, sheetrock, or plaster ceiling. Measuring 15.25" square x 0.375", it adds a sleek touch to any setting.

The high-quality 2 cu.ft. precision-formed steel enclosure measures 23.94" x 18.19" x 8.19" and features anti-vibration ribs, a sound-stop board, and a 1-1/2" thick premium acoustic lining. For secure suspended installation, forged 1/4"-20 eyebolts are screwed into mounting nuts, ready for use with your choice of flyware.

Externally accessible connections are terminated through a 4" x 4" flush cover plate, and the enclosure is finished with a black powder epoxy for a sleek, professional look. With the IM8P-2SW Speaker System, you can rely on superior sound distribution throughout your space, enhancing your audio experience like never before.

Lowell Manufacturing IM8P-2SW Features

  • High-performance 8" 100W driver for dynamic audio in suspended speaker installations
  • Durable construction with robust motor and high-frequency compression driver
  • Stylish white square grille with powder epoxy finish for a modern aesthetic
  • Precision-formed steel enclosure with anti-vibration and acoustic lining features
  • Easy installation with secure 1/4"-20 forged eyebolts and externally accessible connections
  • Ideal for clubs, bars, sports facilities, and high-energy event spaces

Key Features

  • High-performance 8" 100W driver for dynamic audio in suspended speaker installations
  • Durable construction with robust motor and high-frequency compression driver
  • Stylish white square grille with powder epoxy finish for a modern aesthetic
  • Precision-formed steel enclosure with anti-vibration and acoustic lining features
  • Easy installation with secure 1/4"-20 forged eyebolts and externally accessible connections
  • Ideal for clubs, bars, sports facilities, and high-energy event spaces

What's in the box:

  • Lowell Manufacturing 8P100 8 " 100W Driver
  • 2 Cubic Foot Square Enclosure
  • Grille
  • Lowell Manufacturing 5 Year Limited Warranty
