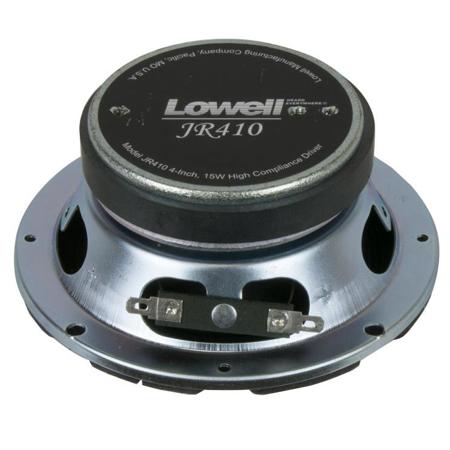

Lowell Manufacturing JR410 4" 15W Cone Driver for Speaker, 10 Oz Magnet, 8 Ohms

SKU: LWJR410 MFR: JR410
$32.91
Earn VIP Reward Points

Key Features

  • Enhance your sound with this 4" Lowell speaker driver, delivering crisp audio clarity.
  • Experience a wide frequency response (67Hz-16kHz) for accurate sound reproduction in your studio.
  • This 15W RMS cone driver ensures reliable performance for professional audio applications.
  • Achieve optimal sound dispersion (170 degrees at 2000Hz) for even sound coverage.
  • Benefit from the robust build quality, featuring a steel basket with zinc plating.
  • Enjoy easy connectivity with quick disconnect spade lugs for seamless integration.
See More Product Details
Special Order?Estimated to Ship: 09/12/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CRAIG K : It matched closely to what I was replacing

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing JR410 Specifications

Performance

Performance

Jump to...
  • Power Rating

    15 watts RMS (nominal) measured per EIA Standard RS-426B

  • Sensitivity

    90.8 dB log average SPL (1W/1M)
    102.6 dB maximum SPL (calculated based on power rating and measured sensitivity)

  • Impedance

    8 ohms (nominal), Minimum 7.9 ohms at 508Hz

  • Frequency Response

    67Hz-16kHz (+/-6dB), 53Hz-20kHz (+/-8dB)

  • Dispersion Angle

    170 degrees at 2000Hz octave (-6dB)

  • Magnet Material

    Strontium ferrite ceramic

  • Voice Coil Diameter

    1" (25.40mm)

  • Voice Coil Material

    Copper Wire

  • Cone material

    Paper with treated cloth surround

  • Terminals

    Quick disconnect type - spade lugs

General

Jump to...
  • Basket

    20 gauge stamped steel with zinc plating

  • Mounting Bolt Circle

    4.69" (119.13mm) with 4 round holes equally spaced at 90 degrees

  • Cutout Diameter

    4.125" (119.13mm)

  • Mounting Depth

    2.08" (52.83mm)

  • Outside Diameter

    5.03" (127.76mm)

  • Weight

    Driver: 1.7 lbs (0.77kg)
    Magnet: 10 oz (283.49g)

About Lowell Manufacturing JR410

It is with precision engineering that the JR410 4" 15W Cone Driver emerges as a standout component in the realm of commercial audio equipment. This high-quality driver, designed by the esteemed Lowell Manufacturing, is crafted to deliver a wide frequency response and exceptional sound dispersion, ensuring solid performance in both paging and background music systems.

The durable 4" (EIA 5") cone driver is the epitome of efficiency, boasting a powerful 10 Oz magnet and an 8 Ohm impedance rating. This combination allows for reliable handling of a broad spectrum of audio frequencies and power levels, making it an ideal choice for a multitude of applications. Its robust construction ensures longevity, even in the demanding environments of commercial, industrial, and institutional settings such as offices, public buildings, airport corridors, and educational or medical facilities.

With its compact size and impressive broadbeam width of 170 degrees, the JR410 is particularly effective in spaces with low ceilings, where sound dispersion can be a challenge. The driver's ability to project clear, undistorted sound across a wide area makes it a powerful asset for any audio system.

In summary, the JR410 4" 15W Cone Driver is a testament to Lowell Manufacturing's commitment to producing efficient, reliable, and powerful audio components. Its superior design and performance characteristics make it a preferred choice for professionals seeking a mid-range driver that excels in delivering quality sound in a variety of acoustic environments.

Lowell Manufacturing JR410 Features

  • Engineered to provide even coverage using fewer drivers
  • 10 oz. ceramic magnet for high power handling and sensitivity
  • 1" copper voice coil
  • Treated cloth surround
  • Plated steel basket
  • Meets or exceeds all applicable EIA standards
  • Designed to fit standard ceiling grilles/backboxes for 4" drivers
  • Performance: Background music and paging

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enhance your sound with this 4" Lowell speaker driver, delivering crisp audio clarity.
  • Experience a wide frequency response (67Hz-16kHz) for accurate sound reproduction in your studio.
  • This 15W RMS cone driver ensures reliable performance for professional audio applications.
  • Achieve optimal sound dispersion (170 degrees at 2000Hz) for even sound coverage.
  • Benefit from the robust build quality, featuring a steel basket with zinc plating.
  • Enjoy easy connectivity with quick disconnect spade lugs for seamless integration.

What's in the box:

  • Lowell Manufacturing JR410 4 " 15W Cone Driver
  • Lowell Manufacturing 1 Year Warranty
