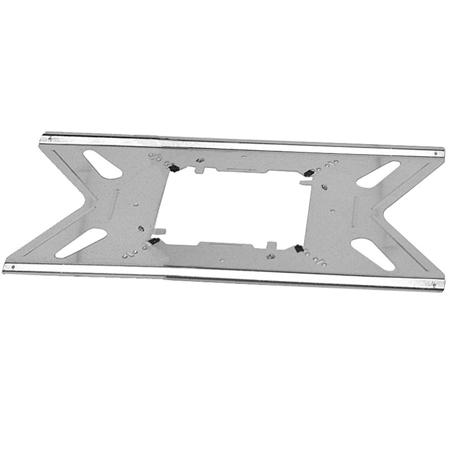

Lowell Manufacturing LBS8 Tile Bridge with 8.5" Square Opening for 8" Speaker, Galvanized Steel

SKU: LWLBS8 MFR: LBS8
$18.83
Earn VIP Reward Points

Key Features

  • Ensure secure speaker installation with this durable Lowell speaker tile bridge.
  • This 8.5" square opening speaker mount is made from robust galvanized steel.
  • Achieve optimal audio quality using this pre-construction speaker accessory.
  • Enjoy easy compatibility with various 8" speaker systems and back boxes.
  • Simplify your home theater setup with this easy-to-install speaker solution.
  • Proudly made in the USA, this speaker bridge ensures lasting performance.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Lowell Manufacturing LBS8 Specifications

  • Compatibility

    8" (203.20mm) speaker

  • Material

    Galvanized Steel

  • Square Opening

    8.5" (215.90mm)

  • Compatible System Components

    Grille:A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
    Backbox: 8XD4, 8XD4-P, 8XD4-S, IX810, XCP84, XCP84-S, XCP87, XCP810
    T-Bridge: LBS8 (use Twist 'n Lock or mtg. bolts)

    Grille: A8-AW, CS-8H, LO8-P, RS8-AW, WB-8
    Backbox: 8PSBX
    T-Bridge: LBS8 (use mounting bolts)

    Grille: FW-8, JG-8X (Square)
    Backbox: P68X, P68X-6, P875X-4, P875X-6
    T-Bridge: LBS8 (use mounting bolts)

    Grille: SG-8, IC105A (Square)
    Backbox: None (infinite baffle)
    T-Bridge: LBS8 (use mounting bolts)

  • Compliance & Certification

    Made in the U.S.A

  • Dimensions (LxW)

    23.75 x 15.5" (603.25 x 393.70mm)

About Lowell Manufacturing LBS8

Overcome the challenges of safely and effectively mounting your 8" speaker assembly with the LBS8 Tile Bridge. Engineered with an 8.5" square opening, this robust tile bridge is designed to distribute the weight of your speaker assembly evenly across the ceiling support system. This is particularly beneficial in suspended 2'x 2' or 2'x 4' tile ceilings, where weight distribution is crucial to maintain the aesthetic appeal and structural integrity of the ceiling tiles.

Constructed from durable galvanized steel, the LBS8 Tile Bridge offers superior resistance to rust and corrosion, making it a reliable choice for both indoor and outdoor installations. Its sturdy design not only enhances the longevity of your speaker setup but also adheres to local building codes that often mandate the use of a tile bridge for safety reasons.

The LBS8 Tile Bridge offers the flexibility to be used with or without a backbox, depending on the local building codes and the style and weight of your speaker assembly. This versatility makes it an ideal solution for a wide range of speaker installation projects. Whether you're looking to install a new speaker system or upgrade an existing one, the LBS8 Tile Bridge provides a high-quality, reliable mounting solution.

Lowell Manufacturing LBS8 Features

  • Galvanized 24-gauge steel
  • Formed construction-lightweight, rigid support
  • 23.75"L x 15.5"W
  • 8.5" square opening in center
  • Multiple formed ribs for strength
  • Multiple attachment points for versatility
  • Wire holes at each corner allow for seismic anchoring where required by code
  • Mounts an 8" speaker assembly with a screw mount grille (with or without backbox) or a torsion grille (with backbox)
  • Unique Twist 'n Lock feature provides hardware-free mounting to speed installation of round enclosures
  • Installation can also be accomplished in a standard manner with mounting bolts (not included)
  • Made in the U.S.A

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Ensure secure speaker installation with this durable Lowell speaker tile bridge.
  • This 8.5" square opening speaker mount is made from robust galvanized steel.
  • Achieve optimal audio quality using this pre-construction speaker accessory.
  • Enjoy easy compatibility with various 8" speaker systems and back boxes.
  • Simplify your home theater setup with this easy-to-install speaker solution.
  • Proudly made in the USA, this speaker bridge ensures lasting performance.

What's in the box:

  • Lowell Manufacturing LBS8 Tile Bridge with 8.5 " Square Opening
  • Lowell Manufacturing 1 Year Warranty
