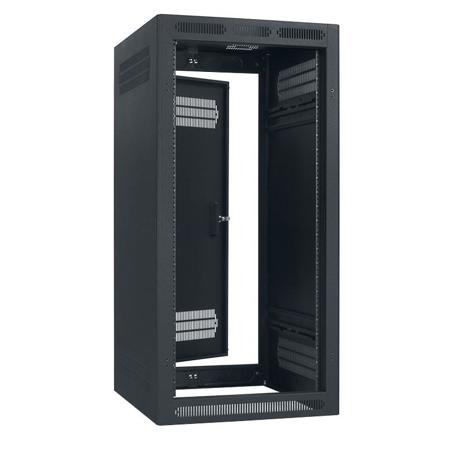

Lowell Manufacturing LER-2422 24U 22" Depth Enclosed Stand Alone Floor Rack with Rear Door and 2x Adjustable Rails, Black

SKU: LWLER2422 MFR: LER-2422
Earn VIP Reward Points

Key Features

  • This 24U rack enclosure keeps your valuable network equipment secure and easily accessible.
  • Enjoy superior cable management with this rack's knockout panels and adjustable rails.
  • Maintain optimal cooling with the vented rear door on this free-standing server rack.
  • Confidently load up to 800 lbs of equipment in this durable, UL-listed server cabinet.
  • Customize your setup with the removable blank project panel in this modular rack enclosure.
  • Rely on the security of the keylocked rear door to protect your sensitive equipment.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LER-2422 Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    24U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    19.34 x 42.13" (491.24 x 1070.10mm)

  • Bottom Opening Depth and Width

    17.88 x 19.94" (454.15 x 506.48mm)

  • UL Listed Load Capacity

    800 lbs (362.88kg)

  • Dimensions (WxDxH)

    23.06 x 22 x 48.13" (585.73 x 558.80 x 1222.50mm)

About Lowell Manufacturing LER-2422

With its robust construction and versatile design, the LER-2422 24U 22" Depth Enclosed Stand Alone Floor Rack is an essential addition to any professional audio, video, or network equipment setup. This 24U rack is built with a fully welded 16-gauge steel frame and a sturdy 14-gauge steel base, ensuring it can withstand the rigors of daily use. The strength of the rack is further enhanced by reinforcement at all load-bearing junctions, offering a level of durability comparable to 11-gauge steel.

The rack's sleek black wrinkle powder epoxy finish not only adds to its professional appearance but also provides an extra layer of protection against wear and tear. The design includes beveled edge corners on both the front and rear, reducing the risk of injury or damage when moving the rack.

Ventilation is a key feature of the LER-2422, with upper and lower vents on the front to facilitate airflow and prevent overheating of equipment. The frame is equipped with nutserts, allowing for the easy addition of an optional surface-mount door that can swing either left or right, depending on your preference. Please note that the front door must be ordered separately.

The rear of the rack includes removable knockout panels above and below the door, featuring combination EKOs suitable for conduit sizes ranging from 1/2" to 1-1/2" and KOs designed for wireless antennae at 1/2". A removable blank project panel is also found below the door for additional customization.

The standard model comes with a recessed door that includes vents and a key lock, and it can be set to swing in either direction. If a rear door is not required, you can specify this by adding the "LRD" suffix to the model number.

For added stability, the welded side panels feature vents at the top and bottom. The open access bottom of the rack is thoughtfully designed with a 10-32 threaded grounding stud, 3/8"-16 threaded T-nuts for optional leg levelers, and holes ready for anchor bolts, ensuring secure placement and grounding of the rack.

The closed top is constructed from steel and includes two vents for additional airflow. Cable management is made simple with combination knockouts in the rear of the rack.

The rack rails are a standout feature, offering full adjustability with one pair of 11-gauge steel, 10-32 threaded rails on E.I.A. spacing. These rails are marked with bi-directional numbered RU increments and can be mounted in either direction, providing flexibility in equipment setup. The black finish on the rails matches the rest of the rack for a consistent look.

Installation is made quick and easy with black pilot point screws that come with captive washers. The LER-2422 rack is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S.A. and Canada, ensuring it meets the highest standards for safety and environmental considerations.

In summary, the LER-2422 24U 22" Depth Enclosed Stand Alone Floor Rack with Rear Door and 2x Adjustable Rails is a highly durable, flexible, and professional solution for securing and organizing your valuable electronic equipment.

Lowell Manufacturing LER-2422 Features

  • Welded top with vents
  • Welded sides with vents
  • Open front (optional door)
  • Recessed rear door with vents and key lock
  • One-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management: Multiple lacing points, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 800 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • This 24U rack enclosure keeps your valuable network equipment secure and easily accessible.
  • Enjoy superior cable management with this rack's knockout panels and adjustable rails.
  • Maintain optimal cooling with the vented rear door on this free-standing server rack.
  • Confidently load up to 800 lbs of equipment in this durable, UL-listed server cabinet.
  • Customize your setup with the removable blank project panel in this modular rack enclosure.
  • Rely on the security of the keylocked rear door to protect your sensitive equipment.

What's in the box:

  • Lowell Manufacturing LER-2422 24U 22 " Depth Enclosed Stand Alone Floor Rack
  • Recessed Rear Door with Vent and Keylock
  • Grounding Stud
  • 2x 11-Gauge Adjustable Rails
  • Removable Knockout Panel
  • Removable Blank Project Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
