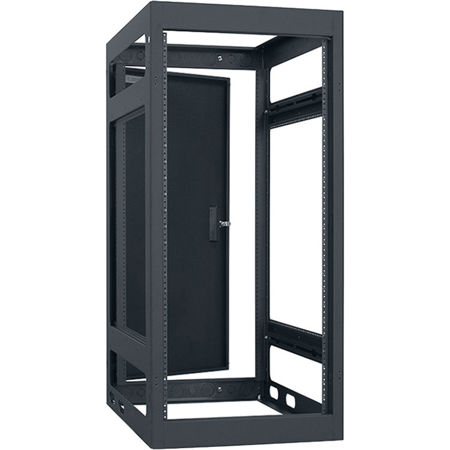

Lowell Manufacturing LGNR 24U 27" Depth Open Frame Narrow Gangable Rack with Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

Let the LGNR 24U 27" Depth Open Frame Narrow Gangable Rack with Rear Door and 4x Adjustable Rails be your go-to solution for efficient and organized storage of your electronic equipment. This sturdy and reliable rack is constructed from fully welded, certified U.S. steel, ensuring durability and robust support. The 16-gauge frame and 14-gauge base are reinforced at all load-bearing junctions, offering strength equivalent to 11-gauge steel.

The rack features a black wrinkle powder epoxy finish for an elegant look, while the beveled edge corners on the front and rear add a touch of sophistication. The front frame is equipped with nutserts, ready to accommodate an optional surface-mount door, which can be ordered separately and can swing either to the left or right.

The rear of the rack boasts a removable knockout panel in the frame above and below the door, with combination EKOs for conduit (1/2"- 3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"). The standard model includes a recessed rear door with a key lock for added security.

The sides of the rack offer open access with obround openings along the base for convenient cabling between racks. An optional side panel can be added, increasing the overall width by 1" per side. The top of the rack is configurable and features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing. It includes two black closure panels (3U, 7U) which can be replaced with optional 19" panels (fan, vent, etc.).

The bottom of the rack also offers open access and includes a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts. The opening measures 22.88"D x 18.89"W. The rack comes with two pairs of 11-gauge steel 10-32 threaded rails on E.I.A. spacing with numbered RU increments, offering versatile and adjustable storage options.

The rack is designed with clearance for wire management from the front rail to the outside frame (1.5") and from the front rail to the optional surface-mount door (2.25"). It comes with black pilot point screws with captive washers for quick installation. The LGNR 24U 27" Depth Open Frame Narrow Gangable Rack is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S.A. and Canada, making it a reliable choice for your data center, server room, or any other environment requiring organized electronic equipment storage.
