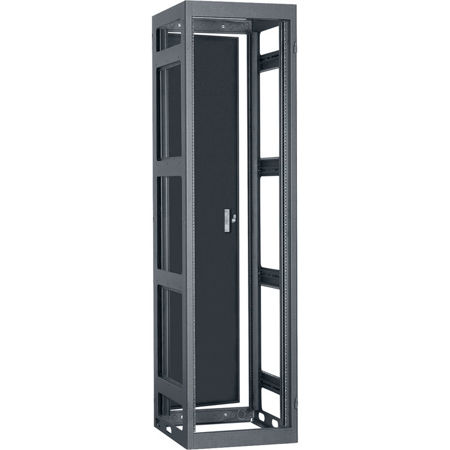

Lowell Manufacturing LGNR 44U 32" Depth Open Frame Narrow Gangable Rack with Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

Discover the LGNR 44U 32" Depth Open Frame Narrow Gangable Rack, a pinnacle of organization and security for your electronic equipment needs. Engineered with precision, this rack is constructed from fully welded, certified U.S. steel, boasting a 16-gauge frame and 14-gauge base. The strength of this unit is unparalleled, with reinforcement at all load-bearing junctions, offering robust support equivalent to 11-gauge steel.

The sleek black wrinkle powder epoxy finish not only adds to the durability but also provides a professional appearance that blends seamlessly into any server room or data center environment. The design features beveled edge corners on both the front and rear, enhancing safety and giving the rack a refined look.

The front frame of the LGNR 44U rack is equipped with nutserts, prepared for the addition of an optional surface-mount door, which can be configured to swing left or right according to your preference. The rear of the rack includes a removable knockout panel above and below the door, with combination EKOs for conduit and KOs for wireless antennae, ensuring versatile cable management solutions.

A recessed rear door with a key lock is standard, providing secure access to your equipment while maintaining the option for a left or right swing. For those who prefer an alternative setup, the rear door can be omitted by adding an "LRD" suffix to the model number.

The open sides of the rack feature obround openings along the base, facilitating multi-bay cable routing and easy access between racks. An optional side panel is available to further customize your setup, adding only 1" to the overall width per side.

At the top, a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing is ready for your configuration needs. It includes two black closure panels (3U, 7U), which can be replaced with optional 19" panels for additional customization such as fan or vent panels.

The bottom of the rack is just as thoughtfully designed, with an open access area featuring a 10-32 threaded grounding stud, 3/8"-16 threaded T-nuts for leg levelers, and holes for anchor bolts. The opening dimensions ensure compatibility with a wide range of equipment sizes.

Adjustability is key, and this rack delivers with two pairs of 11-gauge steel 10-32 threaded rails, complete with numbered RU increments for precise equipment mounting. The rails can be mounted in either direction, offering flexibility for your setup. Wire management is made easy with ample clearance from the front rail to the outside frame and to an optional surface-mount door.

Installation is streamlined with black pilot point screws featuring captive washers, ensuring a quick and secure setup. Compliance is never a concern, as the LGNR 44U rack meets EIA/TIA standards, is RoHS compliant, and UL 2416 Listed in both the U.S.A. and Canada.

Choose the LGNR 44U 32" Depth Open Frame Narrow Gangable Rack for a sturdy, durable, and high-quality solution to house and protect your valuable electronic equipment.
