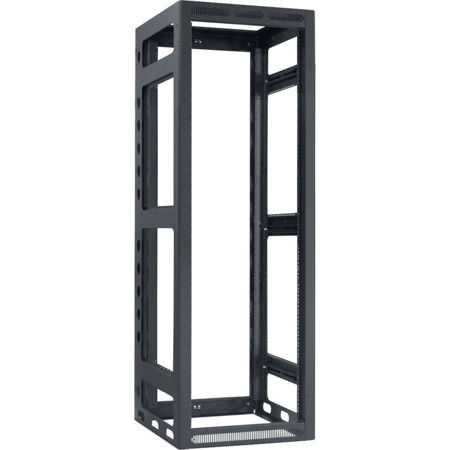

Lowell Manufacturing LGR 35U 27" Depth Open Frame Gangable Rack without Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

SKU: LWLGR3527LRD MFR: LGR-3527-LRD
Earn VIP Reward Points

Key Features

  • Maximize space with this 35U open frame rack, perfect for home or office server equipment.
  • Ensure top-notch cable management using the multi-bay routing of this gangable rack.
  • Made with durable, certified U.S. steel, this rack enclosure supports up to 3150lbs.
  • Enjoy easy assembly and configuration with adjustable rails for your rack-mount devices.
  • This EIA/TIA compliant rack offers a secure and reliable solution for your equipment.
  • Optimize cooling with the open frame design, preventing overheating in your rack cabinet.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGR-3527-LRD Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    35U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    24.34 x 61.38" (618.24 x 1559.06mm)

  • Top Opening

    7U

  • Bottom Opening Depth and Width

    22.88 x 19.94" (581.15 x 506.48mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    23.06 x 27 x 67.38" (585.73 x 685.80 x 1711.46mm)

About Lowell Manufacturing LGR-3527-LRD

When it comes to organizing and protecting your valuable electronic equipment, the LGR 35U 27" Depth Open Frame Gangable Rack stands out with its exceptional build quality and design flexibility. Constructed from fully welded, certified U.S. steel, this rack boasts a 16-gauge frame and a 14-gauge base, both reinforced at load-bearing junctions to ensure sturdy and reliable support that's equivalent to 11-gauge steel strength.

The rack's black wrinkle powder epoxy finish not only adds to its durability but also provides a professional appearance with beveled edge corners at both the front and rear. The front of the rack features upper and lower vents for improved airflow, essential for maintaining the performance of your equipment. Additionally, the frame nutserts are prepped to accommodate an optional surface-mount door, available for separate purchase, which can swing either left or right.

At the rear, the rack includes removable knockout panels above and below the door area, with combination EKOs for various conduit sizes and KOs for wireless antennae, enhancing its versatility. A removable blank project panel is also present for additional customization. While the standard model includes a recessed rear door with vents and a key lock, this particular model omits the rear door, offering an open access design for easy equipment management.

The sides of the rack feature a vertical array of 2" diameter holes and 4" x 1.5" obround openings along the base, facilitating seamless cabling between racks. For those seeking additional enclosure, optional side panels are available. The bottom of the rack is thoughtfully designed with a 10-32 threaded grounding stud, 3/8"-16 threaded T-nuts for leg levelers, and holes for anchor bolts, ensuring a stable and secure setup.

The configurable top includes a 7U opening with riveted 10-32 threaded rails on standard 19" E.I.A. spacing, accompanied by two black closure panels that can be replaced with optional fan panels for enhanced cooling. The rear conduit plane is equally well-equipped for cable management, with ample space and knockout options.

Speaking of cable management, the rack provides abundant lacing points and nearly 2" of wire management space between the front rails and front-to-rear rail supports, making it a dream for IT professionals who prioritize neatness and organization. The rack rails themselves are a testament to the rack's high-quality construction, featuring two pairs of 11-gauge steel, 10-32 threaded rails that are fully adjustable and bi-directionally numbered for ease of use.

Installation is made quick and effortless with black pilot point screws that come with captive washers. Moreover, the rack's compliance with EIA/TIA standards, RoHS, and UL 2416 Listing in the U.S. and Canada ensures that it meets the highest industry requirements for safety and environmental considerations.

In summary, the LGR 35U 27" Depth Open Frame Gangable Rack is a durable, versatile, and high-quality solution for anyone looking to create a reliable and organized electronic equipment setup. With its adjustable rails and robust construction, it stands as a superior choice for professionals seeking a long-lasting and flexible racking system.

Lowell Manufacturing LGR-3527-LRD Features

  • Configurable top has 7U opening for 19" panels (includes solid closure panels)
  • Open frame with multiple 2" holes on sides for cable runs between racks
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management: Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize space with this 35U open frame rack, perfect for home or office server equipment.
  • Ensure top-notch cable management using the multi-bay routing of this gangable rack.
  • Made with durable, certified U.S. steel, this rack enclosure supports up to 3150lbs.
  • Enjoy easy assembly and configuration with adjustable rails for your rack-mount devices.
  • This EIA/TIA compliant rack offers a secure and reliable solution for your equipment.
  • Optimize cooling with the open frame design, preventing overheating in your rack cabinet.

What's in the box:

  • Lowell Manufacturing LGR 35U 27 " Depth Open Frame Gangable Rack without Rear Door
  • 2x Black Closure Panel (3U/4U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
