Lowell Manufacturing LGR 35U 32" Depth Open Frame Gangable Rack without Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

SKU: LWLGR3532LRD MFR: LGR-3532-LRD
Earn VIP Reward Points

Key Features

  • Maximize airflow with this open frame rack, keeping your valuable equipment cool.
  • This 35U rack enclosure is EIA/TIA compliant, ensuring top-tier industry standards.
  • Manage cables easily with multi bay routing, keeping your setup organized and efficient.
  • Made with certified U.S. steel, this rack mount offers robust durability and strength.
  • Achieve ultimate security with a sturdy frame, supporting up to 3150lbs of equipment.
  • Enjoy easy accessibility with adjustable rails, customizing your rack configuration.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGR-3532-LRD Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    35U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    29.34 x 61.38" (745.24 x 1559.06mm)

  • Top Opening

    10U

  • Bottom Opening Depth and Width

    27.88 x 19.94" (708.15 x 506.48mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    23.06 x 32 x 67.38" (585.73 x 812.80 x 1711.46mm)

About Lowell Manufacturing LGR-3532-LRD

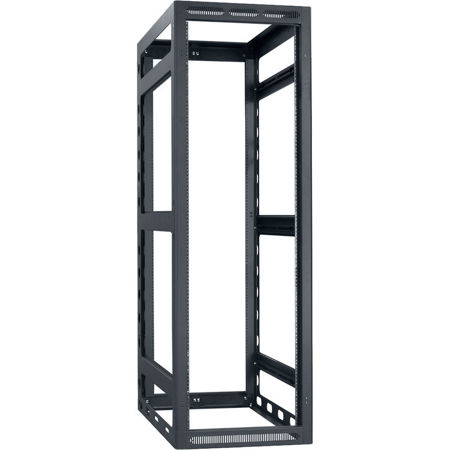

Explore the robust and reliable LGR 35U 32" Depth Open Frame Gangable Rack, a high-quality solution for your electronic equipment storage needs. This sturdy rack is constructed from fully welded, certified U.S. steel, featuring a 16-gauge frame and a 14-gauge base, reinforced at all load-bearing junctions for superior strength and durability. The black wrinkle powder epoxy finish adds a sleek touch to its robust design.

The rack's open frame design, coupled with adjustable rails, offers flexibility and easy customization for different types of installations. It's perfect for organizing and storing servers, routers, switches, and other networking devices. The front of the rack features upper and lower vents for optimal airflow, ensuring your equipment stays cool.

The rack comes with a removable rear knockout panel, offering combination EKOs for conduit (1/2"-3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"). The rear vertical array of 2" dia. holes and 4" x 1.5" obround openings along the base facilitate easy cabling between racks.

The top of the rack features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing, and includes two black 19"W closure panels (3U, 4U) that can be replaced with optional 19" fan panels. The generous wire management space of nearly 2" between front rails and front-to-rear rail supports, along with abundant cable lacing points, ensures efficient cable management.

The rack's 24U fully adjustable rails are made of 11-gauge steel with bi-directional numbered RU increments, offering ample space for your equipment. The rack is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S. and Canada, ensuring it meets the highest standards of safety and performance.

Whether you're setting up a data center, server room, or network closet, the LGR 35U 32" Depth Open Frame Gangable Rack is a durable and versatile choice that delivers reliable performance and easy customization.

Lowell Manufacturing LGR-3532-LRD Features

  • Configurable top has 10U opening for 19" panels (includes solid closure panels)
  • Open sides with multiple openings
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management: multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize airflow with this open frame rack, keeping your valuable equipment cool.
  • This 35U rack enclosure is EIA/TIA compliant, ensuring top-tier industry standards.
  • Manage cables easily with multi bay routing, keeping your setup organized and efficient.
  • Made with certified U.S. steel, this rack mount offers robust durability and strength.
  • Achieve ultimate security with a sturdy frame, supporting up to 3150lbs of equipment.
  • Enjoy easy accessibility with adjustable rails, customizing your rack configuration.

What's in the box:

  • Lowell Manufacturing LGR 35U 32 " Depth Open Frame Gangable Rack without Rear Door
  • 2x Black Closure Panel (3U/7U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
