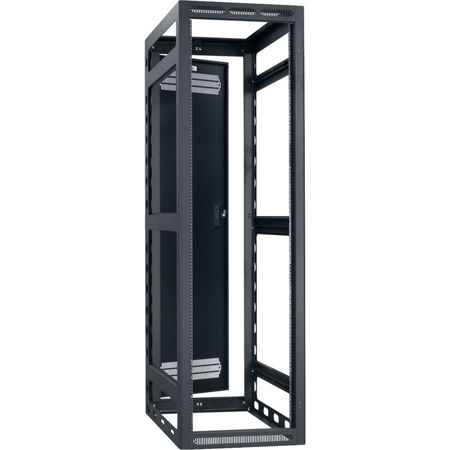

Lowell Manufacturing LGR 40U 32" Depth Open Frame Gangable Rack with Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

SKU: LWLGR4032 MFR: LGR-4032
Earn VIP Reward Points

Key Features

  • Maximize server room space with this 40U open frame rack, perfect for cable management.
  • Ensure equipment security with the rear door and keylock on this sturdy server rack.
  • Enjoy easy access with adjustable rails, ideal for multi-bay cable routing in your rack.
  • Built with durable, certified U.S. steel, this rack enclosure supports up to 3150lbs.
  • Simplify installations using the removable knockout panel for efficient cable routing.
  • Keep your equipment cool; this rack's vented door optimizes airflow within the cabinet.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGR-4032 Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    40U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    29.34 x 70.13" (745.24 x 1781.31mm)

  • Top Opening

    10U

  • Bottom Opening Depth and Width

    27.88 x 19.94" (708.15 x 506.48mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    23.06 x 32 x 76.13" (585.73 x 812.80 x 1933.71mm)

About Lowell Manufacturing LGR-4032

Let the LGR 40U 32" Depth Open Frame Gangable Rack be your ultimate solution for organizing and storing your electronic equipment. This sturdy and reliable rack is designed with a fully welded 16-gauge steel frame and a 14-gauge base, reinforced at all load-bearing junctions, offering robust support and strength equivalent to 11-gauge steel.

The rack's black wrinkle powder epoxy finish not only adds to its aesthetic appeal but also enhances its durability. The beveled edge corners at the front and rear add a touch of sophistication to its design. The front of the rack features upper and lower vents for efficient airflow, ensuring your equipment stays cool.

The rack comes with a removable rear door, equipped with vents and a key lock for secure storage. The door can swing either left or right, offering flexibility based on your space requirements. The rack also includes removable knockout panels above and below the door, with combination EKOs for conduit (1/2"-3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"), providing versatile cable management options.

The rack's open access sides feature a rear vertical array of 2" dia. holes and 4" x 1.5" obround openings along the base, facilitating easy cabling between racks. The bottom of the rack includes a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts, ensuring stability and safety.

The top of the rack is configurable and features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing. It includes two black 19"W closure panels (3U, 4U) which can be replaced with optional 19" fan panels for enhanced ventilation. The rack also offers abundant cable lacing points and generous wire management space of nearly 2" between front rails and front-to-rear rail supports.

The rack comes with two pairs of 11-gauge steel 10-32 threaded rails on E.I.A. spacing with bi-directional numbered RU increments, allowing for easy and flexible equipment installation. The rack is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S. and Canada, ensuring it meets the highest standards of safety and quality.

Lowell Manufacturing LGR-4032 Features

  • Configurable top has 10U opening for 19" panels (includes solid closure panels)
  • Open frame with multiple 2" holes on sides for cable runs between racks
  • Open front (optional door)
  • Rear door with top/bottom vents and key lock
  • Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management: Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize server room space with this 40U open frame rack, perfect for cable management.
  • Ensure equipment security with the rear door and keylock on this sturdy server rack.
  • Enjoy easy access with adjustable rails, ideal for multi-bay cable routing in your rack.
  • Built with durable, certified U.S. steel, this rack enclosure supports up to 3150lbs.
  • Simplify installations using the removable knockout panel for efficient cable routing.
  • Keep your equipment cool; this rack's vented door optimizes airflow within the cabinet.

What's in the box:

  • Lowell Manufacturing LGR 40U 32 " Depth Open Frame Gangable Rack with Rear Door
  • Recessed Rear Door with Vent and Keylock
  • 2x Black Closure Panel (3U/7U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
