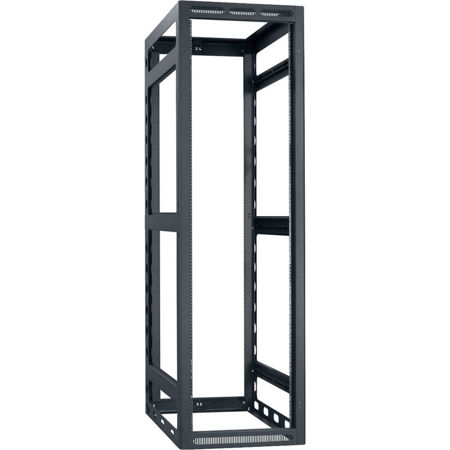

Lowell Manufacturing LGR 40U 36" Depth Open Frame Gangable Rack without Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

SKU: LWLGR4036LRD MFR: LGR-4036-LRD
Earn VIP Reward Points

Key Features

  • Optimize your server room with this 40U open frame rack, perfect for cable management.
  • Ensure top-notch security for your equipment with this robust, UL Listed rack enclosure.
  • Achieve superior cooling for your servers using this open frame rack's accessible design.
  • Customize your setup with modular components on this gangable rack, made with U.S. steel.
  • Enjoy long-lasting durability with this 16-gauge steel rack, built to hold up to 3150lbs.
  • Simplify multi-bay cable routing with 4x adjustable rails on this 36" depth rack.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGR-4036-LRD Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    40U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    33.34 x 70.13" (846.84 x 1781.31mm)

  • Top Opening

    10U

  • Bottom Opening Depth and Width

    31.88 x 19.94" (809.75 x 506.48mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    23.06 x 36 x 76.13" (585.73 x 914.40 x 1933.71mm)

About Lowell Manufacturing LGR-4036-LRD

While providing a robust and versatile solution for your electronic equipment organization needs, the LGR 40U 36" Depth Open Frame Gangable Rack stands out with its sturdy and durable construction. This rack is fully welded from certified 16-gauge U.S. steel, reinforced at all load-bearing junctions with a 14-gauge base, offering strength equivalent to 11-gauge steel. The seamless side frame construction ensures long-lasting durability, while the black wrinkle powder epoxy finish adds a sleek, professional touch.

The rack's design features beveled edge corners at the front and rear, along with upper and lower vents at the front for optimal airflow. The frame nutserts are ready to accommodate an optional surface-mount door, available for separate purchase, which can swing either left or right for your convenience.

The rear of the rack includes removable knockout panels above and below the door, with combination EKOs for conduit sizes ranging from 1/2"-3/4" and 1"-1-1/2", and KOs for wireless antennae of 1/2". A removable blank project panel is also located in the frame below the door. The standard model comes with a recessed rear door, equipped with vents and a key lock, but can be customized without a rear door by adding the "LRD" suffix to the model number.

The rack's sides feature an open-access design with a rear vertical array of 2" diameter holes and 4" x 1.5" obround openings along the base for efficient cable routing between racks. The bottom of the rack includes a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts, providing a spacious 22.88"D x 19.94"W opening.

The top of the rack is configurable and features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing. It includes two black 19"W closure panels, which can be replaced with optional 19" fan panels. The 6"D rear conduit plane offers combination EKOs for conduit sizes from 1/2"-3/4" and 1"-2", KOs for wireless antennae of 1/2", and ample room to field-punch an opening for 4" diameter conduit.

The rack's cable management system provides abundant lacing points and nearly 2" of wire management space between the front rails and front-to-rear rail supports. The rack rails are fully adjustable, made of 11-gauge steel with bi-directional numbered RU increments, and finished in black. The rack also includes black pilot point screws with captive washers for quick installation. This product is EIA/TIA compliant, RoHS compliant, and UL 2416 listed in the U.S. and Canada, ensuring it meets the highest industry standards.

Lowell Manufacturing LGR-4036-LRD Features

  • Configurable top has 10U opening for 19" panels (includes solid closure panels)
  • Open frame with multiple 2" holes on sides for cable runs between racks
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management: Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your server room with this 40U open frame rack, perfect for cable management.
  • Ensure top-notch security for your equipment with this robust, UL Listed rack enclosure.
  • Achieve superior cooling for your servers using this open frame rack's accessible design.
  • Customize your setup with modular components on this gangable rack, made with U.S. steel.
  • Enjoy long-lasting durability with this 16-gauge steel rack, built to hold up to 3150lbs.
  • Simplify multi-bay cable routing with 4x adjustable rails on this 36" depth rack.

What's in the box:

  • Lowell Manufacturing LGR 40U 36 " Depth Open Frame Gangable Rack without Rear Door
  • 2x Black Closure Panel (3U/7U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
