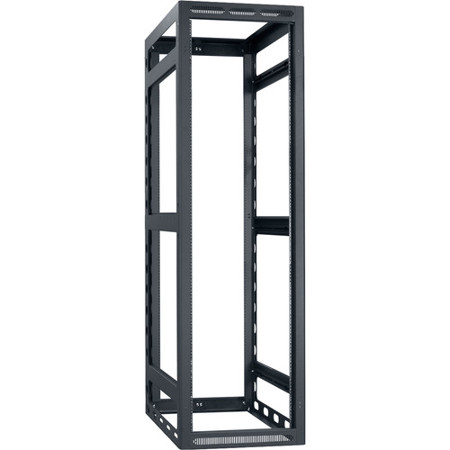

Lowell Manufacturing LGR 40U 42" Depth Open Frame Gangable Rack without Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

SKU: LWLGR4042LRD MFR: LGR-4042-LRD
Earn VIP Reward Points

Key Features

  • Maximize server room space with this 40U open frame rack, perfect for cable management.
  • Ensure top-notch security for your equipment with this sturdy, UL-listed server rack.
  • Enjoy easy accessibility to your servers with the open design of this gangable rack.
  • This durable rack enclosure is made with certified U.S. steel for long-lasting reliability.
  • Customize your setup! This modular rack features adjustable rails for multi-bay routing.
  • Keep your equipment cool; this rack's open frame design promotes optimal cooling airflow.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGR-4042-LRD Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    40U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    39.34 x 70.13" (999.24 x 1781.31mm)

  • Top Opening

    17U

  • Bottom Opening Depth and Width

    37.88 x 19.94" (962.15 x 506.48mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    23.06 x 42 x 76.13" (585.73 x 1066.80 x 1933.71mm)

About Lowell Manufacturing LGR-4042-LRD

Under the category of robust and versatile storage solutions, the LGR 40U 42" Depth Open Frame Gangable Rack stands out. This rack, devoid of a rear door, is designed with four adjustable rails, making it ideal for multi-bay cable routing. The rack's construction is a testament to its durability, featuring a fully welded 16-gauge steel frame and a 14-gauge base, reinforced at all load-bearing junctions. This strength is equivalent to that of 11-gauge steel, ensuring robust support for your equipment.

The rack's aesthetic appeal is enhanced by its black wrinkle powder epoxy finish, while its beveled edge corners on the front and rear add a touch of sophistication. Ventilation is well taken care of with upper and lower vents at the front. The rack's frame nutserts are prepared for the addition of an optional surface-mount door, which can swing either left or right, and needs to be ordered separately.

The rear of the rack features removable knockout panels above and below the door, with combination EKOs for conduit (1/2"-3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"). A removable blank project panel is also included in the frame below the door. The standard model comes with a recessed rear door with vents and a key lock, but this can be omitted by adding the "LRD" suffix to the model number.

The rack's sides are open access, featuring a rear vertical array of 2" diameter holes and 4" x 1.5" obround openings along the base for efficient cabling between racks. Optional side panels can extend .625". The bottom of the rack is also open access, including a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts.

The top of the rack is configurable and comes with closure panels. The 17U opening features riveted 10-32 threaded rails on 19" E.I.A. spacing and includes three black 19"W closure panels (3U, 4U, 10U) which can be replaced with optional 19" fan panels. The rack also boasts a 6"D rear conduit plane with combination EKOs for conduit (1/2"-3/4" and 1"-2"), KOs for wireless antennae (1/2"), and room to field-punch an opening for 4" diameter conduit.

Cable management is a breeze with the rack's abundant cable lacing points and generous wire management space of nearly 2" between front rails and front-to-rear rail supports. The rack rails are fully adjustable, featuring two pairs of 11-gauge steel 10-32 threaded rails on E.I.A. spacing with bi-directional numbered RU increments. The rack comes with black pilot point screws with captive washers for quick installation. This product is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S. and Canada.

Lowell Manufacturing LGR-4042-LRD Features

  • Configurable top has 17U opening for 19" panels (includes solid closure panels)
  • Open frame with multiple 2" holes on sides for cable runs between racks
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management: Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize server room space with this 40U open frame rack, perfect for cable management.
  • Ensure top-notch security for your equipment with this sturdy, UL-listed server rack.
  • Enjoy easy accessibility to your servers with the open design of this gangable rack.
  • This durable rack enclosure is made with certified U.S. steel for long-lasting reliability.
  • Customize your setup! This modular rack features adjustable rails for multi-bay routing.
  • Keep your equipment cool; this rack's open frame design promotes optimal cooling airflow.

What's in the box:

  • Lowell Manufacturing LGR 40U 42 " Depth Open Frame Gangable Rack without Rear Door
  • 3x Black Closure Panel (3U/4U/10U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
