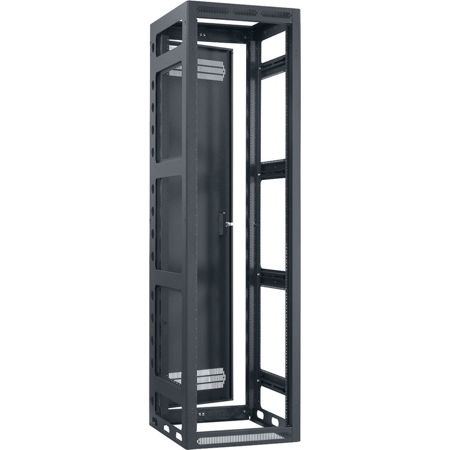

Lowell Manufacturing LGR 44U 22" Depth Open Frame Gangable Rack with Rear Door and 2x Adjustable Rails for Multi Bay Cable Routing, Black

Why settle for anything less than the pinnacle of organizational efficiency and durability for your electronic equipment The LGR 44U 22" Depth Open Frame Gangable Rack is a testament to Lowell Manufacturing's commitment to high-quality, sturdy, and reliable storage solutions. Crafted from fully welded certified U.S. steel, this rack boasts a robust 16-gauge frame with seamless side frame construction, and a 14-gauge base, all reinforced at load-bearing junctions to ensure strength equivalent to 11-gauge steel.

The sleek black wrinkle powder epoxy finish not only adds to the durability but also provides a professional aesthetic that seamlessly integrates into any server room or data center environment. The design features beveled edge corners on both the front and rear, reducing the risk of injury or snagging during equipment installation and maintenance.

Ventilation is a breeze with front upper and lower vents, ensuring your equipment stays cool under any load. The frame nutserts are prepped to accommodate an optional surface-mount door, which can be installed to swing left or right, according to your preference (front door sold separately).

Accessibility is a key feature of this rack. The rear section includes removable knockout panels above and below the door, with combination EKOs for conduit (1/2"-3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"), enhancing the rack's versatility. A removable blank project panel is also found below the door for additional customization.

Security isn't overlooked, with the standard model including a recessed rear door complete with vents and a key lock, which can also swing left or right. For those who prefer an open design, the rear door can be omitted by adding an "LRD" suffix to the model number.

The open sides of the rack feature a rear vertical array of 2" diameter holes and 4" x 1.5" obround openings along the base, perfect for streamlined cabling between racks. Optional side panels can be added for extra protection and a finished look.

The bottom of the rack is just as thoughtfully designed, with a 10-32 threaded grounding stud, 3/8"-16 threaded T-nuts for leg levelers, and holes for anchor bolts, ensuring stability and safety. The open access bottom and configurable top with closure panels allow for a multitude of setup options, accommodating various equipment sizes and configurations.

Cable management is made easy with abundant lacing points and nearly 2" of generous wire management space between the front rails and front-to-rear rail supports. The rack rails themselves are a marvel, with one pair of fully adjustable 11-gauge steel 10-32 threaded rails on E.I.A. spacing, complete with bi-directional numbered RU increments for precise equipment alignment.

Compliance is key, and this rack meets all standards, being EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in both the U.S. and Canada. The included black pilot point screws with captive washers ensure quick and secure installation.

In summary, the LGR 44U 22" Depth Open Frame Gangable Rack with Rear Door and 2x Adjustable Rails is the epitome of versatility, strength, and professional-grade quality, making it the ideal choice for anyone seeking a superior cable routing and electronic equipment organizational solution.
