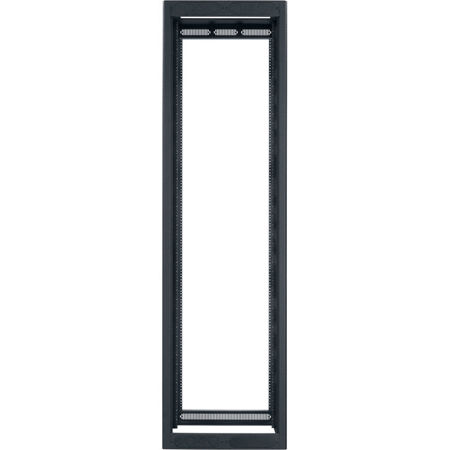

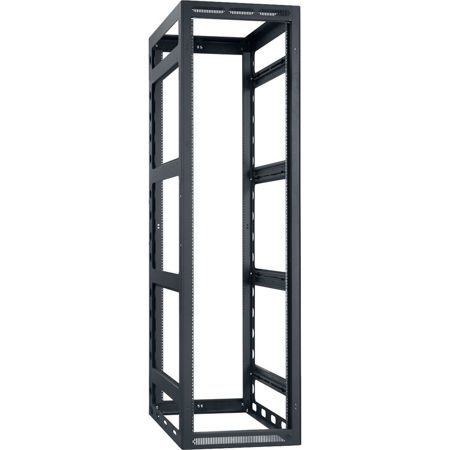

Lowell Manufacturing LGR 44U 32" Depth Open Frame Gangable Rack without Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

SKU: LWLGR4432LRD MFR: LGR-4432-LRD
Earn VIP Reward Points

Key Features

  • Maximize server cooling with this 44U open frame rack, ensuring optimal airflow and performance.
  • Enjoy top-tier security; this rack enclosure is EIA/TIA compliant and UL 2416 Listed for safety.
  • Simplify cable management using the multi-bay routing and knockout panels for a tidy setup.
  • Benefit from superior durability with its reinforced 14-gauge steel top and bottom construction.
  • Achieve ultimate accessibility; the open frame design allows easy equipment installation and maintenance.
  • Customize your setup; this modular rack supports up to 3150lbs, perfect for diverse equipment needs.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGR-4432-LRD Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    44U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    29.34 x 77.13" (745.24 x 1959.11mm)

  • Top Opening

    10U

  • Bottom Opening Depth and Width

    27.88 x 19.94" (708.15 x 506.48mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    23.06 x 32 x 83.13" (585.73 x 812.80 x 2111.51mm)

About Lowell Manufacturing LGR-4432-LRD

Before you finalize your server room or data center setup, consider the LGR 44U 32" Depth Open Frame Gangable Rack, a premium solution for organizing and protecting your valuable electronic equipment. This rack is constructed from fully welded, certified U.S. steel, boasting a 16-gauge frame and a 14-gauge base, ensuring a sturdy and durable foundation for your networking devices. The seamless side frame construction, reinforced at all load-bearing junctions, offers robust support and strength equivalent to 11-gauge steel, making it a reliable choice for heavy-duty applications.

The black wrinkle powder epoxy finish not only adds a professional look to the rack but also provides an extra layer of protection against wear and tear. The design features beveled edge corners on both the front and rear, reducing the risk of injury or damage to cables when accessing equipment. The front of the rack includes upper and lower vents for improved airflow, essential for maintaining optimal operating temperatures for your equipment.

For customization and versatility, the frame nutserts are pre-installed, ready to accommodate an optional surface-mount door with either left or right swing - order the front door separately to suit your specific needs. The rear of the rack is equally thoughtful in design, with removable knockout panels above and below the door area, featuring combination EKOs for various conduit sizes and KOs for wireless antennae, enhancing your cable management options.

The rack's open sides provide a rear vertical array of 2" diameter holes and 4" x 1.5" obround openings along the base, facilitating seamless cabling between racks. Optional side panels can be added for additional protection and aesthetics. The bottom of the rack includes a 10-32 threaded grounding stud, 3/8"-16 threaded T-nuts for leg levelers, and holes for anchor bolts, ensuring a secure and stable setup.

The configurable top of the rack features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing, accompanied by two black closure panels (3U, 7U) that can be replaced with optional 19" fan panels for enhanced cooling. The rear conduit plane is designed with combination EKOs for various conduit sizes, KOs for wireless antennae, and space to field-punch an opening for larger conduits.

Cable management is made easy with abundant lacing points and nearly 2" of wire management space between the front rails and front-to-rear rail supports. The rack rails are fully adjustable, with two pairs of 11-gauge steel 10-32 threaded rails on E.I.A. spacing, featuring bi-directional numbered RU increments for precise equipment mounting.

Installation is streamlined with black pilot point screws with captive washers, and the rack's compliance with EIA/TIA and RoHS standards, as well as UL 2416 Listing in the U.S. and Canada, ensures adherence to industry regulations and safety standards.

Choose the LGR 44U 32" Depth Open Frame Gangable Rack for a spacious, versatile, and functional solution that will keep your electronic equipment organized, accessible, and secure.

Lowell Manufacturing LGR-4432-LRD Features

  • Configurable top has 10U opening for 19" panels (includes solid closure panels)
  • Open frame with multiple 2" holes on sides for cable runs between racks
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 (printed RU scale)
  • Cable Management: Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize server cooling with this 44U open frame rack, ensuring optimal airflow and performance.
  • Enjoy top-tier security; this rack enclosure is EIA/TIA compliant and UL 2416 Listed for safety.
  • Simplify cable management using the multi-bay routing and knockout panels for a tidy setup.
  • Benefit from superior durability with its reinforced 14-gauge steel top and bottom construction.
  • Achieve ultimate accessibility; the open frame design allows easy equipment installation and maintenance.
  • Customize your setup; this modular rack supports up to 3150lbs, perfect for diverse equipment needs.

What's in the box:

  • Lowell Manufacturing LGR 44U 32 " Depth Open Frame Gangable Rack without Rear Door
  • 2x Black Closure Panel (3U/7U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
