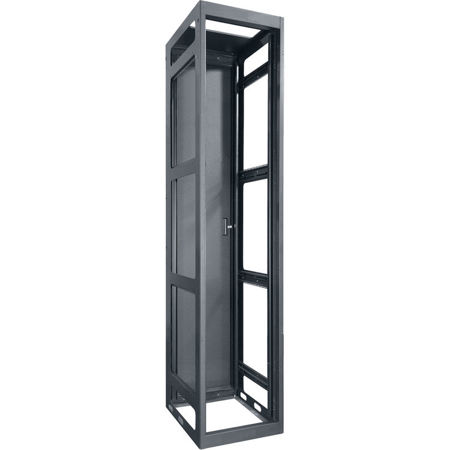

Lowell Manufacturing LGTR 54U 36" Depth Open Frame Gangable Tall Rack with Rear Door and 4x Adjustable Rails for Multi-Bay Cable Routing, Black

It's the LGTR 54U 36" Depth Open Frame Gangable Tall Rack, a versatile and robust solution for your multi-bay cable routing needs. This extra-tall, 54U gangable rack is constructed from fully welded, certified U.S. steel. The 16-gauge steel frame and 14-gauge base are reinforced at all load-bearing junctions, offering strength equivalent to 11-gauge steel for superior support and durability.

The rack features a seamless side frame construction and a black wrinkle powder epoxy finish, ensuring it's not only sturdy but also aesthetically pleasing. The beveled edge corners on the front and rear add a touch of sophistication to its design.

The front frame of this rack comes with nutserts, ready to accommodate an optional surface-mount door, which can be ordered separately. The door can swing either to the left or right, offering flexibility based on your setup. The rear of the rack includes a removable knockout panel in the frame above and below the door, with combination EKOs for conduit (1/2"- 3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2").

The standard model comes with a recessed rear door featuring a key lock for added security. If you prefer a rack without a rear door, simply add the "LRD" suffix to the model number when ordering.

The rack's sides offer open access with obround openings along the base for easy cabling between racks. An optional side panel can be added, increasing the overall width by 1" per side. The top of the rack is configurable and includes two black closure panels (3U, 7U) that can be replaced with optional 19" panels for fan or vent installation.

The bottom of the rack also offers open access and includes a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts. The opening measures 27.88"D x 18.89"W.

The LGTR 54U rack comes with two pairs of fully adjustable 11-gauge steel 10-32 threaded rails on E.I.A. spacing with numbered RU increments. These rails can be mounted in either direction and offer ample clearance for wire management.

The rack includes black pilot point screws with captive washers for quick installation. It complies with EIA/TIA standards, is RoHS compliant, and is UL 2416 listed in the U.S.A. and Canada. This rack is a reliable and efficient solution for your cable routing and equipment storage needs.
