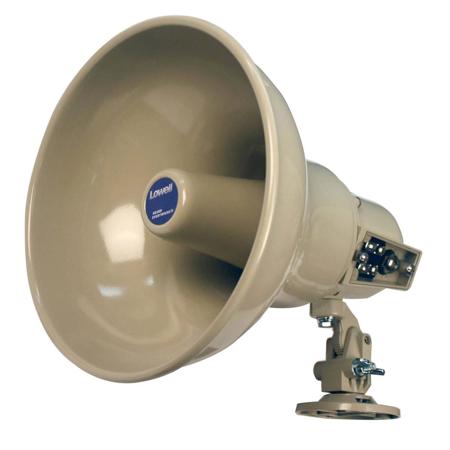

Lowell Manufacturing LH-15TA 15W Re-Entrant Paging Horn, Includes 70/25V Transformer & Universal Swivel Mount Bracket, Beige

Double re-entrant metal horn with high efficiency 15W compression driver for clear voice paging and tone signaling in indoor or outdoor applications is ideal for use where a weather-resistant horn is specified for public address/signaling applications that require high intelligibility (e.g. schools, recreational facilities, warehouses, distribution centers, parking facilities, commercial buildings). It operates within a frequency range of 537Hz-4.5kHz (+6dB) with a sensitivity of 112.2dB log average (1W/1M) 124.0dB maximum SPL (calculated based on power rating and measured sensitivity).

Horn includes a high quality transformer for use in 25V, 70V or 100V distributed applications; taps are selected with a screw- driver. Tap selector and screw terminal connections are located on rear, in a recessed area with integral strain relief and protective plastic cover. Horn mounts with universal swivel bracket for efficient installation and positioning. Mounting bracket base measures 2.875" dia. with 3 equally spaced holes (.28" dia.). Horn assembly measures 8.94" dia. x 9.38"D and features all-metal construction with durable beige epoxy finish for long service life.
