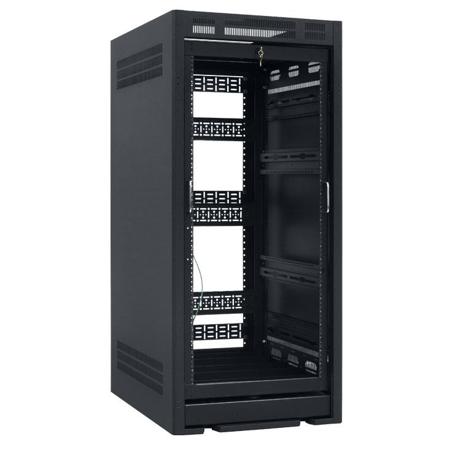

Lowell Manufacturing LHR-2432 Rack-Rollout/Rotating System, 24U, 32" Depth, Black

LHR-2432 which shall be made in the U.S.A. with certified U.S. steel and have overall measurements of 53.86"H x 24.00"W x 32.875"D with panel space of 24 rack units and useable depth of 26.00". It shall be comprised of an external welded steel cabinet and an internal pull-out rack that is connected to an inner platform caster base with stainless steel ball transfers capable of supporting 750 lbs. The external cabinet shall have vented sides, open front, open back, three rear lacing panels, 10U EIA top opening with solid closure panels and top knockouts for conduit and wireless antennas.

It shall have a black wrinkle powder epoxy finish, provisions for anchoring and a ground wire to the internal rack. The internal rack shall be a steel assembly with corner post mounting rails tapped 10-32, three rear lacing panels and side/rear braces. It shall be mounted to the caster base and pull-out smoothly from the cabinet to provide free rotation to rear connections. The internal rack/caster base assembly shall be capable of disengaging from the external cabinet for shop wiring and testing.

Two-part rack features a fully welded cabinet and an interior rollout rack that rotates to access equipment and connections, a design that's well suited for back-to-back or against-the-wall installations. The inner rack and its platform base can disengage from the cabinet for shop wiring. Black wrinkle powder epoxy finish.

Exterior Cabinet
• Configurable top with 10U opening (solid closure panels included)
• Welded sides with vents
• Open front (optional door)
• Open back (optional rear access cover)
• Open base
• Green ground wire (cabinet to interior rack)
• Three lacing panels
• Side supports for optional accessories
• Pilot Point screws with captive washers
• Provisions for anchoring
• Beveled corners
• Black wrinkle powder epoxy finish

Interior (Pull-out Rack)
• 50.11 in. H (24U)
• 24 in. D (26 in. useable allows equipment to extend 2 in. beyond rack)
• Maximum rollout 25.00 in. (57.875 in. overall rollout depth)
• Corner post mounting rails tapped 10-32 with RU increments marked
• Inner platform base with casters and stainless steel ball transfers
• Three lacing panels
• Load capacity 750 lbs.
• Installation: Allow 3.5 in. minimum clearance on both sides for rotation
