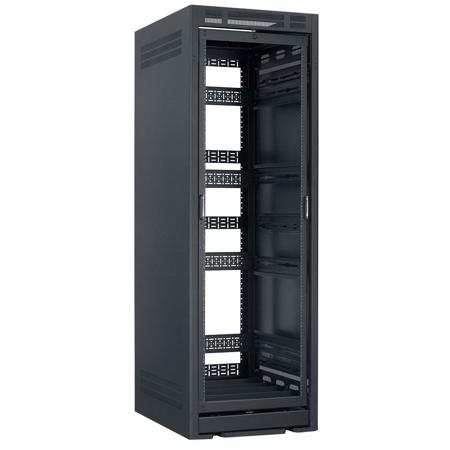

Lowell Manufacturing LHR-3532 Rack-Rollout/Rotating System, 35U, 32" Depth, Black

Discover the LHR-3532 Rack-Rollout/Rotating System, a robust and reliable solution for your data center or server room storage needs. Crafted in the U.S.A. with certified U.S. steel, this durable system boasts dimensions of 73.27"H x 24.00"W x 32.875"D, offering a generous 35U rack space and a usable depth of 26.00".

The LHR-3532 is a two-part system, featuring an external welded steel cabinet and an internal pull-out rack. The internal rack is connected to an inner platform caster base with stainless steel ball transfers, capable of supporting a hefty load of up to 750 lbs.

The external cabinet is designed with vented sides, an open front and back, and four rear lacing panels. It also features a 10U EIA top opening with solid closure panels and top knockouts for conduit and wireless antennas. Finished in a black wrinkle powder epoxy, the cabinet also includes provisions for anchoring and a ground wire to the internal rack.

The internal rack is a sturdy steel assembly with corner post mounting rails tapped 10-32, four rear lacing panels, and side/rear braces. It smoothly pulls out from the cabinet, providing free rotation to rear connections. The rack and its platform base can disengage from the cabinet for convenient shop wiring and testing.

This high-quality rack system is perfect for back-to-back or against-the-wall installations. With a maximum rollout of 25.00" and an overall rollout depth of 57.875", it provides easy access to equipment and connections. The LHR-3532 Rack-Rollout/Rotating System is not just a storage solution, but a versatile tool for efficient data center management.
