16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced
44U
EIA/TIA compliant
UL 2416 Listed
RoHS compliant
Certified U.S. steel
Made in Missouri, U.S.A.
29.34 x 77" (745.24 x 1955.80mm)
10U
27.88 x 18.89" (708.15 x 479.81mm)
3150lbs (1428.83kg)
22 x 32 x 83.13" (558.80 x 812.80 x 2111.51mm)

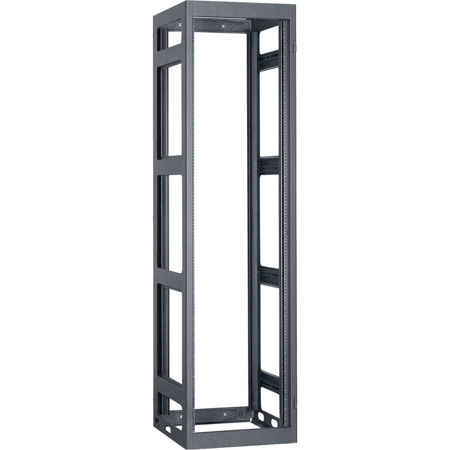

What you're looking at is the LGNR 44U 32" Depth Open Frame Narrow Gangable Rack, a robust and reliable solution for your electronic equipment storage needs. This sturdy rack is constructed from fully welded, certified U.S. steel. The 16-gauge frame, reinforced with a 14-gauge base, ensures durability and the ability to withstand heavy loads, offering strength equivalent to 11-gauge steel.
The rack's black wrinkle powder epoxy finish adds a professional touch, while its beveled edge corners on the front and rear enhance its sleek design. The front frame comes with nutserts, ready to accommodate an optional surface-mount door, which can be ordered separately and can swing either left or right.
The rear of the rack features a removable knockout panel in the frame, both above and below the door, with combination EKOs for conduit (1/2"- 3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"). The standard model includes a recessed rear door with a key lock, but the door can be omitted by adding the "LRD" suffix to the model number.
The sides of the rack offer open access with obround openings along the base for easy cabling between racks. An optional side panel can be added, increasing the overall width by 1" per side. The top of the rack is configurable and features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing. It includes two black closure panels (3U, 7U) that can be replaced with optional 19" panels for additional customization.
The bottom of the rack also offers open access and includes a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts. The opening measures 31.88"D x 18.89"W.
The rack comes with two pairs of 11-gauge steel 10-32 threaded rails on E.I.A. spacing with numbered RU increments. These rails can be mounted in either direction and provide ample clearance for wire management. The rack also includes black pilot point screws with captive washers for quick installation.
This product is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S.A. and Canada, ensuring it meets the highest standards of safety and quality. The LGNR 44U 32" Depth Open Frame Narrow Gangable Rack is a durable, space-saving, and versatile solution for your data center or server room.
