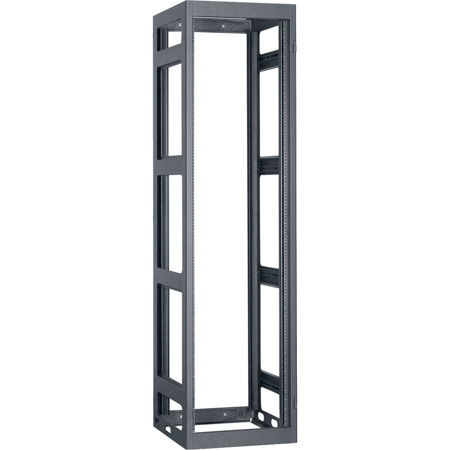

Lowell Manufacturing LGNR 44U 36" Depth Open Frame Narrow Gangable Rack without Rear Door and 4x Adjustable Rails for Multi Bay Cable Routing, Black

SKU: LWLNR4436LRD MFR: LGNR-4436-LRD
Earn VIP Reward Points

Key Features

  • Optimize your setup with this 44U open frame rack, perfect for robust cable management solutions.
  • Achieve superior cooling with the open design, ensuring your valuable equipment stays at optimal temps.
  • This gangable rack enclosure is built with durable, certified U.S. steel for long-lasting reliability.
  • Enjoy easy access to your equipment from all sides, streamlining maintenance and adjustments.
  • Mount your devices securely; this rack boasts a UL listed load capacity of 3150lbs for security.
  • Benefit from modular design; customize with accessories to meet evolving rack enclosure needs.
See More Product Details
Special Order?Estimated to Ship: 08/27/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGNR-4436-LRD Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    44U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    33.34 x 77" (846.84 x 1955.80mm)

  • Top Opening

    10U

  • Bottom Opening Depth and Width

    31.88 x 18.89" (809.75 x 479.81mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    22 x 36 x 83.13" (558.80 x 914.40 x 2111.51mm)

About Lowell Manufacturing LGNR-4436-LRD

It's the LGNR 44U 36" Depth Open Frame Narrow Gangable Rack, a versatile and reliable solution for your electronic equipment storage needs. Crafted from fully welded, certified U.S. steel, this robust 16-gauge frame boasts a strength equivalent to 11-gauge steel, ensuring durability and longevity. The 14-gauge top and bottom are reinforced at all load-bearing junctions, providing robust support for your servers, routers, switches, and other networking devices.

This 44U x 36"D gangable rack is designed with a narrow 22"W frame, making it an ideal choice for tight spaces or areas with limited floor space. The open frame design allows for easy access to your equipment, while the adjustable rails offer customization to accommodate different equipment sizes.

The rack features a black wrinkle powder epoxy finish, adding a sleek touch to its sturdy build. The front and rear corners are beveled for a refined look, and the front frame nutserts are ready to accommodate an optional surface-mount door, which can be ordered separately.

The rear of the rack includes a removable knockout panel above and below the door, with combination EKOs for conduit (1/2"- 3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"). The standard model includes a recessed rear door with a key lock for added security.

The base of the rack features obround openings for easy cabling between racks, and an optional side panel can be added to increase the overall width by 1" per side. The top of the rack features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing, and includes two black closure panels (3U, 7U) which can be replaced with optional 19" panels (fan, vent, etc.).

The bottom of the rack includes a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts. The fully adjustable rails are made from 11-ga. steel and are 10-32 threaded on E.I.A. spacing with numbered RU increments.

This Lowell Manufacturing rack is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S.A. and Canada, ensuring it meets the highest standards of quality and safety. Whether you're looking to organize your networking devices or create a streamlined cable management system, the LGNR 44U 36" Depth Open Frame Narrow Gangable Rack is a reliable and functional choice.

Lowell Manufacturing LGNR-4436-LRD Features

  • Configurable top has 10U opening for 19" panels. Solid closure panels included
  • Open sides
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 with printed RU scale
  • Cable Management: Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your setup with this 44U open frame rack, perfect for robust cable management solutions.
  • Achieve superior cooling with the open design, ensuring your valuable equipment stays at optimal temps.
  • This gangable rack enclosure is built with durable, certified U.S. steel for long-lasting reliability.
  • Enjoy easy access to your equipment from all sides, streamlining maintenance and adjustments.
  • Mount your devices securely; this rack boasts a UL listed load capacity of 3150lbs for security.
  • Benefit from modular design; customize with accessories to meet evolving rack enclosure needs.

What's in the box:

  • Lowell Manufacturing LGNR 44U 36 " Depth Open Frame Narrow Gangable Rack without Rear Door
  • 2x Black Closure Panel (3U/7U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
