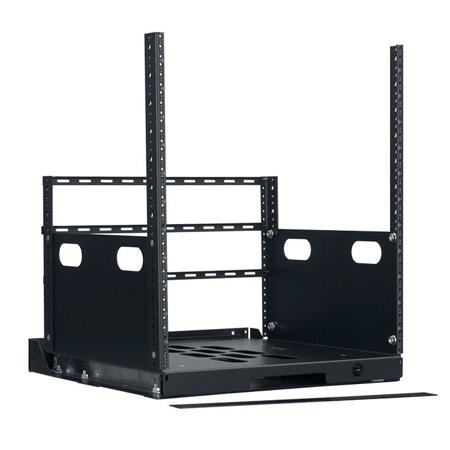

Lowell Manufacturing LPOR4-1219 12U Pull-Out Rack with 4 Slides, 19" Depth, Black
SKU: LWLPOR41219 MFR: LPOR4-1219
Earn VIP Reward Points
Key Features
- Maximize space with this 12U pull-out rack, perfect for home or small office setups.
- Ensure top-notch cable management using the included lacing bars for a tidy setup.
- This durable rack enclosure supports up to 250 lbs, safeguarding your valuable equipment.
- Enjoy easy access to your equipment with the smooth, full-extension pull-out slides.
- Keep your devices cool; the perforated panels provide essential ventilation for your rack.
- Enhance security with the locking front panel, protecting your equipment in the rack cabinet.
Special Order?Estimated to Ship: 08/08/2025
Free Shipping
See Options
Qty
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$209.99
3 Year
$299.99
4 Year
$359.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Lowell Manufacturing LPOR4-1219
The rack for built-in use measures 19.06"W x 19.22"D x 22.87"H and provide 12 rack units of panel space (12U front rails, 7U rear rails). The rack shall be made with certified U.S. steel and feature a 14-gauge steel base and 11-gauge steel mounting rails tapped 10-32. The base shall feature four heavy duty rails which shall allow the rack to slide forward while supporting a load up to 250 lbs. The rack shall include three cable lacing bars in the rear and a front security panel which shall mount with screws to deter slide-out access to equipment as needed for security. The rack shall have a black powder epoxy finish. Pull out rack (slide out rack) for use in cabinets or custom millwork, the top section of the rack slides forward to access mounted electronics.
Installation
The base can be mounted flush or recessed up to 2" in boxed wall or cabinetry. Front security panel screws into position to deter unauthorized access to mounted equipment.
Mounting Rails (corner post)
11-gauge steel corner post rails tapped 10-32 with bi-directional numbered RU increments allow rail installation in either direction. Front rails are 10U; rear rails are 7U.
Cable Management
Three (3) integral cable lacing bars in rear. Two (2) obrounds in each side panel.
Hardware
Pilot point screws with captive washers for quick assembly.
Lowell Manufacturing LPOR4-1219 Features
- 11-gauge steel corner post mounting rails tapped 10-32 (12U front, 7U rear)
- 14-gauge steel base
- Four bottom rail slides (for loads to 250 lbs.)
- Three cable lacing bars
- Front security panel screws into position
- Black powder epoxy finish
Warranty Information
This product has a limited warranty of 12 months.
