Lowell Manufacturing LPTR4-2823 28U Pull & Turn Rack System, 4-Slides, 23" Depth, Black

SKU: LWLPTR42823 MFR: LPTR4-2823
Earn VIP Reward Points

Key Features

  • Maximize space with this 28U pull & turn rack system, perfect for home electronics.
  • Ensure top-notch security for your valuable equipment with the front security panel.
  • Enjoy easy accessibility with the smooth pull-out and rotating design of this rack.
  • Optimize cable management using the included lacing bars for a tidy setup.
  • Maintain a cool system with open design, enhancing airflow to prevent overheating.
  • Rely on durable, certified U.S. steel construction for a long-lasting rack enclosure.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LPTR4-2823 Specifications

  • Rack Space

    28U

  • Bottom Side Rails

    4

  • Pulled-out Depth

    45.36" (115.21cm)

  • Compliance & Certification

    EIA/TIA compliant
    RoHS compliant
    Certified U.S. steel

  • Load capacity

    200 lbs (90.72kg)

  • Usable Depth

    23" (58.42cm)

  • Usable Height

    49" (124.46cm)

  • Dimensions (DxHxW)

    Overall: 23.38 x 51.58 x 19.13" (59.39 x 131.01 x 48.59cm)

About Lowell Manufacturing LPTR4-2823

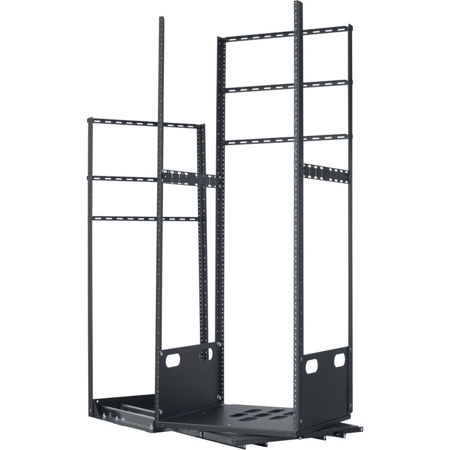

Overcome space constraints and improve accessibility with the LPTR4-2823 28U Pull & Turn Rack System. This high-quality rack system, designed for built-in applications, is constructed from certified U.S. steel and finished with a smooth black powder epoxy for durability and aesthetic appeal.

The rack system measures 51.578"H x 19.13"W x 23.38"D, providing 28U of panel space for your equipment. It features a unique pull and turn design, with a base that includes four bottom rails and an integral turntable. This allows the rack to slide forward, rotate, and lock at either 60 or 90 degrees, offering superior access to your equipment, whether it's housed in cabinets or millwork.

The LPTR4-2823 28U Pull & Turn Rack System is designed with your equipment's safety and organization in mind. It comes equipped with six cable lacing bars for effective cable management, a front security panel for added protection, and side supports with obround openings for easy cable routing. Additionally, side bracing brackets are included to ensure stability and safety.

With a load capacity of 200 lbs, this rack system can comfortably accommodate a wide range of audio and video equipment. The top section of the rack slides forward and turns either left or right, locking at several positions for optimal accessibility.

In summary, the LPTR4-2823 28U Pull & Turn Rack System offers a robust, flexible, and efficient solution for managing your equipment in any built-in application.

Lowell Manufacturing LPTR4-2823 Features

  • Removable base mounts flush or recessed (up to 1.75 in.)
  • Integral turntable with push-button release
  • Four bottom rail slides (for loads to 200 lbs.)
  • 11-gauge steel corner post mounting rails tapped 10-32
  • Front security panel attaches with screws
  • Six cable lacing bars
  • Black powder epoxy finish

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize space with this 28U pull & turn rack system, perfect for home electronics.
  • Ensure top-notch security for your valuable equipment with the front security panel.
  • Enjoy easy accessibility with the smooth pull-out and rotating design of this rack.
  • Optimize cable management using the included lacing bars for a tidy setup.
  • Maintain a cool system with open design, enhancing airflow to prevent overheating.
  • Rely on durable, certified U.S. steel construction for a long-lasting rack enclosure.

What's in the box:

  • Lowell Manufacturing Base with Integral Turntable
  • Rack Bottom
  • Front Security Panel
  • 2x Rear Corner-Post Rails
  • 6x Cable Lacing Bars
  • 4x Corner-Post Rails
  • 2x Side Stiffeners
  • Lowell Manufacturing 1 Year Limited Warranty
