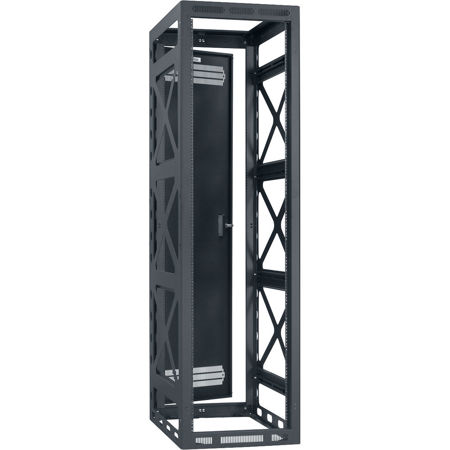

Lowell Manufacturing LSGR-4432 44U Seismic Gangable Rack with 2 Pair Adjustable Rails and Rear Door, 32" Deep, Black

When seeking a robust and reliable storage solution for your electronic equipment, consider the LSGR-4432 44U Seismic Gangable Rack. This sturdy rack, designed by Lowell Manufacturing, is renowned for its durability and strength. It's constructed from fully welded, certified U.S. steel, featuring a 16-gauge frame and a 14-gauge base, reinforced at all load-bearing junctions for robust support. The strength of this rack is equivalent to 11-gauge steel, ensuring it can withstand the weight of your equipment.

This seismic gangable rack is designed to endure seismic events, making it an ideal choice for data centers and server rooms located in earthquake-prone areas. It's been professionally engineered and certified for two categories of seismic qualifications - Life Safety/Essential Systems (Ip=1.5) and Anchorage by code (Ip=1.0).

The rack is finished in a black wrinkle powder epoxy, adding to its robustness while providing a sleek, professional look. The front of the rack features upper and lower vents, and the frame nutserts are ready to accommodate an optional surface-mount door, which can be ordered separately.

The rear of the rack includes two removable knockout panels with combination EKOs for conduit (1/2"-3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"). It also includes a recessed door with vents and a key lock for added security.

The rack's seamless X-frame construction offers multiple openings for cable runs between racks, and a rear vertical array of 2" dia. holes plus 4" x 1.5" obround openings along the base. The bottom of the rack features a welded bracket in each corner with a hole for an anchor bolt, and a 10-32 threaded grounding stud.

The top of the rack includes a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing, and two black closure panels (3U, 7U) which can be replaced with optional 19" panels. The rack also offers abundant cable lacing points and generous wire management space of nearly 2" between front rails and front-to-rear rail supports.

The LSGR-4432 44U Seismic Gangable Rack is EIA/TIA compliant, RoHS compliant, and UL 2416 Listed in the U.S. and Canada. It ships with P.E. Certified documentation, ensuring you're investing in a product that meets the highest industry standards.
