Lowell Manufacturing LT2-830-T870-Vb 8" 20W 2x2 Ceiling Tile Loudspeaker, 70V, 0.8 cu.ft

SKU: LWLT28T870VB MFR: LT2-830-T870-VB
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this 8" ceiling tile loudspeaker, perfect for commercial spaces.
  • Enjoy wide sound dispersion from this 20W speaker, ensuring consistent audio coverage at 80 degrees.
  • This 70V speaker system offers easy installation, fitting seamlessly into standard 2x2 ceiling grids.
  • Achieve optimal sound quality with a frequency response of 57Hz-14kHz, ideal for clear voice and music.
  • Durable construction ensures long-lasting performance, making this an excellent commercial speaker investment.
  • Get exceptional value with this complete loudspeaker system, including driver, transformer, and grille.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LT2-830-T870-Vb Specifications

  • Driver Number

    CT830A

  • Speaker Size

    8" (20.32cm)

  • Power Rating

    20W

  • Driver Type

    Coaxial

  • Ceramic Magnet

    12 oz

  • Frequency Response

    57Hz-14kHz (+6dB)
    44Hz-20kHz (+7.6dB)

  • Dispersion at 2000Hz -6dB

    80 degrees conical

  • Voice Coil Impedance

    8 Ohms

  • Voice Coil Diameter

    1" (2.54cm)

  • Sensitivity (1W / 1M)

    97.0dB Avg

  • Maximum SPL

    110.0dB

  • Depth

    3.2" (8.13cm)

  • Weight

    2.4 lbs (1.09kg)

About Lowell Manufacturing LT2-830-T870-Vb

Enhance your audio experience with the LT2-830-T870-Vb 8" 20W 2x2 Ceiling Tile Loudspeaker. This high-quality, durable loudspeaker is designed by Lowell Manufacturing, a trusted name in the audio equipment industry. It's specifically engineered for suspended tile ceilings, offering a sleek and discreet installation option that seamlessly integrates into your space.

This efficient and reliable loudspeaker features a premium 8-inch coaxial driver, powered by a robust 70V transformer. The driver, CT830A, boasts a 20W power output and a 12 oz. magnet, ensuring a rich and clear sound. With a frequency response of 57Hz-14kHz (+/-6dB) and 44Hz-20kHz (+/-7.6dB), it covers a wide range of sound frequencies, delivering an immersive audio experience. The sensitivity of 97.0dB avg. measured at 1W/1M guarantees a powerful sound output.

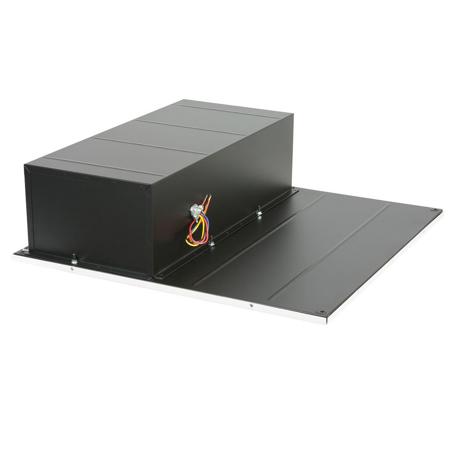

The LT2-830-T870-Vb 8" 20W 2x2 Ceiling Tile Loudspeaker also features a .8 cu.ft. volume backbox. This steel backbox is lined with 1.5-inch thick acoustic lining, enhancing the sound quality while reducing unwanted noise. The driver leads exit through a metal clamp, and the backbox is offset to fit around plenum obstructions, ensuring a smooth installation process.

The fine-perforation grille of this versatile loudspeaker provides maximum free-air space, promoting excellent sound transmission. It maintains an unobtrusive appearance in new or existing tile ceilings with its white color, blending seamlessly into your decor. The loudspeaker also includes restraint tabs for secure mounting, making it a practical and stylish addition to any space.

Lowell Manufacturing LT2-830-T870-Vb Features

  • High-quality 8-inch coaxial driver for superior sound experience
  • Robust 70V transformer for powerful audio output
  • Steel backbox with 1.5-inch thick acoustic lining for enhanced sound quality
  • Fine-perforation grille for excellent sound transmission and sleek appearance
  • Designed by Lowell Manufacturing, a trusted name in audio equipment
  • Discreet installation option for suspended tile ceilings, perfect for any decor

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior audio clarity with this 8" ceiling tile loudspeaker, perfect for commercial spaces.
  • Enjoy wide sound dispersion from this 20W speaker, ensuring consistent audio coverage at 80 degrees.
  • This 70V speaker system offers easy installation, fitting seamlessly into standard 2x2 ceiling grids.
  • Achieve optimal sound quality with a frequency response of 57Hz-14kHz, ideal for clear voice and music.
  • Durable construction ensures long-lasting performance, making this an excellent commercial speaker investment.
  • Get exceptional value with this complete loudspeaker system, including driver, transformer, and grille.

What's in the box:

  • Lowell Manufacturing CT830A 8 " Driver
  • Transformer
  • Volume Backbox (.8 cu.ft.)
  • Grille with Sub-Plate (2 x 2)
  • Mounting Aids
  • Lowell Manufacturing 1 Year Limited Warranty
