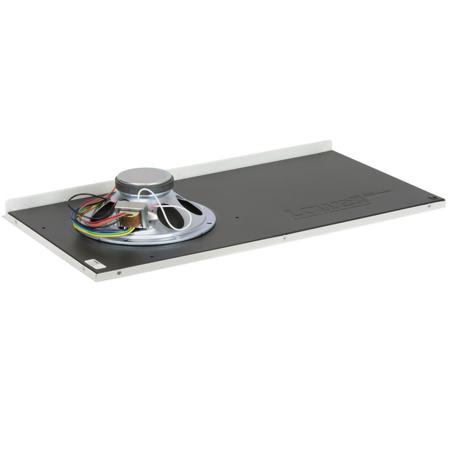

Lowell Manufacturing LT-810-72 8" 15W 1x2 Ceiling Tile Loudspeaker, 25V/70V

SKU: LWLT81072 MFR: LT-810-72
$110.88
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this 8" ceiling tile loudspeaker.
  • Enjoy wide, even sound dispersion at 2000Hz with its 95-degree conical coverage.
  • This durable speaker system is perfect for commercial audio applications.
  • With a 15W power rating, this speaker delivers clear and consistent audio.
  • Easy to install, this in-ceiling speaker enhances any presentation environment.
  • Its broad frequency response ensures rich, full sound for any audio solution.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LT-810-72 Specifications

  • Driver Number

    810

  • Speaker Size

    8" (20.32cm)

  • Power Rating

    15W

  • Driver Type

    Dual cone

  • Ceramic Magnet

    10 oz

  • Frequency Response

    54Hz-11.6kHz (+6dB)
    50Hz-20kHz (+6.6dB)

  • Dispersion at 2000Hz -6dB

    95 degrees conical

  • Voice Coil Impedance

    8 Ohms

  • Voice Coil Diameter

    1" (2.54cm)

  • Sensitivity (1W / 1M)

    97.9dB Avg

  • Maximum SPL

    109.7dB

  • Depth

    2.84" (7.21cm)

  • Weight

    2 lbs (0.91kg)

About Lowell Manufacturing LT-810-72

Because high-quality sound is essential in any setting, the LT-810-72 8" 15W 1x2 Ceiling Tile Loudspeaker, operating at 25V/70V, is designed to seamlessly integrate into suspended tile ceilings. This speaker boasts an 8-inch dual cone driver, ensuring a robust and clear audio output.

The speaker's patented 1x2 assembly, recognized by U.S. patents 7120269, D467579, 7643647, is designed with an integral T-bar that allows for quick replacement of half a non-tegular (2x2) ceiling tile. This unique feature ensures a smooth installation process and a discreet appearance, making it an ideal choice for both new and existing tile ceilings.

The LT-810-72 speaker is powered by a dual voltage 25V/70V transformer, with adjustable taps at .25, .5, 1, 2, 5W, offering flexibility to match your specific audio needs. The driver, labeled 810, is an 8" 15W dual cone driver equipped with a 10 oz. magnet. It delivers a frequency response of 54Hz-11.6kHz (+/-6dB) and 50Hz-20kHz (+/-6.6dB), with an average sensitivity of 97.9dB measured at 1W/1M. This ensures a wide range of sound, from deep bass to high treble, all delivered with exceptional clarity.

The speaker's fine-perforation grille not only provides an aesthetically pleasing appearance but also maximizes free-air space for excellent sound transmission. The white color of the grille blends seamlessly with most ceiling tiles, maintaining a clean and professional look.

For added convenience, the speaker comes with a patented integral T-bar that supports the adjacent non-tegular cut ceiling tile, and a restraint tab and hole for two-cable code compliance (cables not included). This ensures a secure installation and compliance with safety standards.

In conclusion, the LT-810-72 8" 15W 1x2 Ceiling Tile Loudspeaker, 25V/70V, is a high-performance, easy-to-install solution for your audio needs, delivering superior sound quality while maintaining a discreet and professional appearance.

Lowell Manufacturing LT-810-72 Features

  • High-performance 8" 15W 1x2 Ceiling Tile Loudspeaker, operating at 25V/70V for quality sound
  • Patented 1x2 assembly with integral T-bar for seamless integration into suspended tile ceilings
  • Dual voltage 25V/70V transformer with adjustable taps, offering versatile audio output
  • 8" 15W dual cone driver with wide frequency response for robust and clear sound
  • Fine-perforation grille for excellent sound transmission and an unobtrusive appearance
  • Patented integral T-bar and restraint tab for secure installation and two-cable code compliance

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior sound quality with this 8" ceiling tile loudspeaker.
  • Enjoy wide, even sound dispersion at 2000Hz with its 95-degree conical coverage.
  • This durable speaker system is perfect for commercial audio applications.
  • With a 15W power rating, this speaker delivers clear and consistent audio.
  • Easy to install, this in-ceiling speaker enhances any presentation environment.
  • Its broad frequency response ensures rich, full sound for any audio solution.

What's in the box:

  • Lowell Manufacturing 810 8 " Driver
  • TLM-572 Transformer
  • Grille with Subplate (1 x 2)
  • Mounting Aid
  • Lowell Manufacturing 1 Year Limited Warranty
