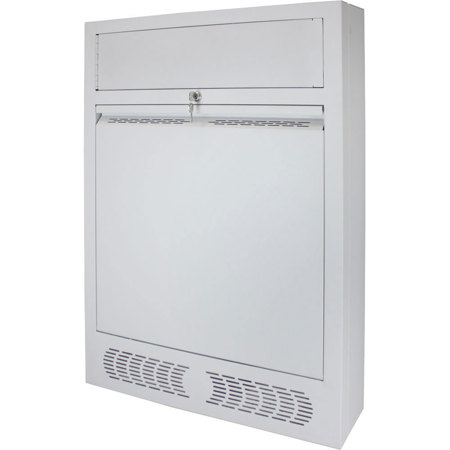

Lowell Manufacturing LTCR-3320S 3U + 3U Tilt-Out Surface-Mount Wall Rack with Dampers, Network Gray

SKU: LWLTCR3320S MFR: LTCR-3320S
Earn VIP Reward Points

Key Features

  • Optimize your space with this 6U wall rack, perfect for small network equipment setups.
  • This surface-mount rack enclosure is EIA/TIA compliant, ensuring top-notch reliability.
  • Easily access your equipment with the tilt-out design, simplifying cable management tasks.
  • With a 50 lbs capacity, this sturdy rack cabinet safely houses your essential devices.
  • Made with certified U.S. steel, this durable wall rack offers enhanced security for gear.
  • Install with ease using rear keyholes on 16" centers; a modular solution for any office.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LTCR-3320S Specifications

  • Rack Units

    3U (top) + 3U (main)

  • Mounting Type

    Surface

  • Load Capacity

    50 lbs (22.68kg)

  • Projection From Wall

    6.80" (17.27cm)

  • Compliance & Certification

    EIA/TIA compliant
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Installations

    Surface-mount
    Rear keyholes on 16" centers

  • Dimensions

    Rack (HxDxW): 34.06 x 6.80 x 25" (86.51 x 17.27 x 63.50cm)

  • UPC Code

    811405037610

About Lowell Manufacturing LTCR-3320S

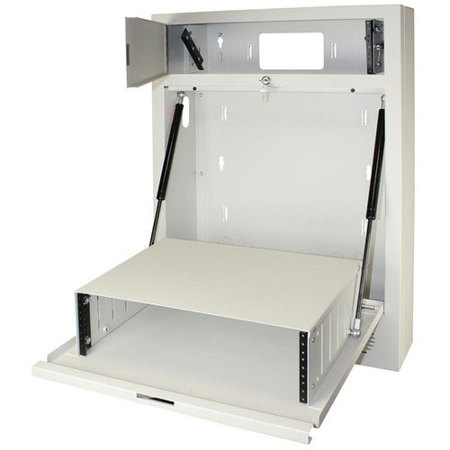

While the LTCR-3320S 3U + 3U Tilt-Out Surface-Mount Wall Rack with Dampers in Network Gray may appear simple, it's a versatile solution for securely housing 19"W equipment such as amplifiers, small mixers, PA systems, or other consumer electronics. This wall-mount rack features two distinct bays, each designed with a specific orientation in mind to maximize space and functionality.

The upper bay is engineered to mount a control panel or shallow equipment horizontally, accommodating devices up to 3U x 19"W x 4.3"D. It features 1 pair of 11-gauge steel 10-32 threaded rails on E.I.A. spacing, which pivot down for easier access to mounted devices. The pocket door of this bay swings open on a right hinge, providing easy access when needed.

The lower bay, on the other hand, is designed to hold equipment vertically, with space for devices up to 3U x 19"W x 15.3"D. The front door of this bay opens from the top, with oil-filled dampers controlling the rate of descent for smooth, controlled access. This bay also features 1 pair of 11-gauge steel 10-32 threaded rails on E.I.A. spacing, a removable shelf, and an integral formed handle for easy handling.

Constructed from a 16-gauge certified U.S. steel frame with an 18-gauge backbox and door, this wall rack is robust and durable. It's finished with a neutral Network Gray powder epoxy for a sleek, professional look. Both bays secure with a single key lock for added security, and an E.O. box is included in the base for convenient connection to AC power.

Cable management is a breeze with this wall rack, thanks to a 1" cable raceway on each side, multiple bridge lances, and rear openings that accommodate cables or wall obstructions. Combination EKOs for conduit in the top, bottom, and rear (1/2"-3/4", 1"-1-1/2") further enhance cable organization. The rack also includes pilot point screws with captive washers for quick and easy installation.

In summary, the LTCR-3320S 3U + 3U Tilt-Out Surface-Mount Wall Rack with Dampers in Network Gray is a versatile, secure, and professional solution for housing your essential electronics.

Lowell Manufacturing LTCR-3320S Features

  • 3U top compartment (horizontal hold) is ideal for a 19 in. panel. Hinge on door allows swing-open access. Fixed rails pivot down for easier access to cables
  • 3U main compartment (vertical hold) for equipment up to 5.25 in. x 15.3 in. x 19 in. Opens with dampers to control rate of descent. Includes fixed rails and a removable shelf
  • Both compartments secure with a single lock
  • Backbox with keyholes on 16 in. centers
  • Knockouts in top, bottom, rear
  • Vents at bottom and along integral formed handle
  • 1 in. cable raceway on each side
  • E.O. box in base
  • Load capacity 50 lbs
  • Network Gray finish

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your space with this 6U wall rack, perfect for small network equipment setups.
  • This surface-mount rack enclosure is EIA/TIA compliant, ensuring top-notch reliability.
  • Easily access your equipment with the tilt-out design, simplifying cable management tasks.
  • With a 50 lbs capacity, this sturdy rack cabinet safely houses your essential devices.
  • Made with certified U.S. steel, this durable wall rack offers enhanced security for gear.
  • Install with ease using rear keyholes on 16" centers; a modular solution for any office.

What's in the box:

  • Lowell Manufacturing LTCR-3320S 3U + 3U Tilt-Out Surface-Mount Wall Rack
  • Removable Shelf
  • Lowell Manufacturing 1 Year Limited Warranty
