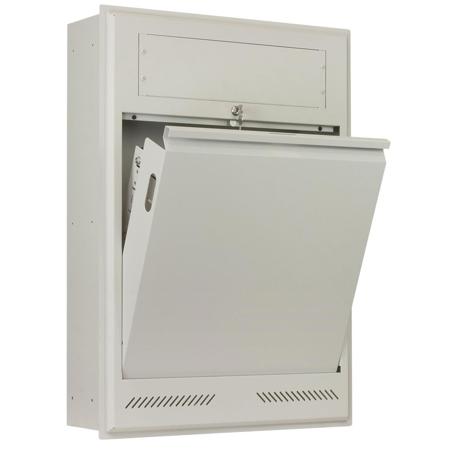

Lowell Manufacturing LTR-420R 4U Tilt-Out Recessed Wall Rack, 24x35x8", Gray

SKU: LWLTR420R MFR: LTR-420R
Earn VIP Reward Points

Key Features

  • Optimize your space with this 4U tilt-out wall rack, perfect for home office electronics.
  • This recessed rack enclosure is EIA/TIA compliant, ensuring top-notch security and reliability.
  • Enjoy easy cable management with removable 3U panel, keeping your setup tidy and professional.
  • Made with certified U.S. steel, this rack mount offers durability and long-lasting performance.
  • With a 100 lbs capacity, safely mount your equipment in this sturdy rack enclosure cabinet.
  • The tilt-out design provides accessibility for adjustments and maintenance of your equipment.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LTR-420R Specifications

  • Removable Panel

    Horizontal Mount: 3U

  • Tilt-out Bay

    Vertical Mount: 4U

  • Mounting Type

    Recessed

  • Construction

    Certified U.S. steel frame

  • Load Capacity

    100 lbs (45.36kg)

  • Compliance & Certification

    EIA/TIA compliant
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth

    First panel space max. 18", 2-4 spaces max. 20"

  • Dimensions

    Rack (HxDxW): 35 x 8.13 x 24.50" (88.90 x 20.65 x 62.23cm)
    Trim Plate (HxW): 36.20 x 25.70" (91.95 x 65.28cm)

  • UPC Code

    811405032554

About Lowell Manufacturing LTR-420R

Tilt-open wall-mount rack is ideal for 19"W amplifiers, small mixers, PA systems or consumer electronics, mounting equipment so it's stored vertically. Utilize the upper bay by removing the solid panel and replacing it with a control panel or accessories.

Construction
• Certified U.S. steel frame with beveled edges. Neutral Network Gray wrinkle powder epoxy finish

Tilt-out Bay (4U x 19"W x 20"D)
• Mounts equipment vertically. First space 18"D max., other spaces 20"D max
• To open, lift integral handle and lower main compartment to positive stop for equipment operation (12deg.) or servicing 105deg.)
• Adjustable Rails: 1 pair of 11-gauge steel 10-32 threaded rails on E.I.A. spacing
• Clamping bracket helps secure equipment
• Integral formed handle
• Vents in front and base
• Center key lock secures this bay
• Includes 1-gang E.O. box in base for convenient connection to AC power
• Includes DIN rail in base

Removable 3U Panel
• Remove the blank panel to utilize this space. This bay does not have a door, so it's ideal for quick access to a control panel
• Fixed Rails: 1 pair of 11-gauge steel 10-32 threaded rails on E.I.A. spacing

Cable Management
• Combination EKOs for conduit in top and base (1/2"-3/4", 1"-1-1/2")
• Multiple bridge lances
• Rear cutout accommodates wall obstructions

Hardware
• Pilot point screws with captive washers

Installation
• Ships ready to install
• Mounts on standard 16" centers
• For recessed installation in brick, concrete block or stud wall

Lowell Manufacturing LTR-420R Features

  • For recessed installation, this wall-mount rack features steel construction with beveled edges and Network Gray finish, vents in front and base and compound knockouts for cables (top and base)
  • Main compartment tilts open 20 degrees for equipment operation, 105 degrees for servicing. Includes integral handle, key lock, 1 pair adj. mounting rails and a clamping bracket to secure equipment. Factory-installed E.O. box and DIN rail in base
  • Removable 3U top panel for accessories
  • Pilot Point screws with captive washer
  • Load capacity 100 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your space with this 4U tilt-out wall rack, perfect for home office electronics.
  • This recessed rack enclosure is EIA/TIA compliant, ensuring top-notch security and reliability.
  • Enjoy easy cable management with removable 3U panel, keeping your setup tidy and professional.
  • Made with certified U.S. steel, this rack mount offers durability and long-lasting performance.
  • With a 100 lbs capacity, safely mount your equipment in this sturdy rack enclosure cabinet.
  • The tilt-out design provides accessibility for adjustments and maintenance of your equipment.

What's in the box:

  • Lowell Manufacturing LTR-420R 4U Tilt-Out Recessed Wall Rack
  • Removable 3U Top Panel
  • Lowell Manufacturing 1 Year Limited Warranty
