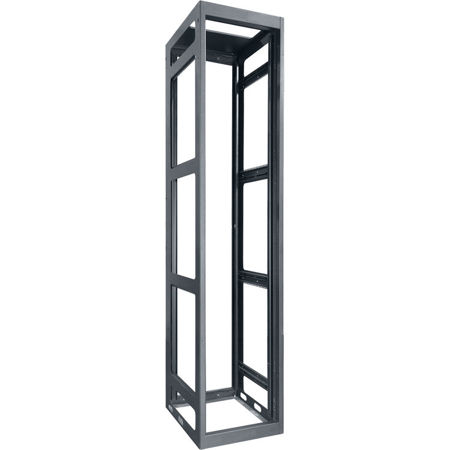

Lowell Manufacturing LGTR 54U 32" Depth Open Frame Gangable Tall Rack without Rear Door and 4x Adjustable Rails for Multi-Bay Cable Routing, Black

SKU: LWLTR5432LRD MFR: LGTR-5432-LRD
Earn VIP Reward Points

Key Features

  • Maximize your space with this 54U open frame rack, perfect for any home office setup.
  • Ensure top-notch cable management with adjustable rails for organized multi-bay routing.
  • This durable rack enclosure supports up to 3150lbs, ideal for heavy equipment.
  • Enjoy peace of mind with a UL 2416 Listed rack, ensuring safety and compliance.
  • Optimize airflow with the open frame design, keeping your valuable equipment cool.
  • Gangable design allows for easy expansion; add more rack units as your needs grow.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$399.99

3 Year

$599.99

4 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LGTR-5432-LRD Specifications

  • Construction

    16-gauge steel frame with 14-gauge steel top and 14-gauge steel bottom reinforced

  • Rack Units

    54U

  • Compliance & Certification

    EIA/TIA compliant
    UL 2416 Listed
    RoHS compliant
    Certified U.S. steel
    Made in Missouri, U.S.A.

  • Useable Depth and Height

    29.34 x 94.63" (745.24 x 2403.61mm)

  • Top Opening

    10U

  • Bottom Opening Depth and Width

    27.88 x 18.89" (708.15 x 479.81mm)

  • UL Listed Load Capacity

    3150lbs (1428.83kg)

  • Dimensions (WxDxH)

    22 x 32 x 100.63" (558.80 x 812.80 x 2556.01mm)

About Lowell Manufacturing LGTR-5432-LRD

From the renowned brand Lowell Manufacturing comes the LGTR 54U 32" Depth Open Frame Gangable Tall Rack, a reliable and versatile solution for your electronic equipment storage needs. This sturdy and durable rack is designed with a high-quality, fully welded 16-gauge steel frame, reinforced at all load-bearing junctions with 14-gauge steel for robust support. The strength of this rack is equivalent to that of 11-gauge steel, ensuring a secure and stable environment for your servers, routers, switches, and other networking devices.

The rack's black wrinkle powder epoxy finish not only enhances its aesthetic appeal but also adds to its durability. Its design features beveled edge corners at the front and rear, adding a touch of sophistication while maintaining functionality. The front frame nutserts are prepared to accommodate an optional surface-mount door, which can be ordered separately and can swing either to the left or right.

The rear of the rack includes a removable knockout panel in the frame, both above and below the door. It also features combination EKOs for conduit (1/2"- 3/4" and 1"-1-1/2") and KOs for wireless antennae (1/2"). The standard model comes with a recessed rear door with a key lock for added security.

The rack's sides are open access, with obround openings along the base for efficient cabling between racks. An optional side panel can be added, increasing the overall width by 1" per side. The top of the rack is configurable and features a 10U opening with riveted 10-32 threaded rails on 19" E.I.A. spacing. It includes two black closure panels (3U, 7U) that can be replaced with optional 19" panels for customization.

The bottom of the rack is open access and includes a 10-32 threaded grounding stud in the corner, 3/8"-16 threaded T-nuts for optional leg levelers, and holes for anchor bolts. The opening measures 27.88"D x 18.89"W. The rack also includes two pairs of fully adjustable 11-gauge steel 10-32 threaded rails on E.I.A. spacing with numbered RU increments, providing ample space for equipment placement and cable management.

This Lowell Manufacturing rack is EIA/TIA compliant, RoHS compliant, and UL 2416 listed in the U.S.A. and Canada, ensuring it meets the highest standards of quality and safety. Whether you're looking to organize a large number of devices or create a larger storage solution by combining it with other racks, this gangable tall rack is an excellent choice.

Lowell Manufacturing LGTR-5432-LRD Features

  • Configurable top has 10U opening for 19" panels. Solid closure panels included
  • Open sides
  • Open front (optional door)
  • Open back (optional door)
  • Two-pair fully adjustable rails tapped 10-32 with printed RU scale
  • Cable Management: Multiple lacing points, holes, knockout panels
  • Pilot Point screws with captive washers
  • Grounding stud
  • Threaded inserts (for optional leg levelers)
  • Beveled corners
  • Black wrinkle powder epoxy finish
  • Load capacity 3150 lbs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize your space with this 54U open frame rack, perfect for any home office setup.
  • Ensure top-notch cable management with adjustable rails for organized multi-bay routing.
  • This durable rack enclosure supports up to 3150lbs, ideal for heavy equipment.
  • Enjoy peace of mind with a UL 2416 Listed rack, ensuring safety and compliance.
  • Optimize airflow with the open frame design, keeping your valuable equipment cool.
  • Gangable design allows for easy expansion; add more rack units as your needs grow.

What's in the box:

  • Lowell Manufacturing LGTR 54U 32 " Depth Open Frame Gangable Tall Rack without Rear Door
  • 2x Black Closure Panel (3U/7U)
  • Grounding Stud
  • 4x 11-Gauge Steel Rails
  • Removable Knockout Panel
  • Panel Mounting Hardware
  • Lowell Manufacturing 1 Year Limited Warranty
