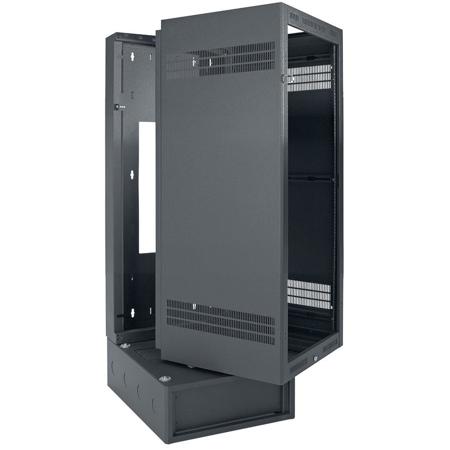

Lowell Manufacturing LWBR-2428 24U Wall Rack with Base and 1 Pair Adjustable Rails, 28" Depth, Black

SKU: LWLWBR2428 MFR: LWBR-2428
Earn VIP Reward Points

Key Features

  • Optimize your space with this 24U wall rack, perfect for home or office server equipment.
  • Heavy-duty rack enclosure supports up to 500 lbs, ensuring secure mounting for your devices.
  • Enjoy easy cable management with ample space behind equipment in this 28" deep cabinet.
  • Adjustable rails let you customize equipment placement within this versatile wall mount rack.
  • This secure rack cabinet protects your valuable network and A/V equipment from damage.
  • Get enhanced cooling with open design, ideal for keeping your servers running efficiently.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LWBR-2428 Specifications

  • Cabinet Space

    24U

  • Base Space

    4U

  • Cabinet top opening

    7U

  • Cabinet Rails (Adjustable)

    1 pair

  • Base rails (Fixed)

    1 pair

  • Load capacity

    500 lbs (226.80kg)

  • Usable Depth

    26" (66.04cm)

  • Dimensions (DxHxW)

    28.4 x 57.77 x 23.06" (72.14 x 146.74 x 58.57cm)

About Lowell Manufacturing LWBR-2428

Because organization and accessibility are key in any professional setting, the LWBR-2428 24U Wall Rack with Base and 1 Pair Adjustable Rails, 28" Depth, in a sleek black finish, offers a robust and efficient solution for your equipment storage needs.

This wall-mount rack is designed for convenience, swinging open effortlessly with a single-release grasp. It pivots smoothly on internal spring-loaded hinges and stainless steel ball transfers integrated into the base, enhancing load capacity by an additional 4U. The rack features a slam latch closure for secure storage and easy access.

Constructed from certified 16-gauge U.S. steel, the rack is welded for added strength and durability. It is coated in a black wrinkle powder epoxy finish, providing a professional aesthetic that complements any workspace. The design includes beveled corners for a refined look and added safety.

The backbox of the rack is designed with practicality in mind. It features a 4.69"D box that mounts on 16" centers, with an opening at the rear to accommodate wall obstructions. Multiple lacing points are included for efficient cable management. The sides and top of the backbox have upper and lower EKOs for conduit, with sizes ranging from 1/2" to 1-1/2". The top also includes KOs for wireless antennae, and a removable knockout panel for added versatility.

The cabinet section of the rack opens with a single-release mechanism and pivots open 90 degrees on the support base. The swing direction can be easily changed from right to left using the internal spring-loaded hinges. The top 7U opening has an integral EIA rail for optional 19" accessories, and vents are included in the sides and front for optimal airflow.

The rack comes with a pair of 11-gauge steel rails that are adjustable and recessed to allow clearance for equipment knobs and optional doors. The support base features stainless steel ball transfers for smooth pivoting of the loaded rack, and side EKOs for efficient cable management.

Installation requires a minimum clearance of 45.67" to allow a 90-degree swing, with an additional 1" required for an optional door. The rack comes with black pilot point screws with captive washers for quick and easy installation.

This wall rack is EIA/TIA compliant and RoHS compliant, ensuring it meets industry standards for safety and performance. With its robust construction and thoughtful design, the LWBR-2428 24U Wall Rack is a reliable choice for professional equipment storage.

Lowell Manufacturing LWBR-2428 Features

  • Cabinet with welded sides opens with a single-release grasp, then pivots smoothly on stainless steel ball transfers, swinging 90 degrees to access equipment connections (field-changeable to left hand swing). Slam latch closure
  • Top opening with integral E.I.A. rail accommodates standard 19 in. accessories or included solid closure panels
  • One pair adjustable mounting rails tapped 10-32
  • Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Removable knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit
  • Support base (4U) has access panels and stainless steel ball transfers to support cabinet
  • Black wrinkle powder epoxy finish
  • Pilot Point screws with captive washers

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your space with this 24U wall rack, perfect for home or office server equipment.
  • Heavy-duty rack enclosure supports up to 500 lbs, ensuring secure mounting for your devices.
  • Enjoy easy cable management with ample space behind equipment in this 28" deep cabinet.
  • Adjustable rails let you customize equipment placement within this versatile wall mount rack.
  • This secure rack cabinet protects your valuable network and A/V equipment from damage.
  • Get enhanced cooling with open design, ideal for keeping your servers running efficiently.

What's in the box:

  • Lowell Manufacturing LWBR-2428 24U Wall Rack with Base and 1 Pair Adjustable Rails
  • Lowell Manufacturing 1 Year Limited Warranty
