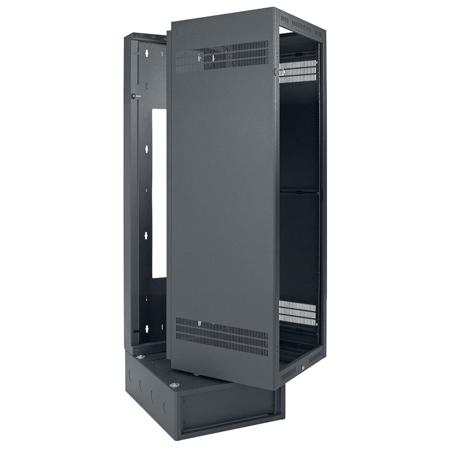

Lowell Manufacturing LWBR-3528 35U Wall Rack with Base and 1 Pair Adjustable Rails, 28" Depth, Black

SKU: LWLWBR3528 MFR: LWBR-3528
Earn VIP Reward Points

Key Features

  • Optimize your space with this 35U Wall Rack, perfect for home or office electronics!
  • Ensure top-notch security for your valuable equipment with this robust rack enclosure.
  • Enjoy easy cable management with this rack's smart design, keeping things tidy and efficient.
  • With adjustable rails, this rack enclosure offers modularity for diverse equipment needs.
  • This durable rack-mount workstation supports up to 500 lbs, ensuring long-lasting reliability.
  • Improve cooling for your devices; this rack enclosure promotes optimal airflow and performance.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing LWBR-3528 Specifications

  • Cabinet Space

    35U

  • Base Space

    4U

  • Cabinet top opening

    7U

  • Cabinet Rails (Adjustable)

    1 pair

  • Base rails (Fixed)

    1 pair

  • Load capacity

    500 lbs (226.80kg)

  • Usable Depth

    26" (66.04cm)

  • Dimensions (DxHxW)

    28.4 x 77.03 x 23.06" (72.14 x 195.66 x 58.57cm)

About Lowell Manufacturing LWBR-3528

Bring efficiency and organization to your workspace with the LWBR-3528 35U Wall Rack. This robust and reliable wall-mount rack is designed with adjustable rails, offering a versatile solution for mounting and storing various electronic equipment such as servers, routers, switches, and other network devices.

Constructed from welded 16-gauge certified U.S. steel, this sturdy rack is finished with a black wrinkle powder epoxy, ensuring durability and resistance to wear and tear. The rack's beveled corners add to its sleek design, while the backbox features a 4.69"D box that mounts on 16" centers, accommodating wall obstructions and providing multiple lacing points for easy cable management.

The rack's sides are equipped with upper and lower EKOs for 2-1/2" conduit, while the top features a removable knockout panel and combination EKOs for 1/2"-3/4" and 1"-1-1/2" conduit, as well as KOs for 1/2" wireless antennae. The back plane's embossed dimples and lacing points allow for flush installation of board-mounted accessories.

The cabinet section of the rack opens with a single-release mechanism and pivots open 90 degrees on a support base, facilitated by stainless steel ball transfers. The right-hand swing can be easily changed to left using internal spring-loaded hinges. The top 7U opening has an integral EIA rail for optional 19" accessories, and vents in the sides and front ensure proper ventilation.

The rack comes with one pair of 11-gauge steel rails that are recessed 0.63" to allow 1.38" clearance for equipment knobs and an optional door. These rails are adjustable, providing flexibility for equipment placement. The rack's depth is 23.53", and the support base includes side EKOs for cable management and a top access panel.

The LWBR-3528 35U Wall Rack is EIA/TIA compliant and RoHS compliant, ensuring it meets industry standards for safety and performance. With its high-quality construction and thoughtful design, this rack is an ideal solution for maintaining an organized and efficient workspace.

Lowell Manufacturing LWBR-3528 Features

  • Cabinet with welded sides opens with a single-release grasp, then pivots smoothly on stainless steel ball transfers, swinging 90 degrees to access equipment connections (field-changeable to left hand swing). Slam latch closure
  • Top opening with integral E.I.A. rail accommodates standard 19 in. accessories or included solid closure panels
  • One pair adjustable mounting rails tapped 10-32
  • Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Removable knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit
  • Support base (4U) has access panels and stainless steel ball transfers to support cabinet
  • Black wrinkle powder epoxy finish
  • Pilot Point screws with captive washers

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your space with this 35U Wall Rack, perfect for home or office electronics!
  • Ensure top-notch security for your valuable equipment with this robust rack enclosure.
  • Enjoy easy cable management with this rack's smart design, keeping things tidy and efficient.
  • With adjustable rails, this rack enclosure offers modularity for diverse equipment needs.
  • This durable rack-mount workstation supports up to 500 lbs, ensuring long-lasting reliability.
  • Improve cooling for your devices; this rack enclosure promotes optimal airflow and performance.

What's in the box:

  • Lowell Manufacturing LWBR-3528 35U Wall Rack with Base and 1 Pair Adjustable Rails
  • Lowell Manufacturing 1 Year Limited Warranty
