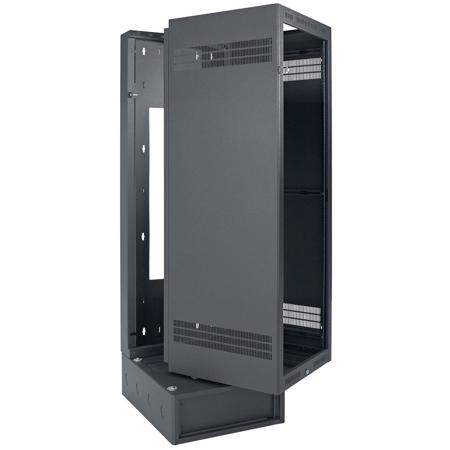

Lowell Manufacturing LWBR-3532 35U Wall Rack with Base and 1 Pair Adjustable Rails, 32" Depth, Black

It's essential for professionals to have a reliable and robust infrastructure to support their critical electronic equipment. The LWBR-3532 35U Wall Rack with Base and 1 Pair Adjustable Rails is a high-quality, durable solution designed to meet these needs with its 32" depth and sturdy construction. Crafted from welded 16-gauge certified U.S. steel, this wall-mount rack features a black wrinkle powder epoxy finish that not only adds to its durability but also provides a sleek, professional appearance with beveled corners for a refined look.

The rack's innovative design includes a single-release grasp that allows it to swing open effortlessly, pivoting smoothly on internal spring-loaded hinges and stainless steel ball transfers set into the base. This functionality not only enhances accessibility but also contributes an additional 4U to the rack's load capacity. The slam latch closure ensures secure and easy operation.

The backbox of the LWBR-3532 is engineered for convenience and versatility, with a 4.69" depth box that mounts on 16" centers. It includes an opening to accommodate wall obstructions and multiple lacing points for efficient cable management. The sides feature upper and lower EKOs for 2-1/2" conduit, while the top boasts a removable knockout panel and combination EKOs for various conduit sizes, plus knockouts for wireless antennae.

The cabinet section, or mounting area, opens with a single-release mechanism and pivots open 90 degrees on the support base. The right-hand swing can be easily changed to the left by adjusting the internal spring-loaded hinges. The top 10U opening includes an integral EIA rail for optional 19" accessories, such as fan panels and lights, and can be closed with solid panels if desired. Vents in the sides and front, along with a center key lock, allow for secure side-by-side installation.

Inside the cabinet, one pair of 11-gauge steel rails (35U, 10-32 threaded holes, numbered RU increments) are recessed 0.63" to provide 1.38" clearance for equipment knobs and optional doors. These rails are adjustable, offering the flexibility to accommodate various equipment sizes.

The support base is designed with stainless steel ball transfers to assist in the smooth pivoting of a loaded rack and includes side EKOs for additional cable management. The top access panel and a removable front access panel provide extra space (4U) for mounting equipment or accessories.

For installation, a minimum clearance of 49.67" is required to allow a 90-degree swing, with an additional 1" if an optional door is used. The rack comes with black pilot point screws with captive washers, facilitating quick and hassle-free installation.

Compliance with EIA/TIA and RoHS standards ensures that the LWBR-3532 35U Wall Rack is a reliable choice for organizing and protecting your valuable electronic devices in data centers or server rooms. Its adjustable features and robust construction make it a versatile and secure mounting solution for servers, networking equipment, and other electronic devices.
