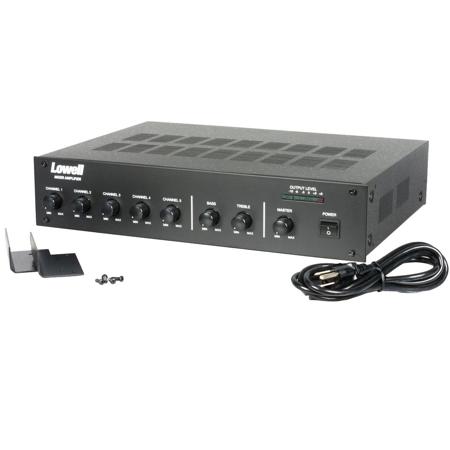

Lowell Manufacturing MA60 Rackmount Mixer with 60W Amplifier

SKU: LWMA60 MFR: MA60
Earn VIP Reward Points

Key Features

  • Experience clear sound with this 60W amplifier, perfect for small to medium venues.
  • This rackmount mixer amplifier features multiple input channels for versatile audio setups.
  • Easily control your audio with bass and treble EQ, optimizing your sound quality.
  • Ideal for PA systems, this mixer amplifier delivers reliable power output for your events.
  • Enjoy flexible connectivity with RCA, XLR, and screw terminal inputs on this amplifier.
  • This portable amplifier with mixer is great for bands, DJs, and public address needs.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing MA60 Specifications

  • AC Supply Voltage

    115 or 230 VAC (rear panel switchable); +/-10%, 60Hz

  • DC Supply Voltage

    24 VDC (Max. 10% deviation)

  • Power Consumption

    150W (AC) 5A (DC)

  • Speaker Level Outputs

    Screw terminal strip, 4 Ohms, 8 Ohms, 25V, 70V (60W RMS)

  • Tape Outputs

    Dual parallel RCA-phono jacks, 1V at 4.7k Ohms

  • Preamp ("Pre") Outputs

    Dual parallel RCA-phono jacks, 1V at 600 Ohms

  • Unswitched AC Outlet

    500W maximum

  • MIC Inputs 1-5

    XLR receptacle or screw terminals, 1mV at 600 Ohms balanced

  • AUX Inputs 1-6

    Dual parallel RCA-phono jacks, stereo converted to mono, 150mV at 22k Ohms

  • Telephone Input 7

    Screw terminal strip, 150mV at 600 Ohms balanced

  • Power Amp In

    RCA-phone jack, 1V at 8k ohms

  • Frequency Response

    50Hz - 20kHz +/-3dB (Test signal inserted at AUX input)

  • Total Harmonic Distortion

    Less than 1% at 1kHz at rated power

  • Signal to Noise Ratio

    80dB (Test signal inserted at AUX 6 input)
    60dB (Test signal inserted at MIC 1 input)

  • Tone Controls

    Bass +/-10dB at 100Hz, Treble +/-10dB at 10kHz

  • Phantom Power

    16VDC, shipped from factory with internal phantom power jumpers set "ON" for channels 1-5. To defeat phantom power, remove cover and set jumpter to "OFF".
    Channel-1: see jumper JP1, Channel-2: see jumper JP2, Channel-3: see jumper JP3, Channel-4: see jumper JP4, Channel-5: see jumper JP5.

  • Priority Muting

    Three levels of priority

  • Dimensions (HxWxD)

    3.5 x 17 x 13.5" (8.89 x 43.18 x 34.29cm)

  • Weight

    17 lbs (7.71kg)

About Lowell Manufacturing MA60

You'll experience superior sound control with the MA60 Rackmount Mixer, equipped with a robust 60W amplifier. This high-performance audio equipment is versatile, offering power options via switchable 115 or 230 VAC at 50/60Hz, or alternatively, 24VDC.

The MA60 Rackmount Mixer stands out in the audio equipment market with its five-channel volume controls. These controls allow for precise sound customization, ensuring that each audio output is tailored to your specific needs. The treble and bass controls further enhance your ability to fine-tune your sound, providing a rich, balanced audio experience.

In addition to its detailed sound control features, the MA60 Rackmount Mixer also includes a master volume control. This feature allows for overall sound management, making it an ideal choice for both professional and home audio setups.

The main power switch ensures easy operation, while the LED display bank provides a clear visual of the output level. This makes monitoring and adjusting your sound levels a breeze.

In summary, the MA60 Rackmount Mixer with 60W Amplifier is a high-quality, versatile piece of audio equipment designed for precise sound control and ease of use. Whether you're a professional sound engineer or an audio enthusiast, this rackmount mixer offers the features and performance you need for optimal audio output.

Lowell Manufacturing MA60 Features

  • Five input channels, switchable from XLR mic connector to AUX input dual combining RCA-phono connectors
  • Includes 4W, 8W, 25V and 70V speaker outputs at a screw terminal strip
  • AUX-6 input channel with dual combining RCA phono connectors and rear level control
  • Main AC input protected by circuit breaker on rear panel
  • Un-switched (always on) AC outlet in rear is protected by separate circuit breaker
  • Mic-1 mutes channels 3-6
  • Separate telephone input with level control in rear mutes all other inputs
  • Dual RCA/phono parallel tape-out connectors and dual RCA-phono parallel PRE-OUT (preamp out) connectors in rear
  • Chassis-ground termination screw in rear
  • 19" E.I.A. rackmount chassis (17" x 13.5" x 3.5")

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience clear sound with this 60W amplifier, perfect for small to medium venues.
  • This rackmount mixer amplifier features multiple input channels for versatile audio setups.
  • Easily control your audio with bass and treble EQ, optimizing your sound quality.
  • Ideal for PA systems, this mixer amplifier delivers reliable power output for your events.
  • Enjoy flexible connectivity with RCA, XLR, and screw terminal inputs on this amplifier.
  • This portable amplifier with mixer is great for bands, DJs, and public address needs.

What's in the box:

  • Lowell Manufacturing MA60 Rackmount Mixer with 60W Amplifier
  • Rack Mounting Brackets
  • Lowell Manufacturing 1 Year Limited Warranty
