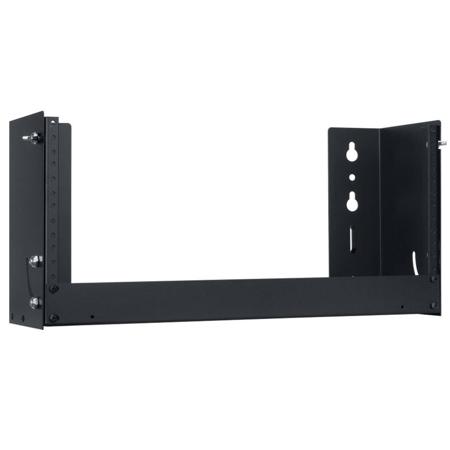

Lowell Manufacturing PFR-46 4U Pivot-Frame Wall Rack, 6" Deep, 1 Pair Fixed Rails, Supports 30 Lbs, Black

SKU: LWPFR46 MFR: PFR-46
$167.20
Earn VIP Reward Points

Key Features

  • Optimize your space with this 4U pivot-frame wall rack, perfect for small home office setups.
  • Easily manage cables using the integral tie loop points on the bottom and rear of this rack.
  • This durable rack enclosure features solid steel sides for enhanced equipment security.
  • Enjoy quick installation with included black pilot point screws and captive washers.
  • Maintain easy access with the 90-degree pivot-down front frame on this rack mount.
  • Ensure proper cooling with open top and bottom access in this compact rack enclosure.
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing PFR-46 Specifications

  • Sides

    Solid 16-gauge steel sides

  • Bottom

    Open access

  • Top

    Open access

  • Cable Management

    Integral tie loop points on bottom and rear

  • Rack Rails

    4U (fixed position):
    One pair of 11-gauge steel 10-32 threaded rails on E.I.A. spacing. Black finish

  • Hardware

    Black pilot point screws with captive washers for quick installation

  • Compliance

    EIA/TIA compliant. RoHS compliant

  • Load Capacity

    30 lbs (13.61kg)

  • Front Frame Pivot Down

    90 degrees

  • Rack Space

    4U

  • Useable Depth

    5.97" (15.16cm)

  • Dimensions (HxWxD)

    Overall: 9.25 x 19.30 x 6.00" (23.50 x 49.02 x 15.24cm)

About Lowell Manufacturing PFR-46

The PFR-46 4U Pivot-Frame Wall Rack is a robust and reliable solution for organizing and securing your networking equipment. This versatile wall rack is designed to hold a variety of voice/data equipment, including patch panels, routers, hubs, and network switches. The hinged panel mounting frame pivots down 90 degrees, with a built-in absolute stop, offering convenient rear access to your equipment for punch-down interconnects when in the fully open position.

Constructed from heavy gauge, certified U.S. steel, this sturdy wall rack boasts a 16-gauge frame finished in a black semi-gloss powder epoxy for enhanced durability. The solid sides and open base design provide integral tie loop points for cinch straps or wire ties, ensuring your equipment stays secure and organized.

The PFR-46 4U Pivot-Frame Wall Rack features one pair of fixed position mounting rails, tapped 10-32, that can be adjusted to accommodate different equipment sizes. The rack comes with pilot point rack screws and has a load capacity of up to 30 lbs, making it an excellent choice for both lightweight and heavier equipment.

Designed for easy assembly and installation, this wall rack mounts on standard 16" centers. The open rear design allows for positioning over and around existing wall obstructions, making it a practical and space-saving solution for any networking environment. With its high-quality construction and functional design, the PFR-46 4U Pivot-Frame Wall Rack is a durable and versatile addition to your networking setup.

Lowell Manufacturing PFR-46 Features

  • Heavy gauge steel
  • Integral tie loop points for cinch straps or wire ties
  • Open base
  • Solid sides
  • One pair fixed-position mounting rails, tapped 10-32
  • Black semi-gloss powder epoxy finish
  • Pilot Point rack screws

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your space with this 4U pivot-frame wall rack, perfect for small home office setups.
  • Easily manage cables using the integral tie loop points on the bottom and rear of this rack.
  • This durable rack enclosure features solid steel sides for enhanced equipment security.
  • Enjoy quick installation with included black pilot point screws and captive washers.
  • Maintain easy access with the 90-degree pivot-down front frame on this rack mount.
  • Ensure proper cooling with open top and bottom access in this compact rack enclosure.

What's in the box:

  • Lowell Manufacturing PFR-46 4U Pivot-Frame Wall Rack
  • Lowell Manufacturing 1 Year Limited Warranty
