Lowell Manufacturing RCCD-4636 Remote Consolidation Wall Mount Cabinet with Deep Door and Flip Top, 4U + 6U, 30"D Usable, Network Gray

SKU: LWRCCD4636 MFR: RCCD-4636
Earn VIP Reward Points

Key Features

  • Optimize your network setup with this 10U wall mount cabinet, perfect for small spaces.
  • This rack enclosure features adjustable rails, so you can customize your equipment layout.
  • Ensure equipment security with this durable wall mount cabinet, built to last for years.
  • Enjoy easy cable management with the flip-top design of this network gray rack enclosure.
  • Maximize airflow with this cabinet's design, keeping your valuable equipment cool and safe.
  • Benefit from a 150 lbs load capacity, ideal for a variety of rack mount equipment needs.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Lowell Manufacturing RCCD-4636 Specifications

  • Upper Bay

    Horizontal-Mount (Usable): 4U x 19 x 4.97" (4U x 48.26 x 12.62cm)

  • Lower Bay

    Vertical Mount (Usable): 6U x 19 x 30.2" (6U x 48.26 x 76.71cm)

  • Upper Rails

    1 Pair (pivoting)

  • Lower Rails

    1 Pair (adjustable)

  • Load Capacity

    150 lbs (68.04kg)

  • Compliance & Certification

    EIA/TIA compliant
    Certified U.S. steel
    Made in Missouri, U.S.A

  • Dimensions (HxWxD)

    Overall: 36 x 25.5 x 11.19" (91.44 x 64.77 x 28.42cm)
    Note: Depth with Door

About Lowell Manufacturing RCCD-4636

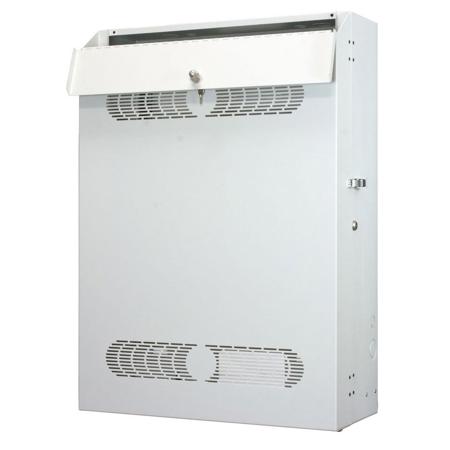

Low profile wall cabinet secures 19" E.I.A. network equipment with minimal intrusion into room, maximizing space with two mounting bays. Includes deep front door which contributes to overall cabinet depth of 11.187".

Construction
Made in the U.S.A. with 16-gauge certified U.S. steel. Network Gray finish

Upper Bay (horizontal-mount)
4U x 19"W (4.97" usable depth). One pair pivoting rails allows easy access to cables; secures with wing nuts. Ideal place for a shallow patch panel.

Lower Bay (vertical-mount)
6U x 19"W (30.2" usable depth). One pair adjustable rails. Ideal for a hub, server or similar active equipment.

Front
Deep front door with vents, beveled edges and hinged top that permits access to upper bay without opening main compartment. Top/side key locks. Door is reversible (left or right-hand swing).

Rear
Cabinet mounts on standard 16 inch centers and features large 4" x 7" cutouts to fit over wall obstructions. Multiple bridge lances for cable management. Sides: Combination EKOs for conduit (1/2"-3/4" and 1"-1-1/2"). Draw latch and key lock.

Bottom
Combination EKOs for conduit (1/2"-3/4"). Electrical box in base. Vents will accept optional single fan kit.

Top
Combination EKOs for conduit (1/2"-3/4" and 1"-1-1/2").

Cable Management
Multiple bridge lances in rear. Knockouts in top, bottom and sides.

Dual-Punch Rails
11-gauge steel rails with black finish have 10-32 threaded holes (for use with included screws) plus square holes (for use with alternate hardware-12-24 or 6mm screws, not included).

Compliance
EIA/TIA compliant. RoHS compliant.

Lowell Manufacturing RCCD-4636 Features

  • 16-gauge steel construction with rear cutouts to fit over wall obstructions and aid cable management
  • 11-gauge rails in the 4U top section accommodate (horizontally-mounted) panel, such as a shallow patch panel. Rails, tapped 10-32, pivot down for access
  • 11-gauge rails in the 6U bottom section vertically-mount 19" equipment. Rails, tapped 10-32, can be adjusted (vertically) to accommodate equipment up to 30.2"D
  • Deep door features beveled edges, vents and sloped top with hinge for quick access to top section without opening main compartment. Key lock
  • Knockouts in top, base, side
  • Multiple bridge lances
  • Vents in base accommodate (optional) single fan kits
  • Includes electrical box in base
  • Side key lock
  • Network Gray powder epoxy finish

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Optimize your network setup with this 10U wall mount cabinet, perfect for small spaces.
  • This rack enclosure features adjustable rails, so you can customize your equipment layout.
  • Ensure equipment security with this durable wall mount cabinet, built to last for years.
  • Enjoy easy cable management with the flip-top design of this network gray rack enclosure.
  • Maximize airflow with this cabinet's design, keeping your valuable equipment cool and safe.
  • Benefit from a 150 lbs load capacity, ideal for a variety of rack mount equipment needs.

What's in the box:

  • Lowell Manufacturing RCCD-4636 Remote Consolidation Wall Mount Cabinet
  • Screws
  • Lowell Manufacturing 1 Year Limited Warranty
